12 Security lock port

13 Speaker

14 Remote receiver

15 Network (LAN) port (PowerLite 93/95/96W/905/915W/1835)

16 USB TypeA port

17 USB TypeB port

18 Computer2 port

19 Computer1 port

Parent topic: Projector Parts Locations

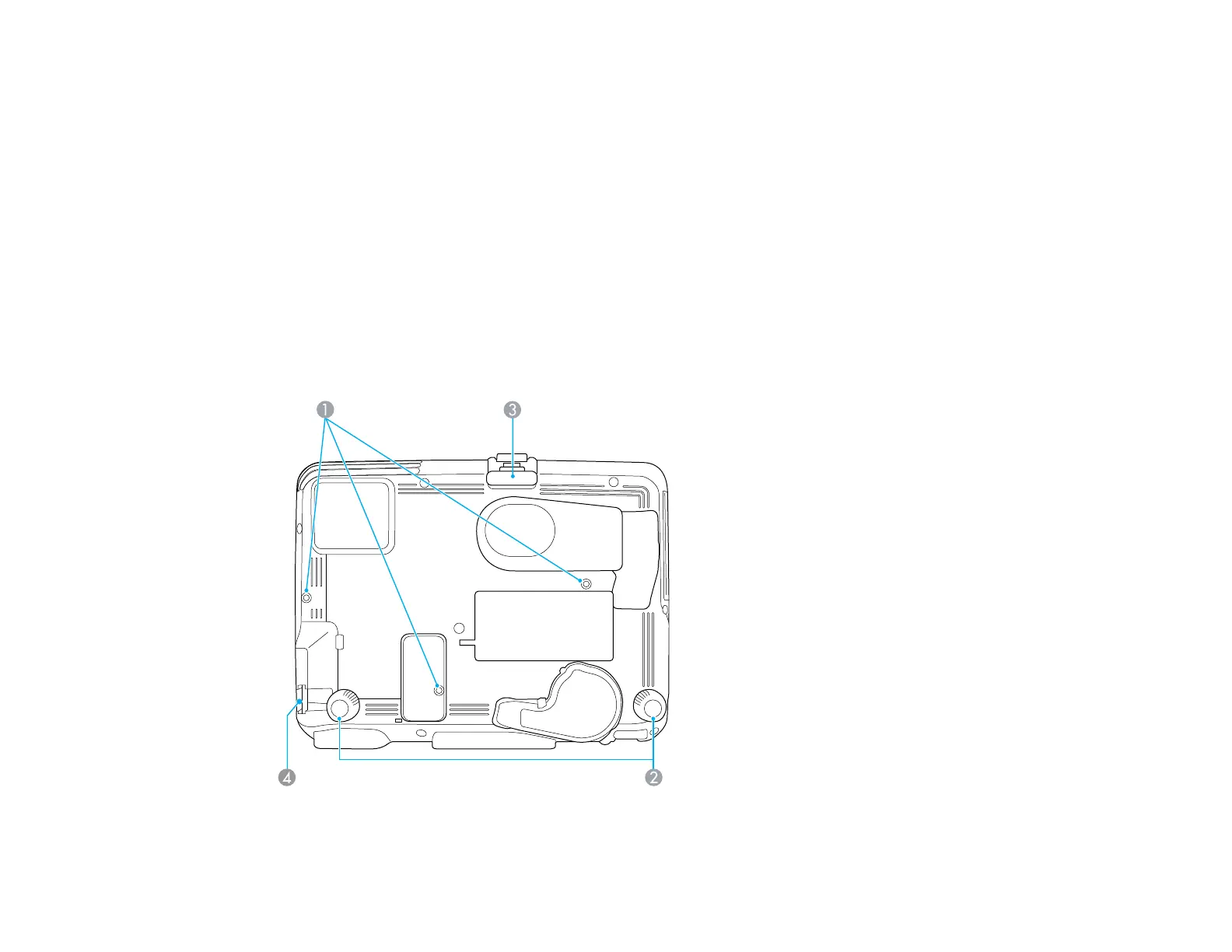

Projector Parts - Base
