Epson PowerLite Pro G6170 - Projector Parts - Control Panel

1 Front adjustable foot
2 Rear feet
3 Screw holes for cable cover
4 Security cable attachment point
5 Mounting bracket holes
6 Screw hole for lens unit release button
Parent topic: Projector Part Locations

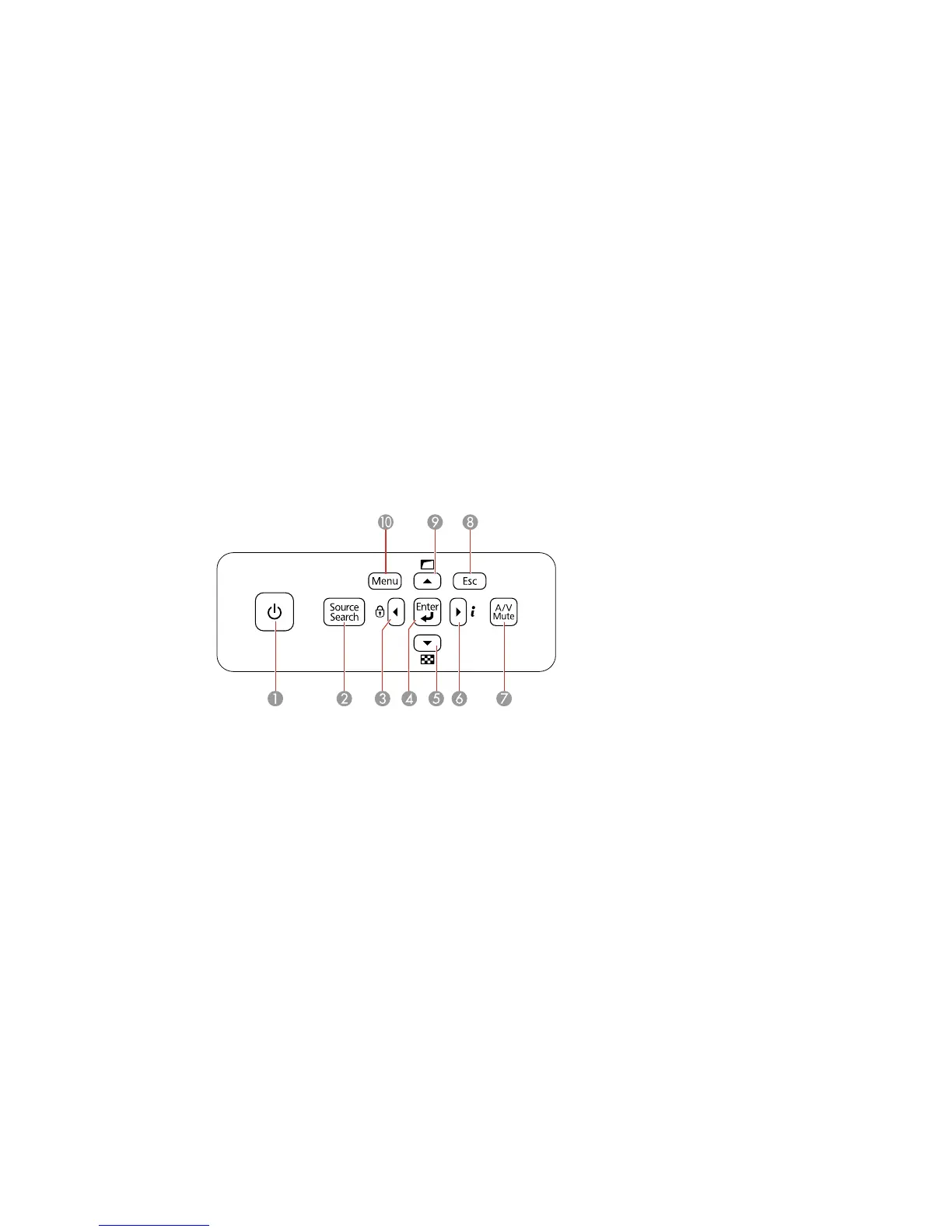

Projector Parts - Control Panel
1 Power button
2 Source Search button (searches for connected sources)
3 Left arrow button and displays the Control Panel Lock screen
4 Enter button (selects options and optimizes screen image when projecting an RGB signal from
the Computer or BNC ports)
5 Down arrow button and displays a test pattern
6 Right arrow button and displays the Info menu
7 A/V Mute button (turns the video and audio on or off)
