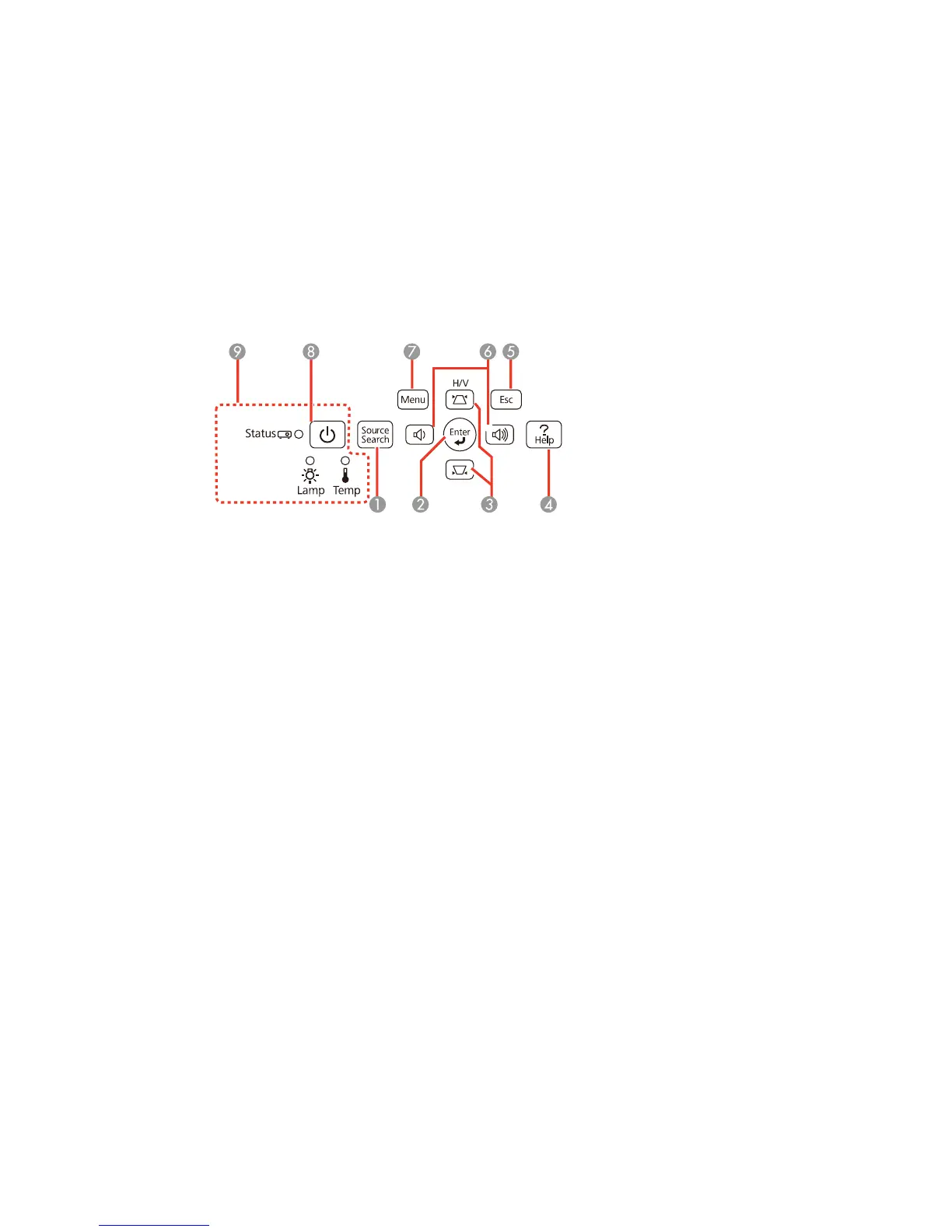

Projector Parts - Control Panel
1 Source Search button (searches for connected sources)
2 Enter button (selects options)
3 Vertical keystone adjustment buttons (adjust screen shape) and arrow buttons
4 Help button (accesses projector help information)
5 Esc button (cancels/exits functions)
6 Volume control buttons, horizontal keystone adjustment buttons (adjusts screen shape), and
arrow buttons; on the PowerLite S27, these buttons are labelled Wide and Tele and adjust the
projected image size, rather than the audio volume
7 Menu button (accesses projector menu system)
8 Power button and light
9 Status, Lamp, and Temp (Temperature) lights
Parent topic: Projector Part Locations
Related references
Projector Light Status
