Epson SC-S80600 Series - Inside; Back

Inside

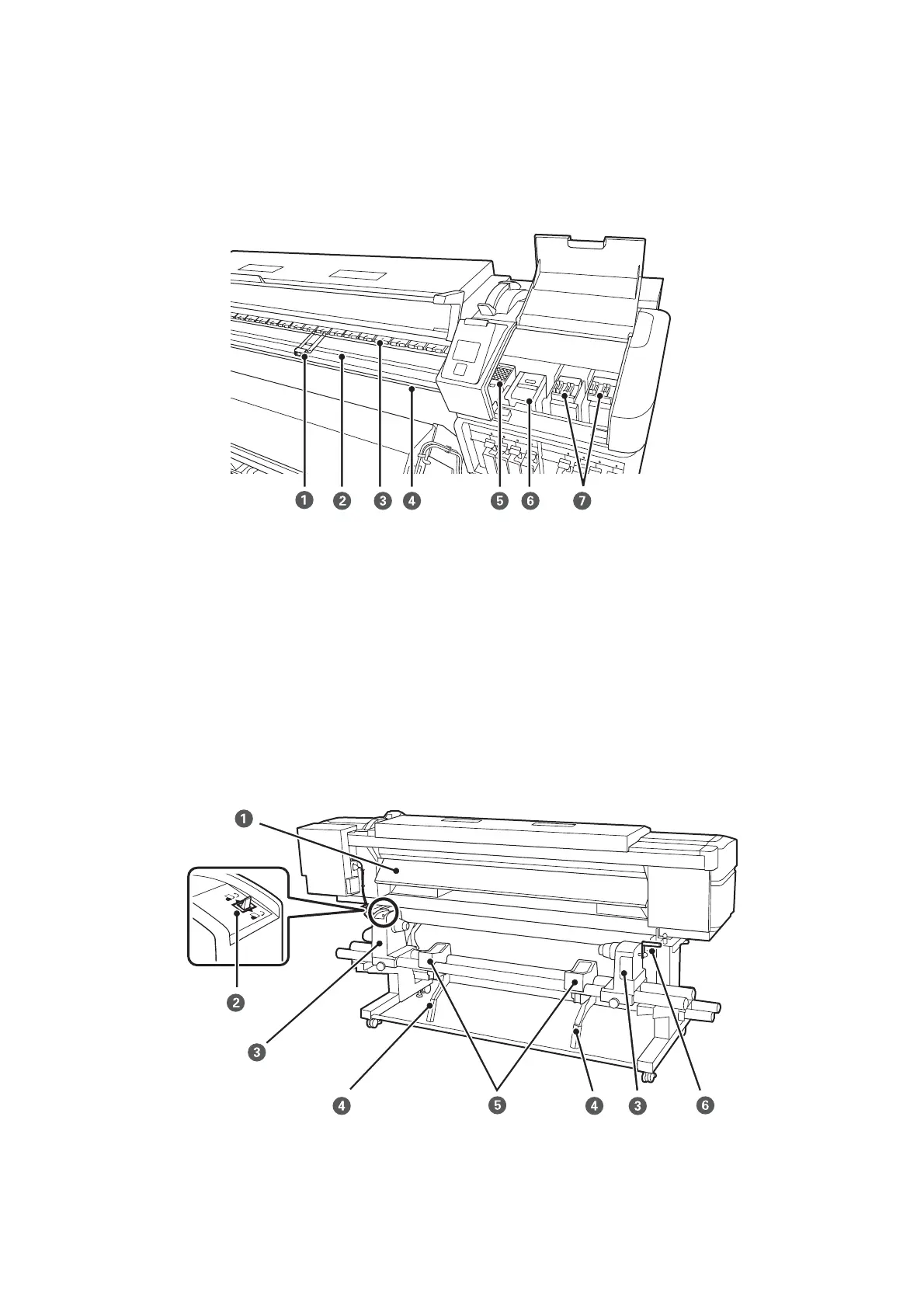

The illustration shows the SC-S60600 Series.
A Media edge plates (x2) D Cutter groove G
Caps
*1
B Platen heater E Flushing pad
C Pressure rollers F Wiper unit
*1 Only on the right for the SC-S40600 Series.
Back
A Pre-heater C Roll holders left/right E Roll supports (x2)
B Drive switch D Lift lever (x2) F Handle
