Epson Stylus Photo PX700FW User Manual

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
111
Confidential
4.2.2.9 Rear ASF Paper Guide Cover
Parts/Components need to be removed in advance:
None
Removal procedure
1. Release the hook (x1) and remove the Rear ASF Paper Guide Cover.

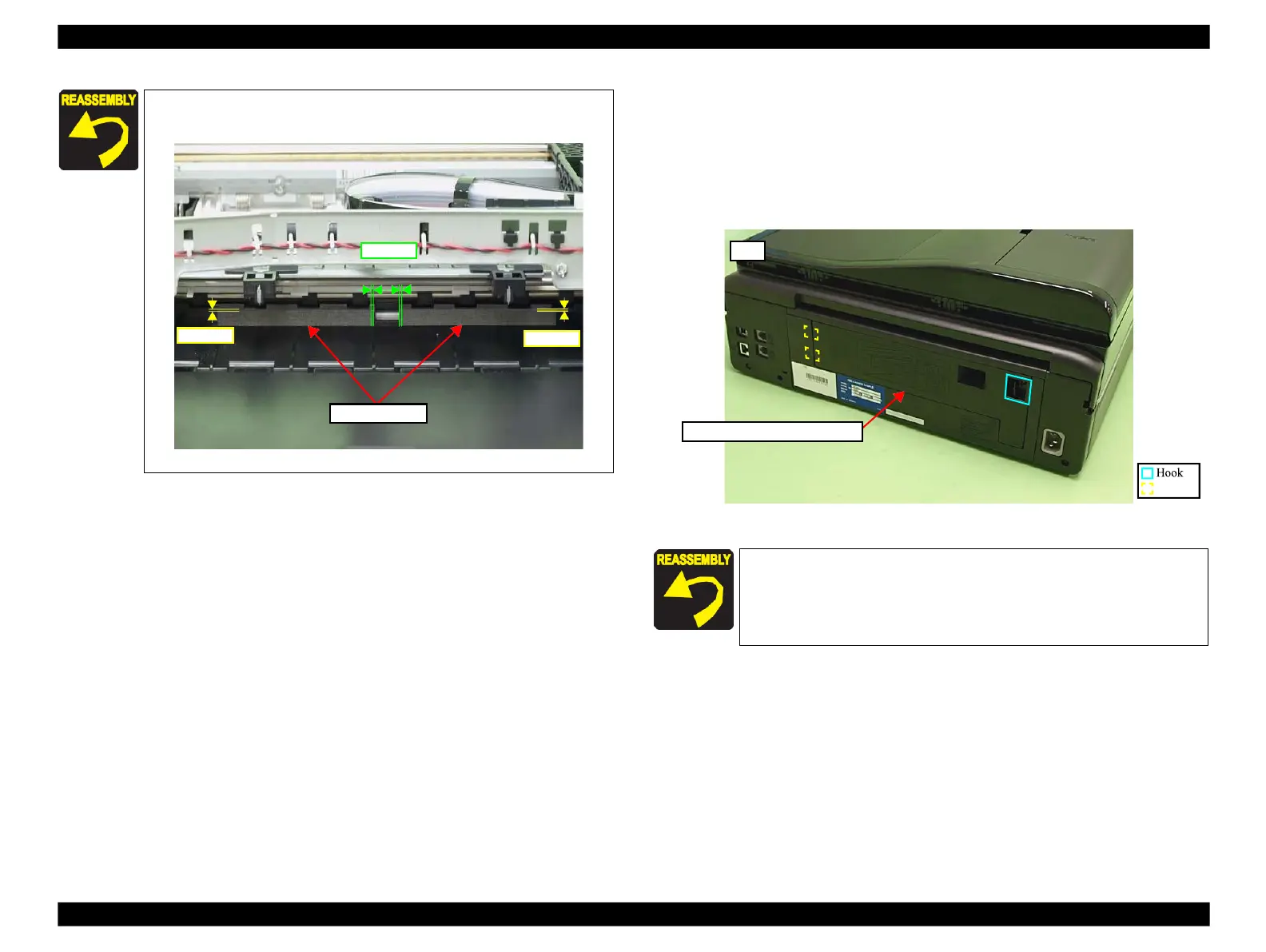

Figure 4-25. Removing the Rear ASF Paper Guide Cover
Make sure that the antistatic seals (x2) on the bottom of the Stacker
Assy are correctly attached.
Figure 4-24. Attachment position of the antistatic seal
Antistatic seals
0-1 mm
0-1 mm
0-2 mm
Rib
Rear ASF Paper Guide Cover
Rear
Insert the ribs (x2) of the Rear ASF Paper Guide Cover to the inside
of the Housing, and secure it with the hook (x1).
