Epson Stylus Photo PX700FW User Manual

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
DISASSEMBLY/ASSEMBLY
Disassembly Procedures
https://www.manualsbooks.com
150
Confidential

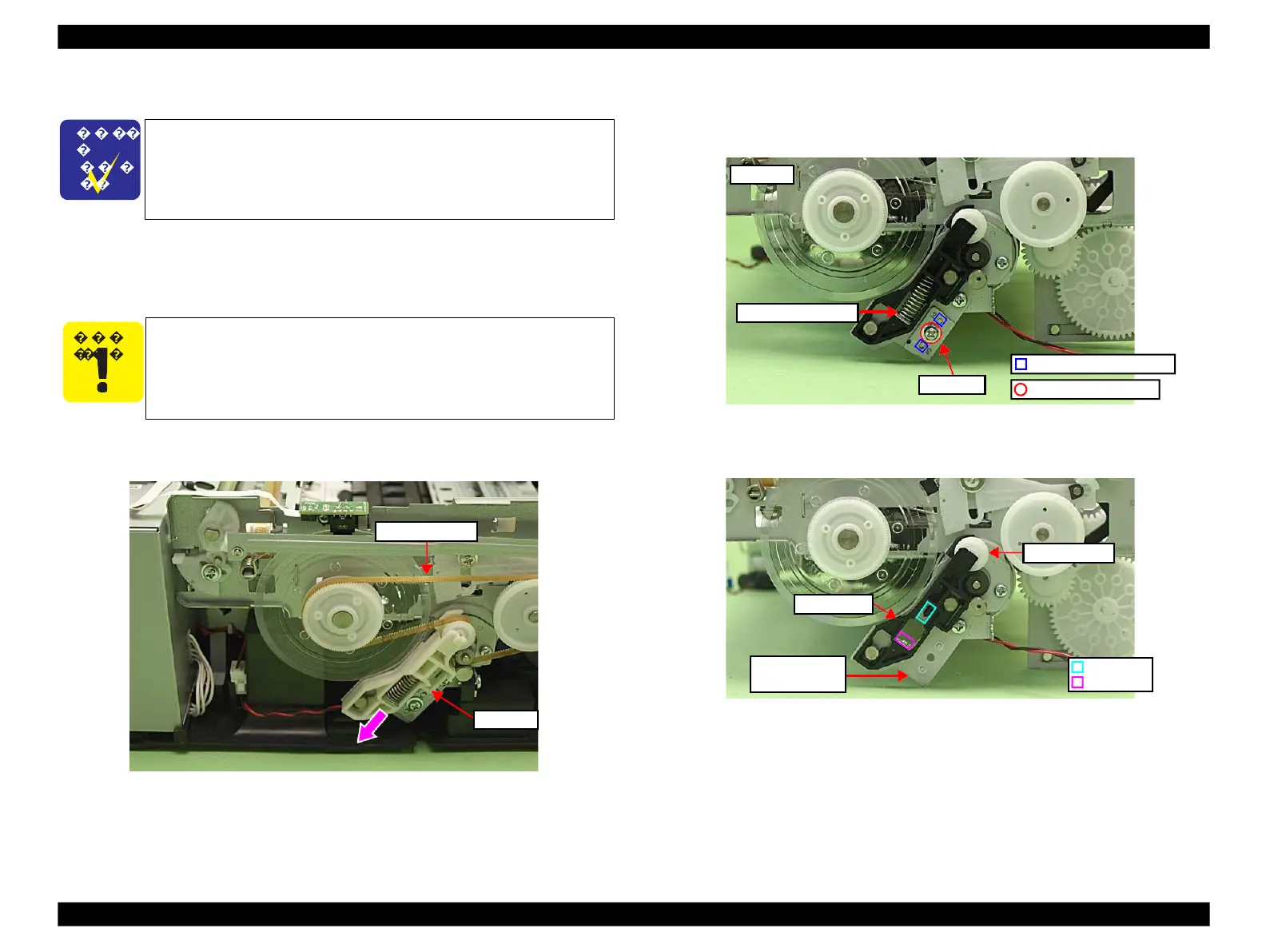

4.2.4.14 PF Motor
Parts/Components need to be removed in advance:
Main Frame
Removal procedure
1. Push the Tensioner in the direction of the arrow and remove the PF Timing
Belt.
Figure 4-117. Removing the PF Timing Belt
2. Remove the screw (x1) that secures the Spacer, and remove the Spacer. (See
Fig. 4-118.)
3. Remove the Compression Spring.
Figure 4-118. Removing the PF Motor (1)
4. Remove the Tensioner together with the Driven Pulley.
Figure 4-119. Removing the PF Motor (2)
The Main Frame becomes unstable once it is removed from the
Base Frame. Be careful not to deform the frame during
performing the following procedures.
◼ Refer to 4.2.4.11 Main Frame (p144) for the Parts/Components
need to be removed before removing the Main Frame.
Be careful not to touch the PF Scale with bare hands.
Be careful not to damage or contaminate the PF Scale.
Be careful not to lose the Driven Pulley Shaft.
Tensioner
PF Timing Belt
C.C.S. 3x6 (9±1Kgfcm)
Positioning hole & dowel
Compression Spring
Spacer
Left side
Tension Holder
reinforcing plate
Dowel
Protrusion
Tensioner
Driven Pulley
