Epson Stylus Photo PX700FW - Page 273

Epson Artisan 800/Epson Stylus Photo PX800FW/TX800FW/Epson Artisan 700/Epson Stylus Photo PX700W/TX700W
Revision C
Confidential
取付板右
Main Frame
1
2
2
1
1
Application Point
Main Frame
Application Point
<Lubrication Points>
Contact points between the
Main Frame and the fixing
plate R. (Three hooks)
2. Contact points between the
Main Frame and the fixing
plate R. (Two dowels)
<Type>
G-71
<Application Amount>
1. 3 x sufficient quantity
2. 1 x sufficient quantity
<Application Timing>
Before installing the fixing plate
R.
<Remarks>
Apply with injector

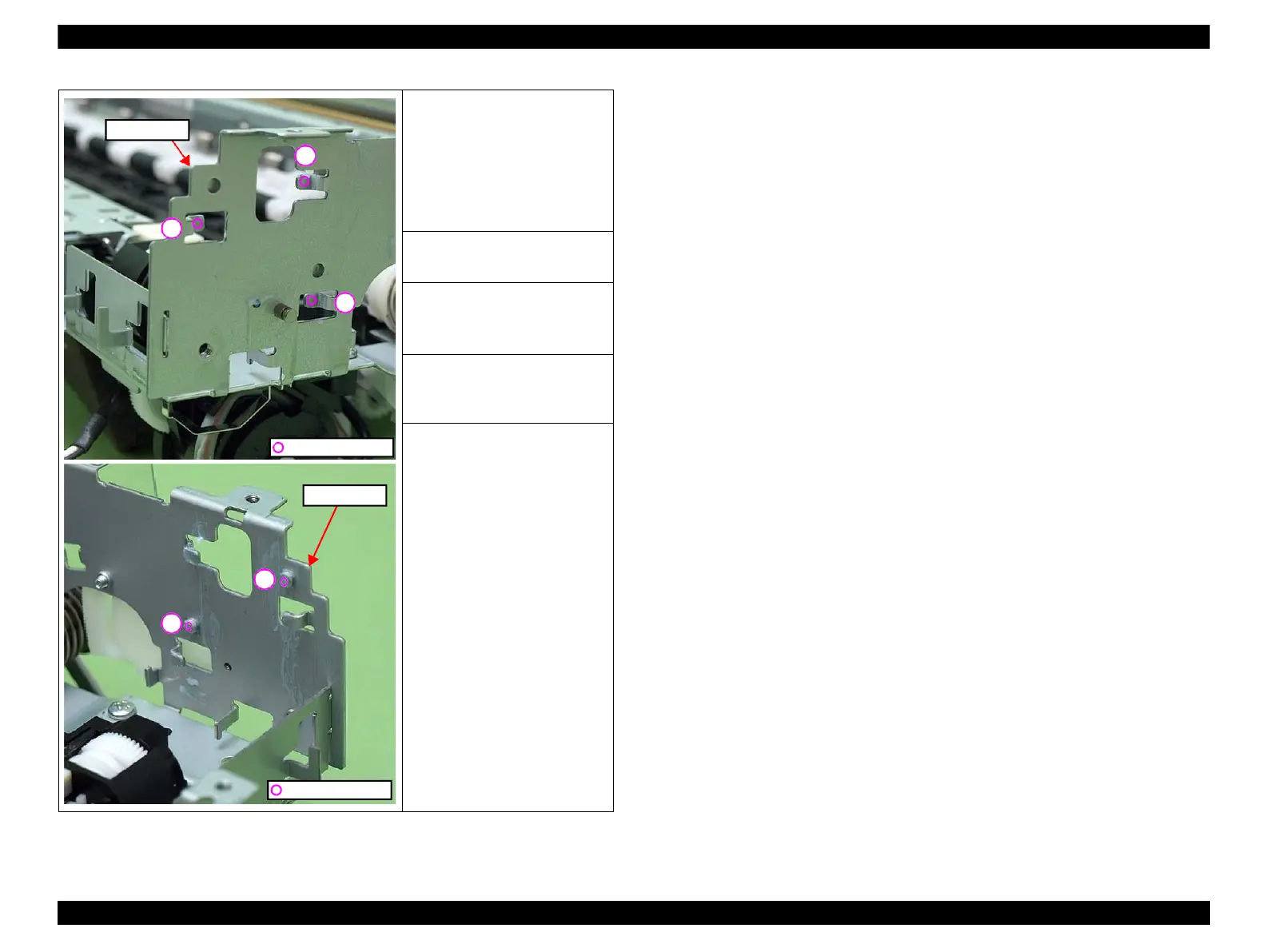

Figure 6-24. Lubrication of the Main Frame on the right
MAINTENANCE Overview 257
