Disassembly/Assembly Disassembly/Assembly Procedures 10
Epson Stylus NX125/T13/NX130 series Revision F
1.2 Disassembly/Assembly Procedures
This section describes procedures for disassembling the parts/units in a flowchart form. For some parts/units,
detailed procedures or precautions are provided (accordingly indicated by icons and cell's color). Refer to the
explanations in the example chart below and perform an appropriate disassembling and assembling procedure.
(See" 1.3 Details of Disassembling/Assembling by Parts/Unit (p16)".)
For routing cables, see " 1.4 Routing FFC/cables (p21)"

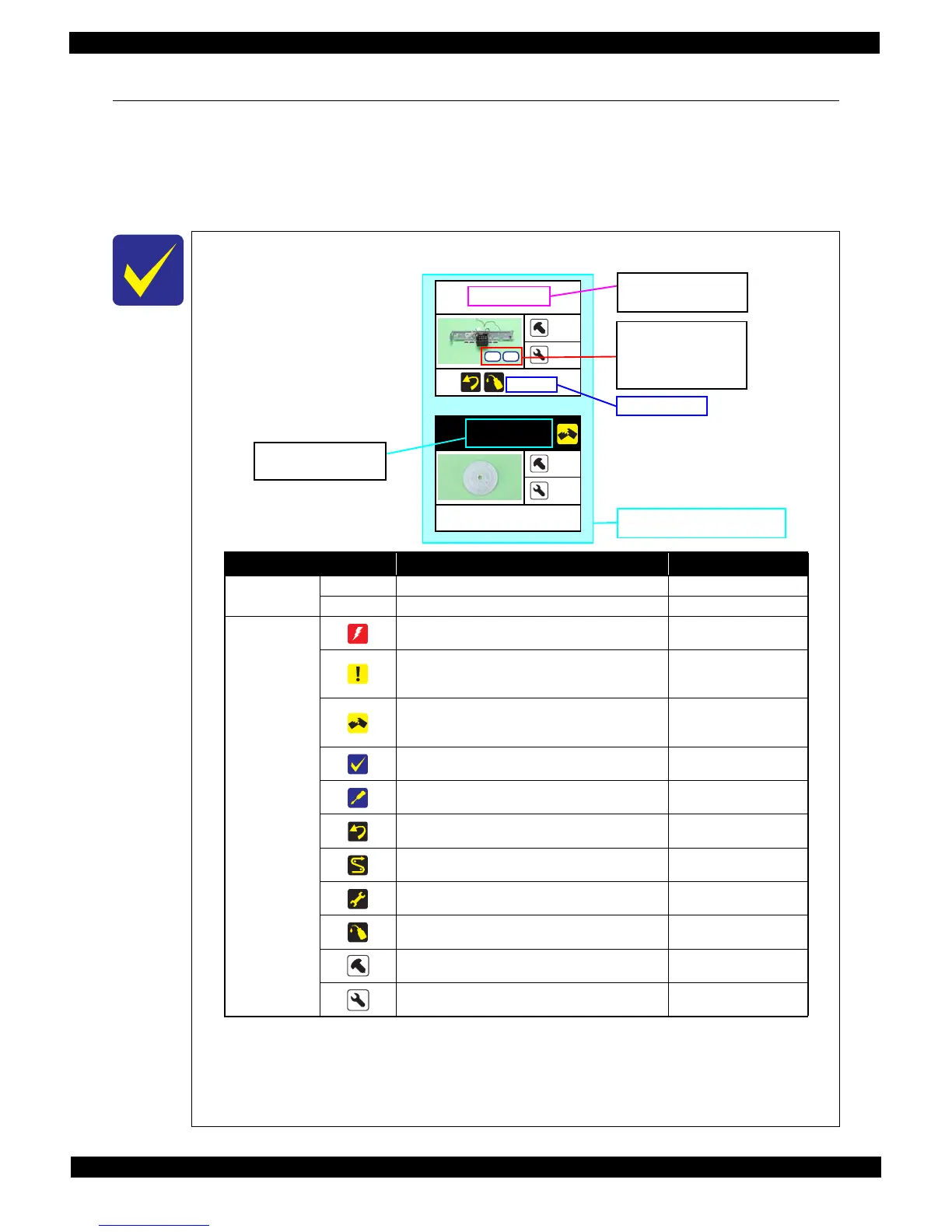

The example below shows how to see the charts on the following pages.
Main Frame
4
5
(p 17, p 29)
S1
S5
EJ Roller Gear
---
---
---
Item Description Reference
Parts/unit name
White-letter
Parts/units supplied as an ASP ---
Black-letter
Parts/units not supplied as an ASP ---
Icon
Indicates a practice or condition that could result in
injury or loss of life if not strictly observed.
Indicates the reference
page in blue-letter
Indicates a practice or condition that could result in
damage to, or destruction of equipment if not strictly
observed.
Indicates the reference
page in blue-letter
Indicates the parts that are inevitably broken in the
disassembling procedure, and should be replaced with
a new one for reassembly.
---
Indicates necessary check items in the disassembling/
assembling procedure.
Indicates the reference
page in blue-letter
Indicates supplementary explanation for disassembly
is given.
Indicates the reference
page in blue-letter
Indicates particular tasks to keep quality of the
components are required.
Indicates the reference
page in blue-letter
Indicates particular routing of cables is required.
Indicates the reference
page in blue-letter
Indicates particular adjustment(s) is/are required.
Chapter 2 " Adjustment
(p23)"
Indicates lubrication is required.
Chapter 3 " Maintenance
(p27)"
Indicates the number of screws securing the parts/
units.
---
Indicates the points secured with other than a screw
such as a hook, rib, dowel or the like.
---
Shows removal/installation as a
unit/assy. is available.
Reference page
White letters indicate a
part/unit supplied as an
ASP.
Black letters indicate a
part/unit not supplied
as an ASP.
Shows the
correspondence to the
screw types and the
specified torque in the
"Screw type/torque list".

Epson Stylus S22 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Maximum print size	210 x 297 mm
Paper tray media types	Envelopes, Glossy paper, Photo paper, Plain paper
Paper tray media weight	0 - 75 g/m²
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	10x15 \
Maximum ISO A-series paper size	A4
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	28 ppm
Print speed (color, normal quality, A4/US Letter)	15 ppm
Printing noise level	42 dB
Total input capacity	100 sheets
Total output capacity	- sheets
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1.2 W
Power consumption (printing)	10.1 W
Sustainability certificates	ENERGY STAR
Compatible operating systems	Windows XP Windows Vista Windows 7 Mac 10.4.11 +
Country of origin	Thailand
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	60 pc(s)
Quantity per pallet (UK)	80 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)
Package depth	470 mm
Package width	295 mm
Package height	200 mm
Package weight	3400 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	227 mm
Width	415 mm
Height	135 mm
Weight	2400 g
