Epson Stylus S22 User Manual

Epson Stylus NX125/T13/NX130 series Revision F
Disassembly/Assembly Routing FFC/cables 21
Confidential

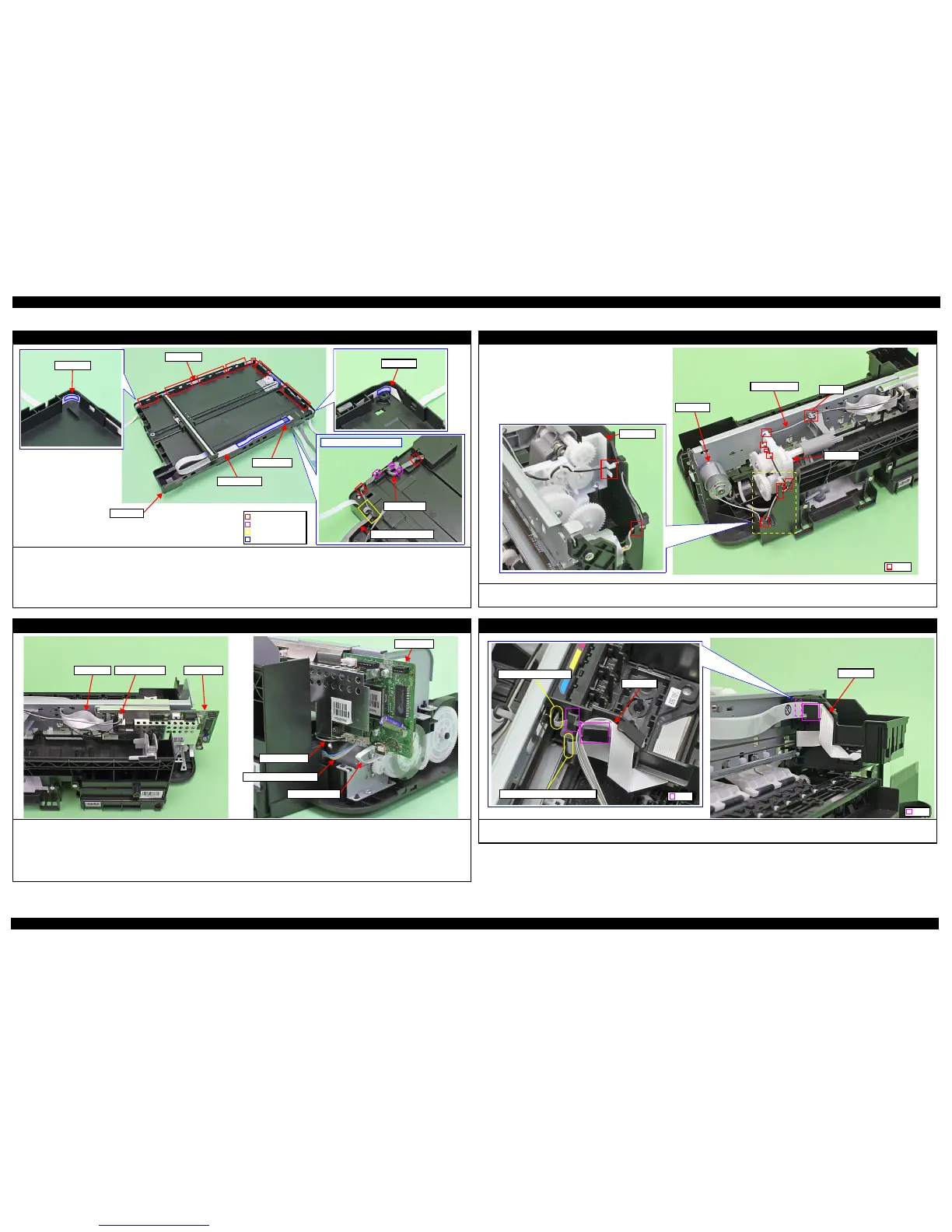

1.4 Routing FFC/cables
Scanner Unit /CIS (NX125/NX130 series)
 When routing the Panel FFC, route it through the ribs (x7) of the Housing, and secure with double-sided tape (x3).
 When routing the Scanner FFC, secure it together with the Ferrite Core on the Housing with double-sided tape.
 When routing the Scanner Motor cable, pay attention to the following instructions.
• Secure the Ferrite core with the hooks (x2) on the rear of the Scanner Unit.
• Route the Scanner Motor cable through the ribs (x2) and hook (x1) on the rear of the Scanner Unit, and through the hole of the section A and make one
turn around the frame of the section A.
Panel FFC
Rib
Double-sided tape
Panel FFC
Panel FFC
Ferrite Core
Bottom of the Scanner Unit
Scanner Motor cable
Hook
Section A
Scanner FFC
Ferrite Core
Housing
CR Motor
 Route the CR Motor cable through the ribs (x10) and make one turn around the rib A.
 Route the CR Motor cable so as not to touch the surrounding gears.
Pick Assy
Rib
CR Motor
CR Motor cable
Pick Assy
Rib A
Main Board
Connect the following cable to the Main Board as shown in the figure above.
• PF Motor cable
• Power Supply Unit cable
• PF Encoder FFC
• CR Motor cable
• Head FFC
Head FFC CR Motor cable Main Board
Main Board
PF Motor cable
Power Supply Unit Cable
PF Encoder FFC
Printhead
 Make sure that the Head FFC is connected to the Holder Contact Assy and CR Encoder.
 Route the Head FFC through the rib of the Carriage as shown above.
Rib
Head FFC
Connect to Holder Contact Assy
Connect to CR Encoder
Head FFC
Rib
