Epson Stylus NX125/T13/NX130 series Revision F

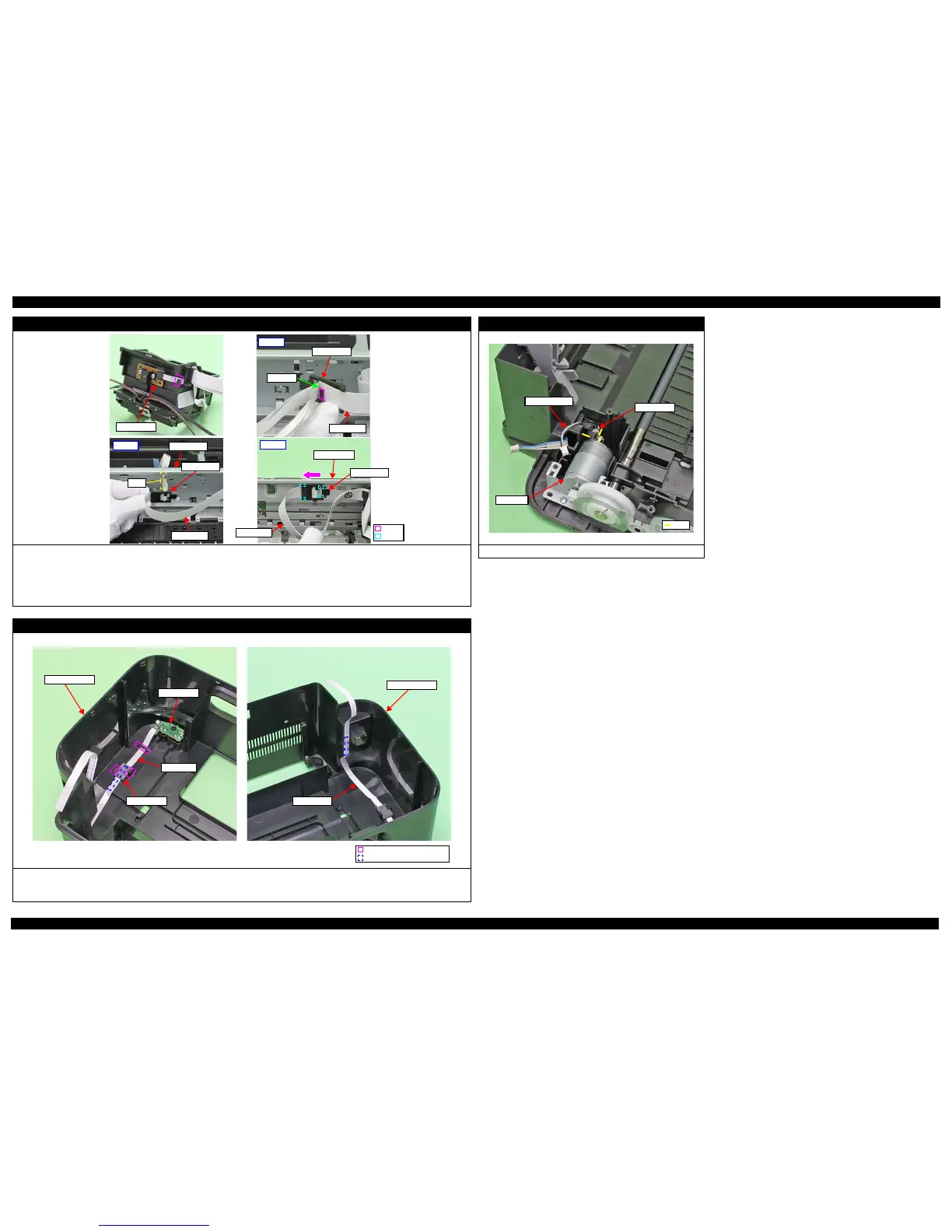

Disassembly/Assembly Routing FFC/cables 22
Confidential
Head FFC
 When installing the Head FFC to the Carriage, route the Head FFC through the rib (x1) on the rear of the Carriage, and connect the Head FFC to the CR
Encoder.
 When installing the Head FFC to the Main Frame, route the Head FFC in the procedure below and connect it to the Main Board.
1. Align the fold line of the Head FFC with the rib (x1) of the Holder FFC, and route the FFC through the Holder FFC as shown in the figure above.
2. Route the Head FFC through the hole of the Main Frame.
3. Align the hooks (x4) of the Holder FFC with the holes (x4) on the Main Frame, and secure the Holder FFC to the Main Frame by sliding it to the 80-digit side.
CR Encoder
Holder FFC
Head FFC
Hole
Step 2
Main Frame
Holder FFC
Head FFC
Step 1
Fold line
Main Frame
Step 3
Rib
Hook
Head FFC
Holder FFC
PF Motor
Set the Ferrite Core of the PF Motor cable into the ribs of the Frame Base.
PF Motor
PF Motor cable
Ferrite Core
Rib
Panel Board (T13 series)
When routing the Panel FFC, follow the instructions below.
1. Route it through the Ferrite Core and the hook (x1).
2. Secure the FFC with double-sided tape (x2) to the Upper Housing, and then secure the Ferrite core with the hooks (x2).
Panel FFC
Upper Housing
Ferrite Core
Upper Housing
Panel Board
Panel FFC
Hook
Double-sided tape (8 x 20 mm)

Epson Stylus S22 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Maximum print size	210 x 297 mm
Paper tray media types	Envelopes, Glossy paper, Photo paper, Plain paper
Paper tray media weight	0 - 75 g/m²
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	10x15 \
Maximum ISO A-series paper size	A4
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	28 ppm
Print speed (color, normal quality, A4/US Letter)	15 ppm
Printing noise level	42 dB
Total input capacity	100 sheets
Total output capacity	- sheets
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1.2 W
Power consumption (printing)	10.1 W
Sustainability certificates	ENERGY STAR
Compatible operating systems	Windows XP Windows Vista Windows 7 Mac 10.4.11 +
Country of origin	Thailand
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	60 pc(s)
Quantity per pallet (UK)	80 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)
Package depth	470 mm
Package width	295 mm
Package height	200 mm
Package weight	3400 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	227 mm
Width	415 mm
Height	135 mm
Weight	2400 g
