Epson Stylus S22 User Manual

Confidential
Appendix Power-On Sequence 32
Epson Stylus NX125/T13/NX130 series Revision F
4.1 Power-On Sequence
This section describes the power-on sequences for this product. The preconditions are as follows.
 Condition

Completing ink charge.
 No paper on the paper path.
 The Printhead is capped with the Cap of the Ink System.
 The Carriage is locked by the CR Lock.
In this chapter, the product names are called as follows:
 NX125 series: Epson Stylus NX125/NX127/TX120/TX125/TX123/SX125/TX121/TX121x/
TX129/Epson ME 320/ME 330/ME 350
 T13 series: Epson Stylus T13/T13x/T12/N10/N11/T22/T25/S22/T22E/Epson ME 10/
ME 32/ME 33/ME 35
 NX125 series: Epson Stylus NX130/TX130/TX133/TX135/SX130/Epson ME 340

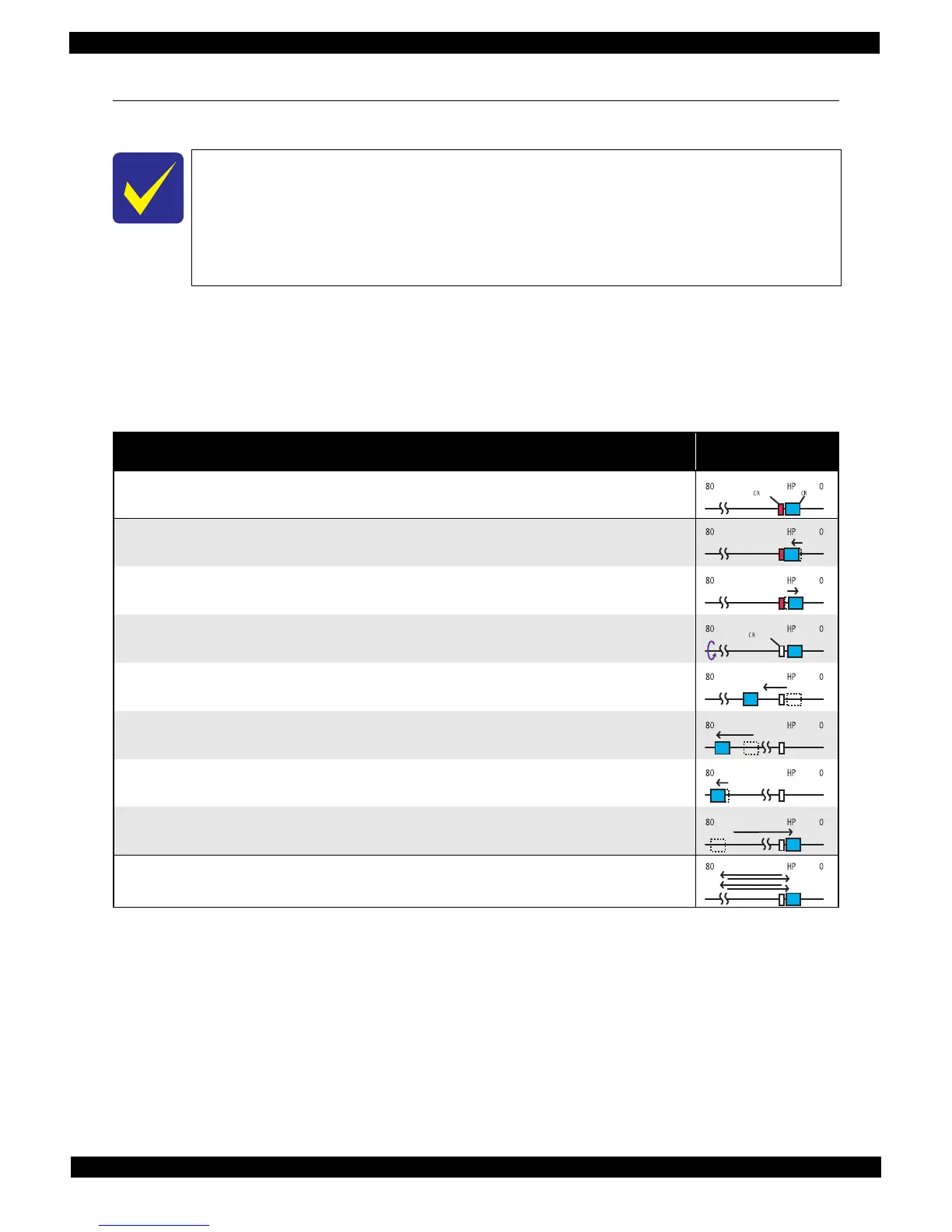

Table 4-1. Operation of the power-on sequence
Operation
*1
Carriage/PF roller
movement and position
*2
1. Checking waste ink overflow
1-1.Reads out the protection counter value to check waste ink overflow.
2. Seeking the home position
2-1.The carriage moves to the 80-digit side slowly and confirms it touches the CR lock.
2-2.The carriage moves to the 0-digit side slowly to leave from the CR lock.
2-3.Checks if paper does not exist with the PE sensor and the PF Motor rotates clockwise to release the CR lock.
2-4.The carriage moves to the 80-digit side slowly and confirms that the CR lock is released.
2-5.The carriage quickly moves to the 80-digit side by the Left Frame.
2-6.After the carriage continuously moves to the 80-digit side slowly and confirms it touches the Left Frame, sets the
distance from the home position to the Left Frame as the theoretical value.
2-7.The carriage quickly moves to the 0-digit side and slows down as it gets to its home position, and stops there.
3. Low temperature operation sequence
*3
3-1.The carriage moves back and forth between the 0-digit side and the 80-digit side for two times.
(Continued to the next page...)
NQEM
NQEMKUTGNGCUGF

Epson Stylus S22 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Maximum print size	210 x 297 mm
Paper tray media types	Envelopes, Glossy paper, Photo paper, Plain paper
Paper tray media weight	0 - 75 g/m²
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	10x15 \
Maximum ISO A-series paper size	A4
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	28 ppm
Print speed (color, normal quality, A4/US Letter)	15 ppm
Printing noise level	42 dB
Total input capacity	100 sheets
Total output capacity	- sheets
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1.2 W
Power consumption (printing)	10.1 W
Sustainability certificates	ENERGY STAR
Compatible operating systems	Windows XP Windows Vista Windows 7 Mac 10.4.11 +
Country of origin	Thailand
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	60 pc(s)
Quantity per pallet (UK)	80 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)
Package depth	470 mm
Package width	295 mm
Package height	200 mm
Package weight	3400 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	227 mm
Width	415 mm
Height	135 mm
Weight	2400 g
