Adjustment Revision FDetails of Adjustments 26
Epson Stylus NX125/T13/NX130 series Revision F
2.2 Revision FDetails of Adjustments
This section provides adjustment procedures for which explanation in details is necessary. See " 2.1 Required
Adjustments (p24)" for the adjustments not explained here.
2.2.1 TOP Margin Adjustment

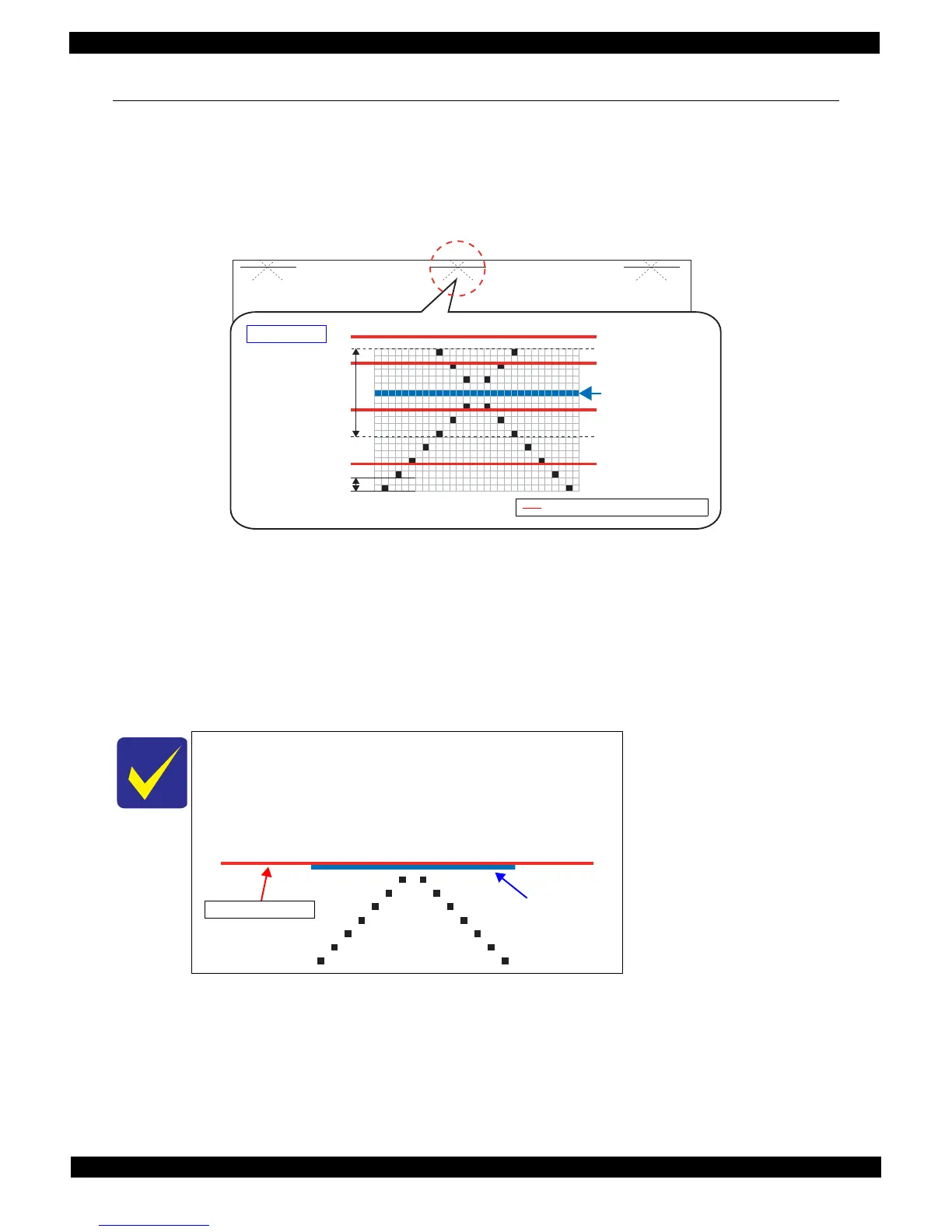

Three adjustment patterns are printed on the top of the paper as shown in Figure 2-1.
Figure 2-1. Top Margin Adjustment Printout Pattern
How to Judge
Check if the top edge of the paper is within -3 to +3 steps from the standard line.
Additional Information
If it is not within the OK range, select the adjustment value (-4 to +4 steps) on the adjustment program to adjust the top edge
of paper until it becomes within -3 to +3 steps from the standard line. Then, print the adjustment pattern again to check the
result.
 The patterns are printed on three sections. If those three patterns
are in different position to the top edge of paper, the paper was
fed on a skew. Set the papers correctly and print it again to
adjust the top margin correctly.
 The following pattern is printed with the optimal adjustment
value.
How to Judge
Within ±3 steps from
standard line is OK
NG:-4 steps from
standard line
NG:+5 steps from
standard line
OK
OK
Standard line
1 Step
Position of the top edge of paper
Standard line
Top edge of paper

Epson Stylus S22 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Maximum print size	210 x 297 mm
Paper tray media types	Envelopes, Glossy paper, Photo paper, Plain paper
Paper tray media weight	0 - 75 g/m²
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Photo paper sizes (imperial)	10x15 \
Maximum ISO A-series paper size	A4
Maximum resolution	5760 x 1440 DPI
Print speed (black, normal quality, A4/US Letter)	28 ppm
Print speed (color, normal quality, A4/US Letter)	15 ppm
Printing noise level	42 dB
Total input capacity	100 sheets
Total output capacity	- sheets
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1.2 W
Power consumption (printing)	10.1 W
Sustainability certificates	ENERGY STAR
Compatible operating systems	Windows XP Windows Vista Windows 7 Mac 10.4.11 +
Country of origin	Thailand
Market positioning	Home & office
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	60 pc(s)
Quantity per pallet (UK)	80 pc(s)
Quantity per pallet layer	6 pc(s)
Quantity per pallet layer (UK)	8 pc(s)
Package depth	470 mm
Package width	295 mm
Package height	200 mm
Package weight	3400 g
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	227 mm
Width	415 mm
Height	135 mm
Weight	2400 g
