Epson Stylus NX125/T13/NX130 series Revision F
Confidential
Maintenance Lubrication Point 30

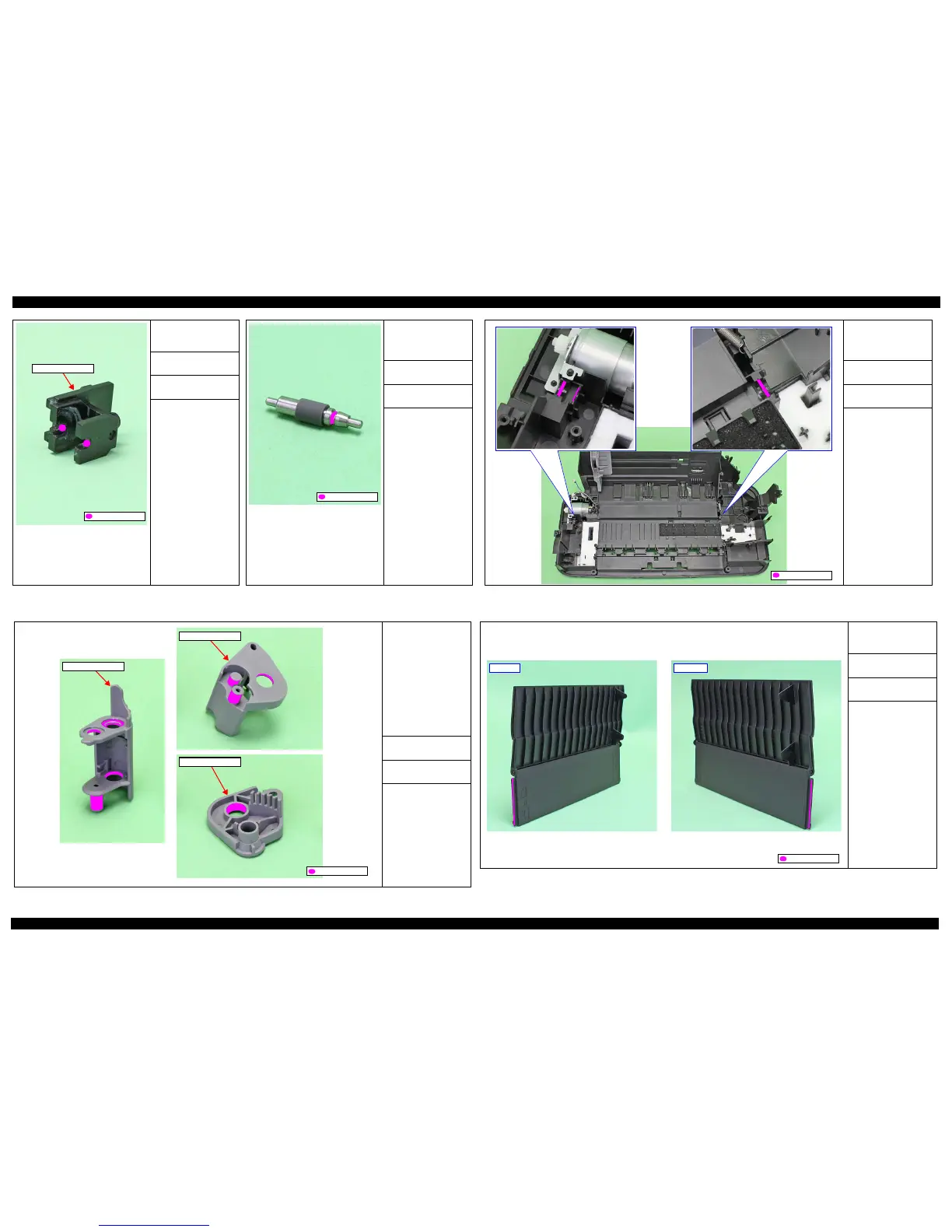

Figure 3-5. Lubrication on Driven Pulley Holder Figure 3-6. Lubrication on Roller Idler Pick Assy
<Lubrication Point>
Contacting points (x2)
with the Driven Pulley
<Type>
G-71
<Application Amount>
Size of a grain of rice
<Remarks>
Wipeout grease.
Apply with injector.
Driven Pulley Holder
Lubrication Point
<Lubrication Point>
Sliding surface between
the Roller Idler Pick and
Spring Roller Idler Pick
<Type>
G-74
<Application Amount>
Sufficient quantity
<Remarks>
Wipe out grease.
Apply with brush.
Lubrication Point
Figure 3-7. Lubrication on PF Roller
<Lubrication Point>
Ribs (x3) of the Frame
Base (contacting points
with the PF Roller)
<Type>
G-71
<Application Amount>
Sufficient quantity
<Remarks>
Wipe out grease.
Apply with injector.
Lubrication Point
Figure 3-8. Lubrication on LD Roller Assy
<Lubrication Point>
Contacting points (x5)
between the shafts and
bushings of the Head
Pick Housing
Contacting point (x1)
with the Right Pick
Housing
Contacting points (x3)
between the shafts and
bushings of the Left
Pick Housing
<Type>
G-71
<Application Amount>
Sufficient quantity
<Remarks>
Wipe out grease.
Apply with injector.
Left Pick Housing
Right Pick Housing
Head Pick Housing
Lubrication Point
Figure 3-9. Lubrication on Paper Support Assy (T13 series)
<Lubrication Point>
Rail of the Paper Support
Assy
<Type>
G-74
<Application Amount>
Sufficient quantity
<Remarks>
Wipe out grease.
Apply with brush.
Keep the lubrication
within the rail. (No
grease outside of the
rail is allowed.)
Right side
Left side
Lubrication Point
