Epson Stylus SX230 series / SX235W series / SX430W series / SX440W series Revision B
Confidential
Maintenance Lubrication Points and Instructions 57

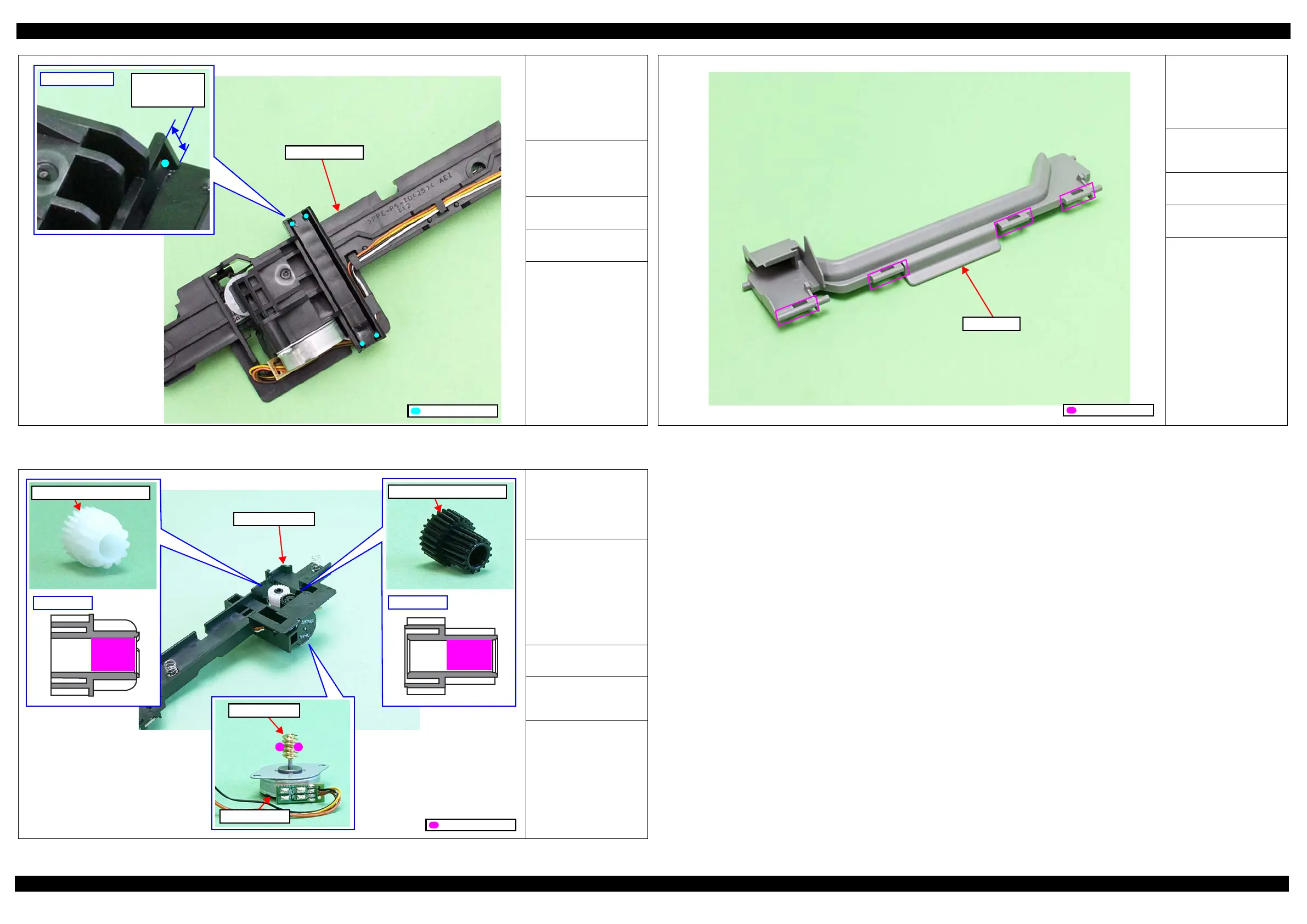

Figure 4-13. Lubrication of the Scanner Carriage (2)
<Part supply as ASP>
Supplied as the Scanner
Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
On inner wall surfaces (x4)
on the groove of the
Scanner Carriage
<Type>
G-45
<Application Amount>
0.01 g x 4 points
<Remarks>
Using injector, apply
grease on inner wall
surfaces (x4) on the
groove shown in the
enlarged figure.
Be careful not to let
grease flow over.
Scanner Carriage
Enlarged figure
Apply on the
center of inner
wall (x4 points).
Application Point
Figure 4-14. Lubrication of the Panel Stand
<Part supply as ASP>
Supplied as the Panel Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
Shafts (x4) of the Panel
Stand
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
Using flux dispenser,
apply all over the shafts
shown in the figure.
Stir G-74 before use.
Panel Stand
Application Point
Figure 4-15. Lubrication of Scanner Motor, Combination Gear 14.4,10.8 and Combination Gear 13.8,9.66
<Part supply as ASP>
Supplied as the Scanner Unit
<Lubrication status when
supplied as ASP>
Lubricated
<Lubrication Point>
1. Gear sections (x2) on the
Pinion Gear of the
Scanner Motor
2. Shaft hole of the
Combination Gear 14.4.10.8
3. Shaft hole of the
Combination Gear 13.8.9.66
<Type>
G-45
<Application Amount>
1. 0.01 g x 2 points
2.3. 0.01 g
<Remarks>
1. Apply with injector.
2.3.
After applying with
injector, spread it over
the entire inner surface
the shaft hole shown in
the figure.
Be careful not to let
grease flow over.
Scanner Motor
Pinion Gear
Scanner Carriage
Cross-section
Cross-section
Combination gear 14.4,10.8
Combination gear 13.8,9.66
Application Point
