Disassembly/Reassembly Overview 21
Epson Stylus SX230 series / SX235W series / SX430W series / SX440W series Revision B
2.1.3 Locations of the Parts/Units
This section shows the locations of the main parts/units of SX230 series, SX235W series, SX430W series and
SX440W series.
 Exterior parts

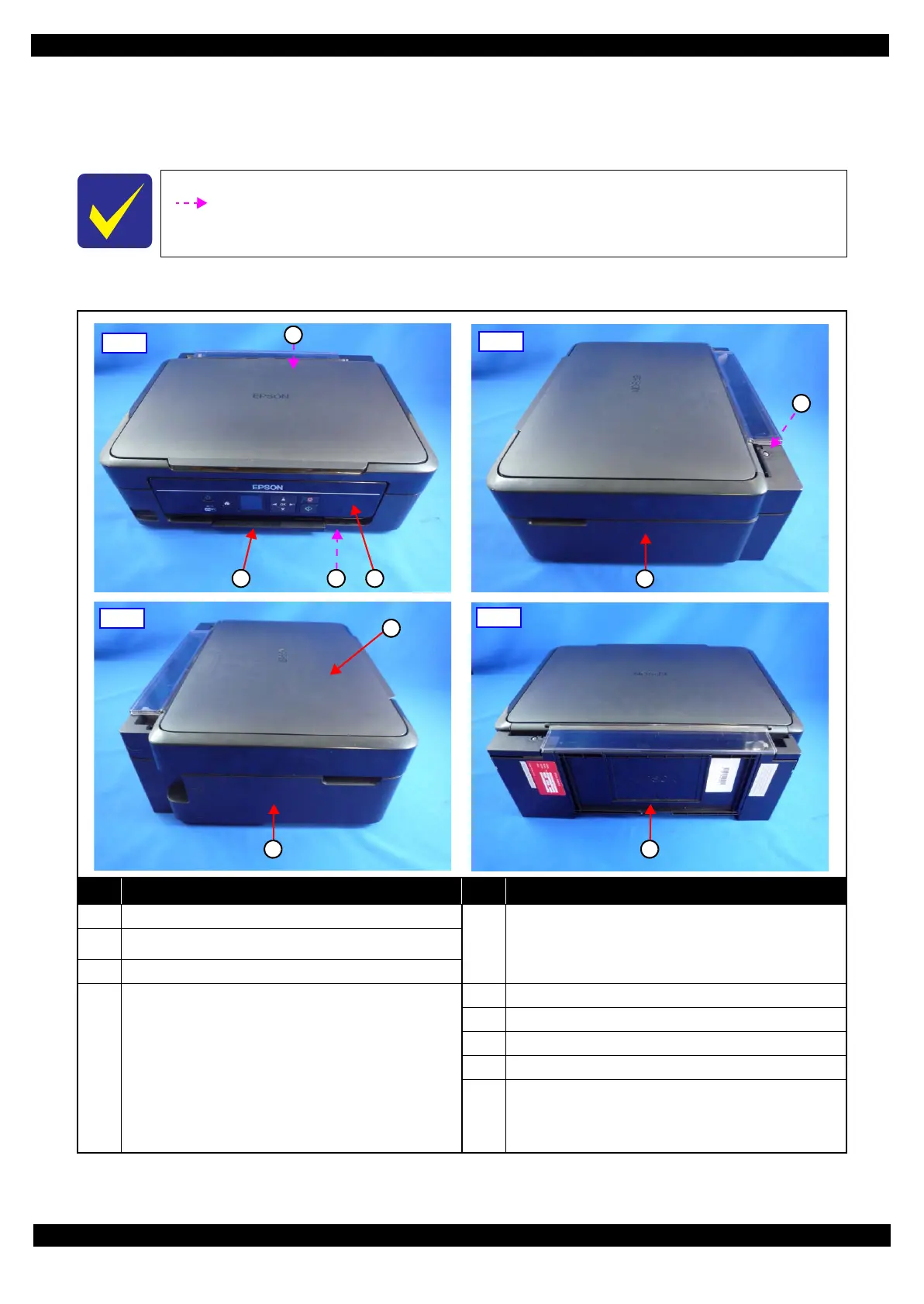

Figure 2-2. Exterior Parts
The parts/units which can not be seen in the following pictures are indicated in dotted lines
().
No. Name No. Name
1 Housing Rear (p27)
4
• SX440W series (p 28)
Panel Board w/ Touch Panel (p28)/Panel Housing
Upper Assy (p28)/Panel Housing Lower Assy (p28)
2 Tray Front Assy (p27)
3 Frame Base Assy (p28)
4
Panel Unit
• SX230 series / SX430W series (p 28)
Panel Board (p29) / Panel Buttons (p29) / LCD (p29) /
Panel Housing Upper Assy (p29) / Panel Housing
Lower Assy (p29)
• SX235W series (p 28)
Panel Board Assy (p28) / Panel Buttons (p28) /
Panel Housing Upper Assy (p28) / Panel Housing
Lower Assy (p28)
5 Hinge (p27)
6 Housing Right (p27)
7 Scanner Unit (p27)
8 Housing Left (p27)
9
Paper Support Assy (p27)
1
2 3 4
Front
5
6
Right
8
7
Left
9
Rear

Epson Stylus TX235W Specifications

General

Printing Technology	Inkjet
Functions	Print, Scan, Copy
Max Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scan Resolution	1200 x 2400 dpi
Connectivity	USB, WiFi
Paper Sizes	A4, A5, A6, B5, Envelopes
Paper Capacity	100 sheets
Ink Cartridges	Black, Cyan, Magenta, Yellow
Operating Systems	Windows, Mac OS
