Appendix Protection for Transportation 63
Epson Stylus SX230 series / SX235W series / SX430W series / SX440W series Revision B
6.2.2 Securing the Paper Support Assy
 Purpose
To prevent damaging the Paper Support Assy by the shock during transportation.
 Risks if it is not performed
The Paper Support Assy will be scratched and the abrasion powder will be produced due to the shock during
transportation.
 Preparation
Prepare two pieces of strong tape (length: 85 mm, width: 22 mm, fold one end 5 mm).
 Method
Attach strong tape on both sides of the Paper Support Assy and secure the Paper Support Assy to the Housing
Right/Housing Left.

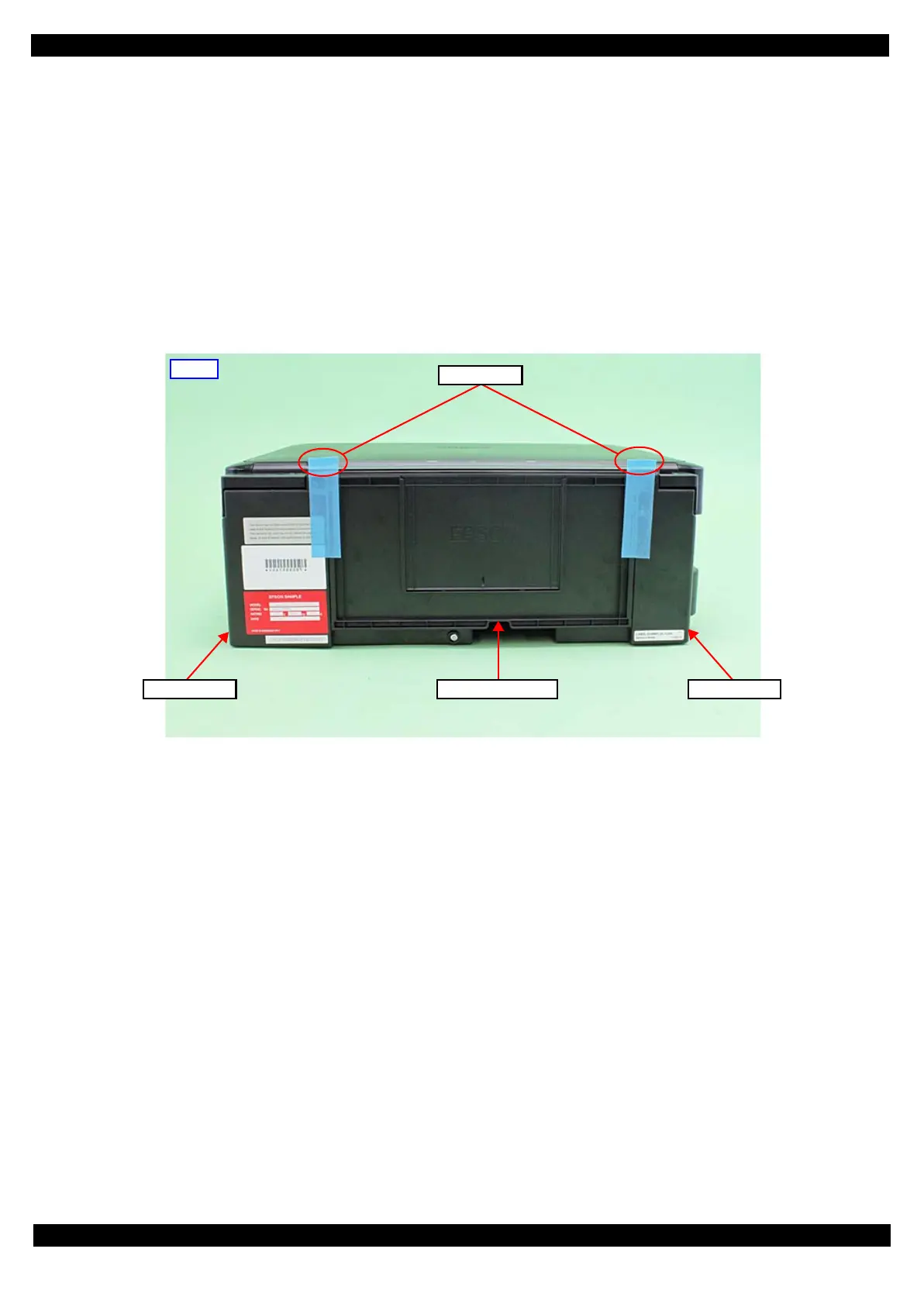

Figure 6-3. Securing the Paper Support Assy
Rear
Folded ends
Paper Support Assy Housing LeftHousing Right

Epson Stylus TX235W Specifications

General

Printing Technology	Inkjet
Functions	Print, Scan, Copy
Max Resolution	5760 x 1440 dpi
Scanner Type	Flatbed
Scan Resolution	1200 x 2400 dpi
Connectivity	USB, WiFi
Paper Sizes	A4, A5, A6, B5, Envelopes
Paper Capacity	100 sheets
Ink Cartridges	Black, Cyan, Magenta, Yellow
Operating Systems	Windows, Mac OS
