Epson TM-H6000III User Manual

TM-H6000III User’s Manual 9
English
2. The printer will detect the check and start drawing it in. When the printer
starts drawing it in, let go of the check immediately. When the printer ejects
the check and the SLIP LED starts flashing again; remove the check by pulling
it straight up; do not pull it at an angle.
Cleaning the MICR Mechanism
Approximately every 12 months clean the MICR head with a moistened cleaning
sheet.
Use the following or an equivalent commercially available cleaning sheet:
PRESAT brand (KIC) “CHECK READER CLEANING CARD.”
Note:
Be sure not to use an adhesive cleaning sheet.
Follow the steps below:
1. Load a paper roll in the printer; turn off the power; then open the paper roll
cover and turn the power back on while holding down the RELEASE button.

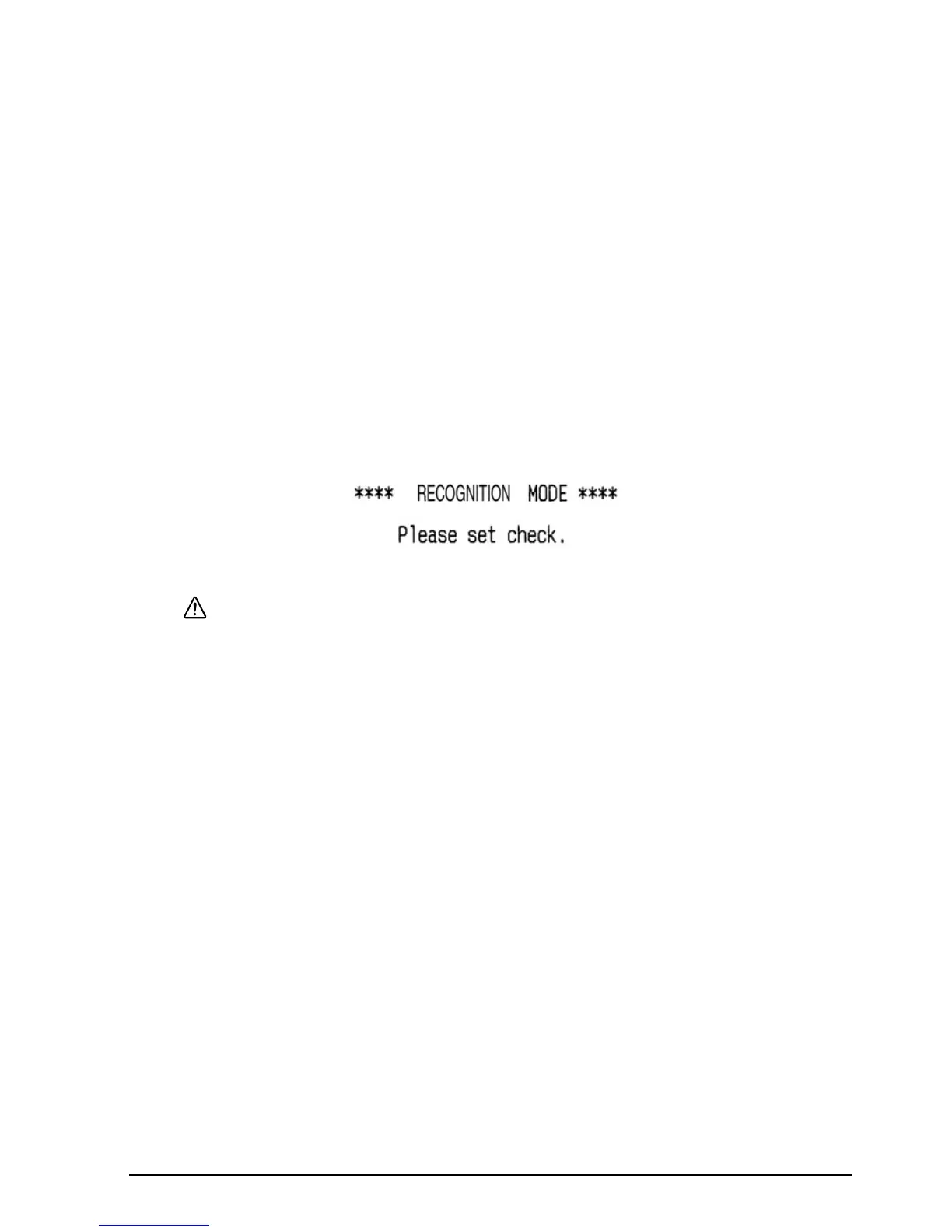

2. Press the RELEASE button 7 times; then close the paper roll cover. The printer
prints the following message on receipt paper and the SLIP LED flashes.
3. Insert the cleaning sheet like a standard check.
CAUTION:
Be sure that the sheet is inserted with the correct side up and that it is inserted in
the correct direction.
Use a cleaning sheet only one time; then discard it.
4. When the sheet is ejected, press the RELEASE button, and remove the sheet
from the printer.
Notes on using the MICR reader
Do not install the printer near any magnetic fields. Be especially careful where you
install your display device and be sure to check the recognition rate of the MICR
reader with the display device in place.
Make sure that the printer is not subjected to any impact or vibration when it is
performing a MICR reading.

Epson TM-H6000III Specifications

General

Dimensions (WxDxH)	186 x 298 x 185 mm
USB port	Yes
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Connectivity technology	Wired
Type	POS printer
Print speed	63 lps
Character size	0.99 x 2.4 mm
Print technology	Dot matrix
Safety	UL, CSA, TÜV
Certification	VCC1, FCC, CE
Country of origin	China
Autocutter durability	1.5 million cuts
Mean time between failures (MTBF)	360000 h
Product color	Black
Maximum roll diameter	83 mm
Supported paper width	80 mm
Printing media thickness	60 - 90 µm
Ethernet LAN	No
Input current	1.8 A
Power supply type	DC
Pallet width	800 mm
Pallet height	1675 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	50 pc(s)
Quantity per pallet layer	8 pc(s)
Quantity per pallet layer (UK)	10 pc(s)
Package depth	382 mm
Package width	285 mm
Package height	305 mm
Package weight	6600 g
Quantity per pack	1 pc(s)
