Epson TM-H6000III User Manual

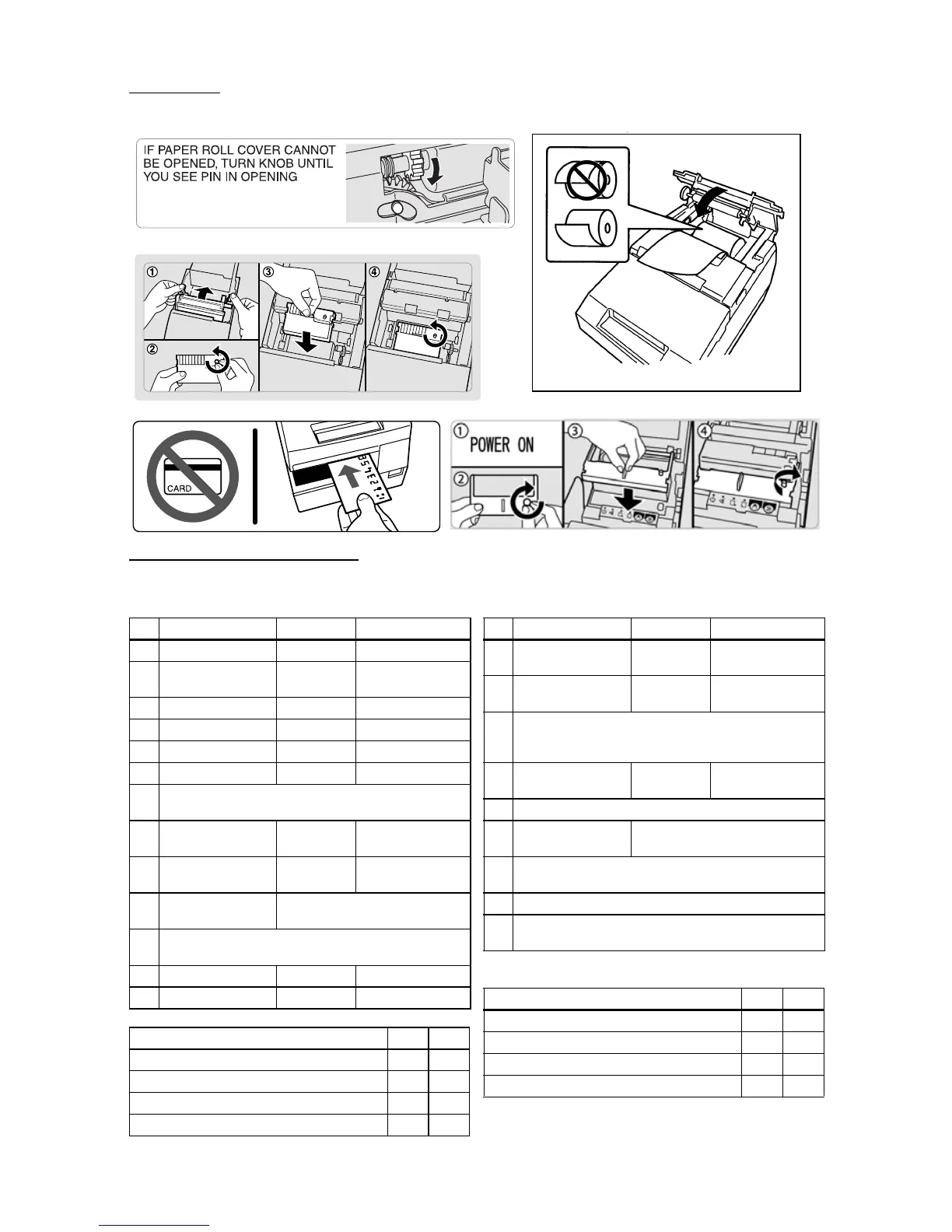

Labels
DIP Switch Tables
Serial
SW Function ON OFF
1-1 Data receive error Ignored Prints “?”
1-2 Receive buffer
capacity
45 bytes 4 KB
1-3 Handshaking XON/XOFF DTR/DSR
1-4 Data word length 7 bits 8 bits
1-5 Parity check Enabled Disabled
1-6 Parity selection Even Odd
1-7
1-8
Transmission speed (See table below.)
2-1 Handshaking
(BUSY condition)
Receive
buffer full
Offline or Receive
buffer full
2-2 Customer display
connection
Connected Not connected
2-3
2-4
Print density See Table A.
2-5
2-6
Internal use. Fixed to Off.
2-7 I/F pin 6 reset Enabled Disabled
2-8 I/F pin 25 reset Enabled Disabled
Transmission speed (bps)-bits per second 1-7 1-8
4800 ON ON
9600 OFF ON
19200 ON OFF
38400 OFF OFF
Parallel
SW Function ON OFF
1-1 Auto line feed Always
enabled
Always disabled
1-2 Receive buffer
capacity
45 bytes 4 KB
1-3
~
1-8
Reserved. Fixed to Off.
2-1 Handshaking
(BUSY condition)
Receive
buffer full
Offline or Receive
buffer full
2-2 Internal use. Do not change setting. Fixed to Off.
2-3
2-4
Print density See Table A.
2-5
2-6
Internal use. Fixed to Off.
2-7 Reserved (for serial interface) Fixed to Off.
2-8 I/F pin 31 reset signal. Do not change setting.
Fixed to On.
Table A
Print density/low power 2-3 2-4
1 Print density (Light) ON ON
2OFFOFF
3ONOFF
4 Print density (Dark) OFF ON

Epson TM-H6000III Specifications

General

Dimensions (WxDxH)	186 x 298 x 185 mm
USB port	Yes
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Connectivity technology	Wired
Type	POS printer
Print speed	63 lps
Character size	0.99 x 2.4 mm
Print technology	Dot matrix
Safety	UL, CSA, TÜV
Certification	VCC1, FCC, CE
Country of origin	China
Autocutter durability	1.5 million cuts
Mean time between failures (MTBF)	360000 h
Product color	Black
Maximum roll diameter	83 mm
Supported paper width	80 mm
Printing media thickness	60 - 90 µm
Ethernet LAN	No
Input current	1.8 A
Power supply type	DC
Pallet width	800 mm
Pallet height	1675 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	50 pc(s)
Quantity per pallet layer	8 pc(s)
Quantity per pallet layer (UK)	10 pc(s)
Package depth	382 mm
Package width	285 mm
Package height	305 mm
Package weight	6600 g
Quantity per pack	1 pc(s)
