Epson TM-T20II User Guide

Epson TM-T20II User Guide SPO
12/15 © IZUM, 3. 4. 2019, SPO-NA-EN-115, V3.0
The required setting, which is suitable for printing all lending forms, is Roll Paper 80 x 3276
mm, which you set in the printer's driver. In the Printer Properties, select the Advanced tab and
click the Printing Defaults… button. In the new EPSON TM-T20II Receipt5 Printing Defaults
window, click the Advanced… button to proceed.

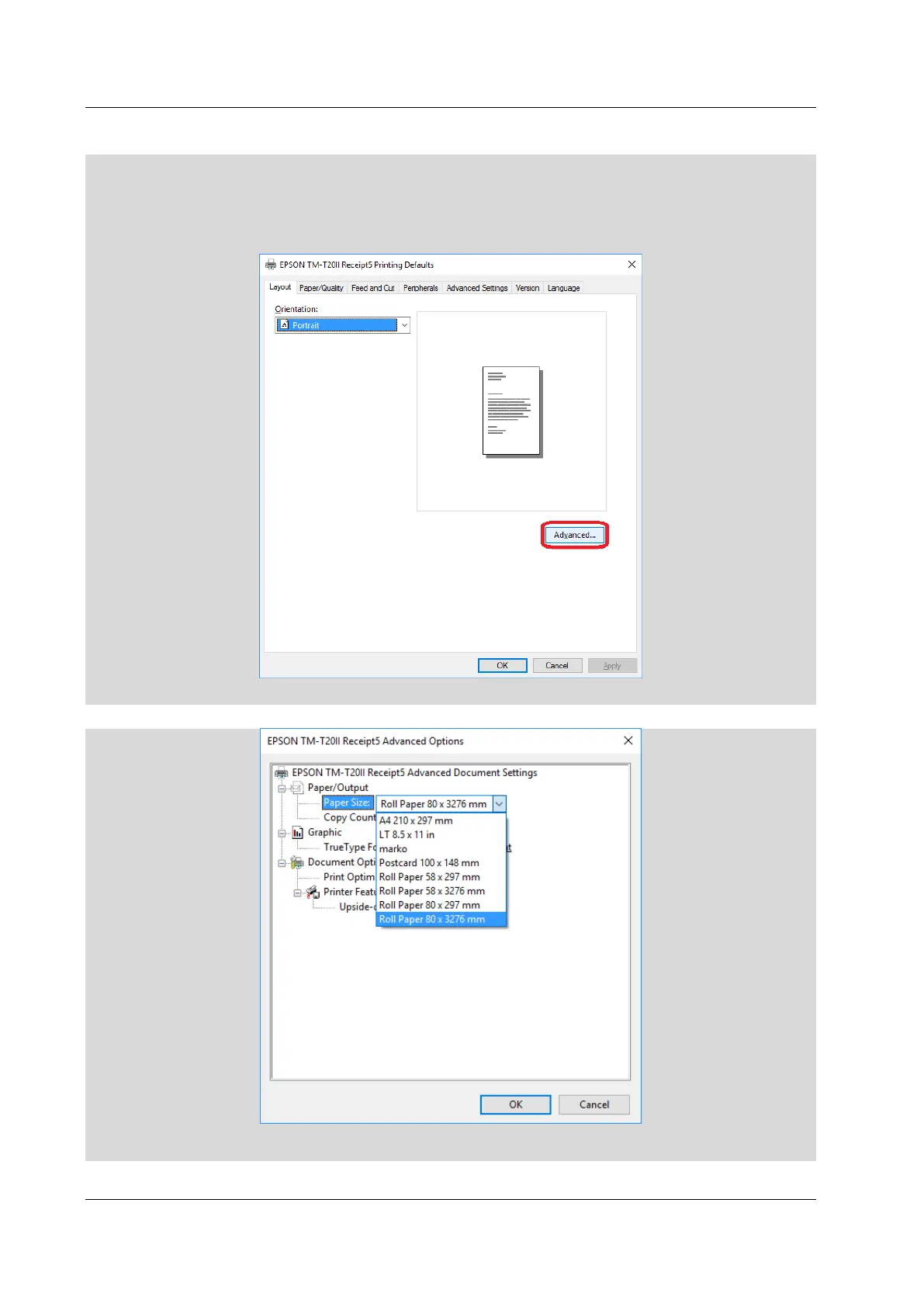

Figure 21: Advanced… settings
Figure 22: Select Roll Paper 80 x 3276 mm

Epson TM-T20II Specifications

General

Type	POS printer
Print technology	Direct thermal
Maximum resolution	- DPI
Maximum printing width	80 mm
Ethernet LAN	No
USB port	Yes
USB 2.0 ports quantity	1
Connectivity technology	Wired
Product color	Gray
Input current	1.8 A
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Mean time between failures (MTBF)	360000 h
