Epson TM-T82 User Manual

10 TM-T82 User’s Manual
English

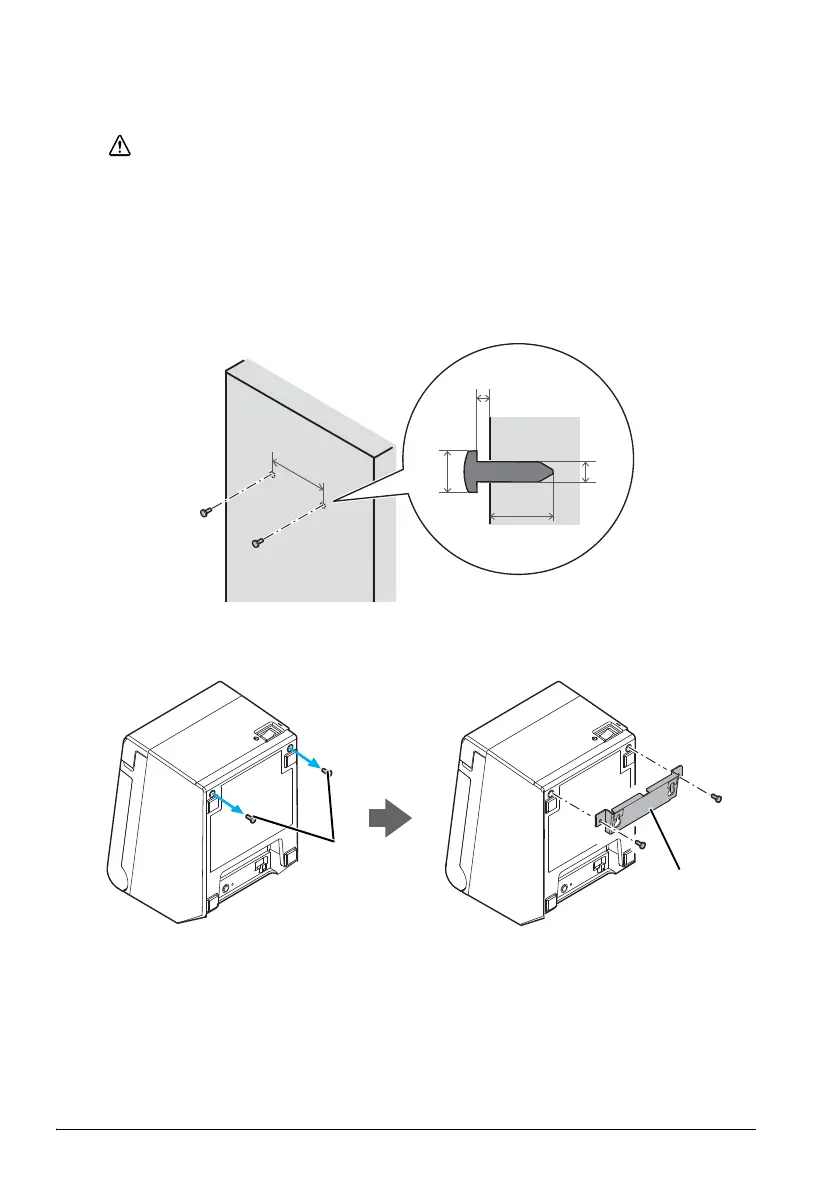

Hanging the Printer on a Wall
To hang the printer on the wall, follow the steps below.
CAUTION:
To fix the printer securely, install the wall hanging bracket on a wall made of wood, concrete, or
metal. The thickness of the wall should be 10 mm {0.4”} or more.
Be sure to use metallic screws.
The screws on the wall side must have a pull-out strength of 150 N (15.3 kgf) or more.
1. Install 2 screws (screw diameter: 4 mm {0.16"}, head diameter: 7 to 9 mm {0.28 to
0.35"}) in the wall at an interval of 80 mm {3.15"}. Make sure the length of the screw’s
body in the wall is 10 mm {0.39"} or more, and the length outside the wall is 3 to 4 mm
{0.12 to 0.16"}.
2. Remove the installed 2 screws from the printer, as shown in the illustration below.
3. Install the wall hanging bracket on the printer, and fix it using the screws removed in
Step 2.
80 mm
4 mm
3~ 4 mm
7~ 9 mm
10 mm or more
Screws
Wall hanging
bracket

Epson TM-T82 Specifications

General

Print Method	Thermal line printing
Paper Width	80 mm
Paper Roll Diameter	83 mm
Print Resolution	203 dpi
Interface	USB, Serial
Cutter	Automatic cutter
Dimensions	199 x 146 mm
Power Supply	AC adapter (included)
