Epson TM-U220-i User Manual

13
English

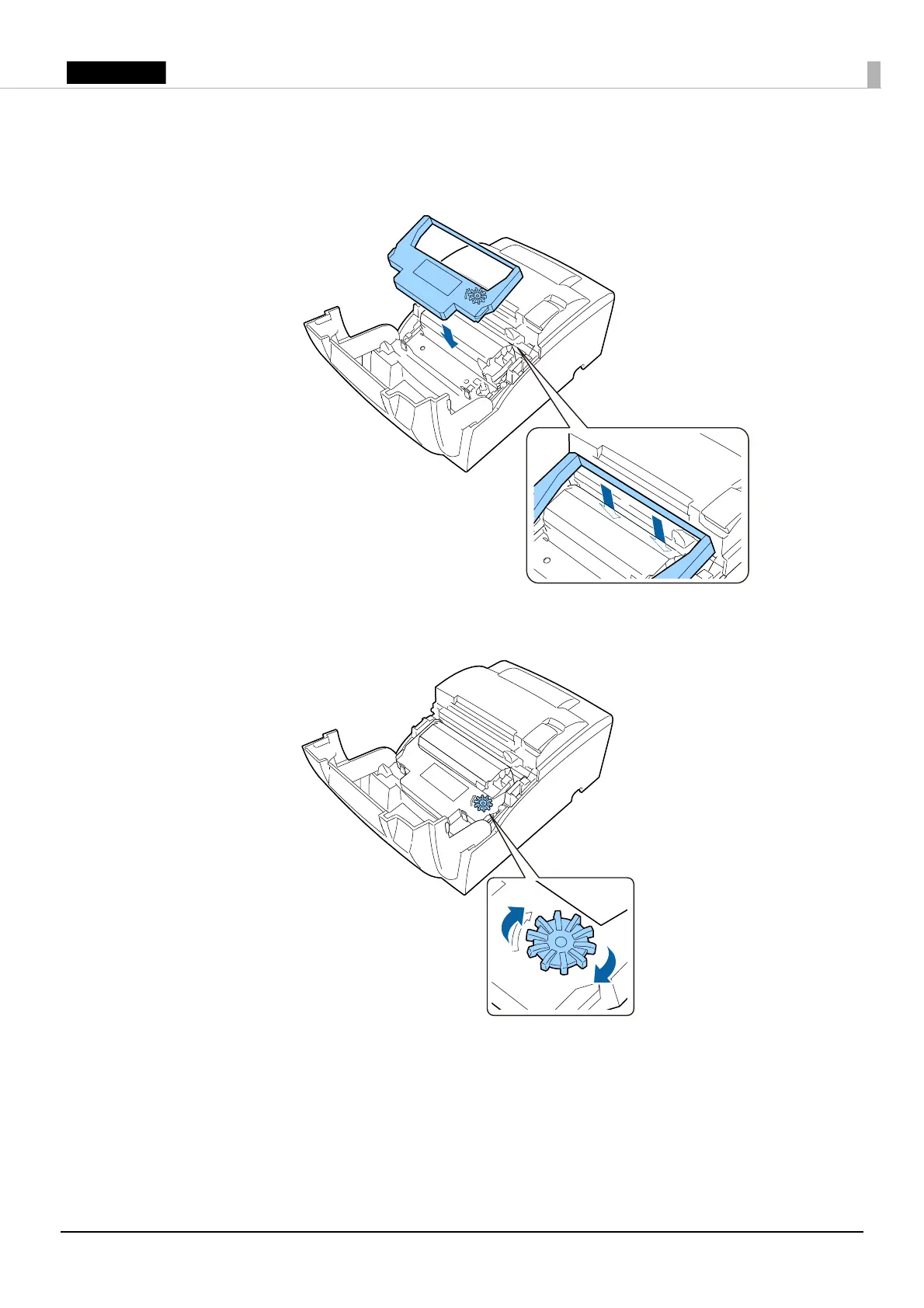

4. Install the ribbon cassette so that the ribbon enters between the print head and platen and then
push down on the ribbon cassette until it clicks. Check that the ribbon is not wrinkled or
creased.
5. Turn the knob on the ribbon cassette two or three times in the direction of the arrow.

Epson TM-U220-i Specifications

General

Type	POS printer
Color	Yes
Print technology	Dot matrix
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Maximum roll diameter	83 mm
Standard interfaces	Ethernet, Parallel, RS-232, RS-485, USB, Wireless LAN
Serial interface type	RS-232, RS-485
Connectivity technology	Wired & Wireless
Electromagnetic compatibility	VCCI class A, FCC class A, CE marking, AS/NZS 3548 class B
Mean cycles between failures (MCBF)	18000000
Safety	UL, CSA, TÜV (EN60950)
Mean time between failures (MTBF)	180000 h
Product color	Gray

Weight and Dimensions

Depth	248 mm
Width	160 mm
Height	138.5 mm
