The UB-E02 can be installed in the TM-series printers as an interface board to provide 10
Base-T/100 Base-TX communications.
5.1 Printer Connection
The interface board can be installed in TM-series printers that support the universal interface
board system.
5.2 Line Display Connection
When the UB-E02 is connected, the DM connector on the TM unit cannot be used. Refer to the
Supported TM Printers section in Chapter 1.
5.3 Features
5.3.1 Overview
❏ 10 Base-T/100 Base TX Ethernet
❏ Complies with TCP/IP protocol (LP, LPR, and socket communications)
❏ The interface board system can be connected to a variety of TM printers with the universal
interface
❏ Board size: 70
×
58 mm {2.76
×
2.28"}

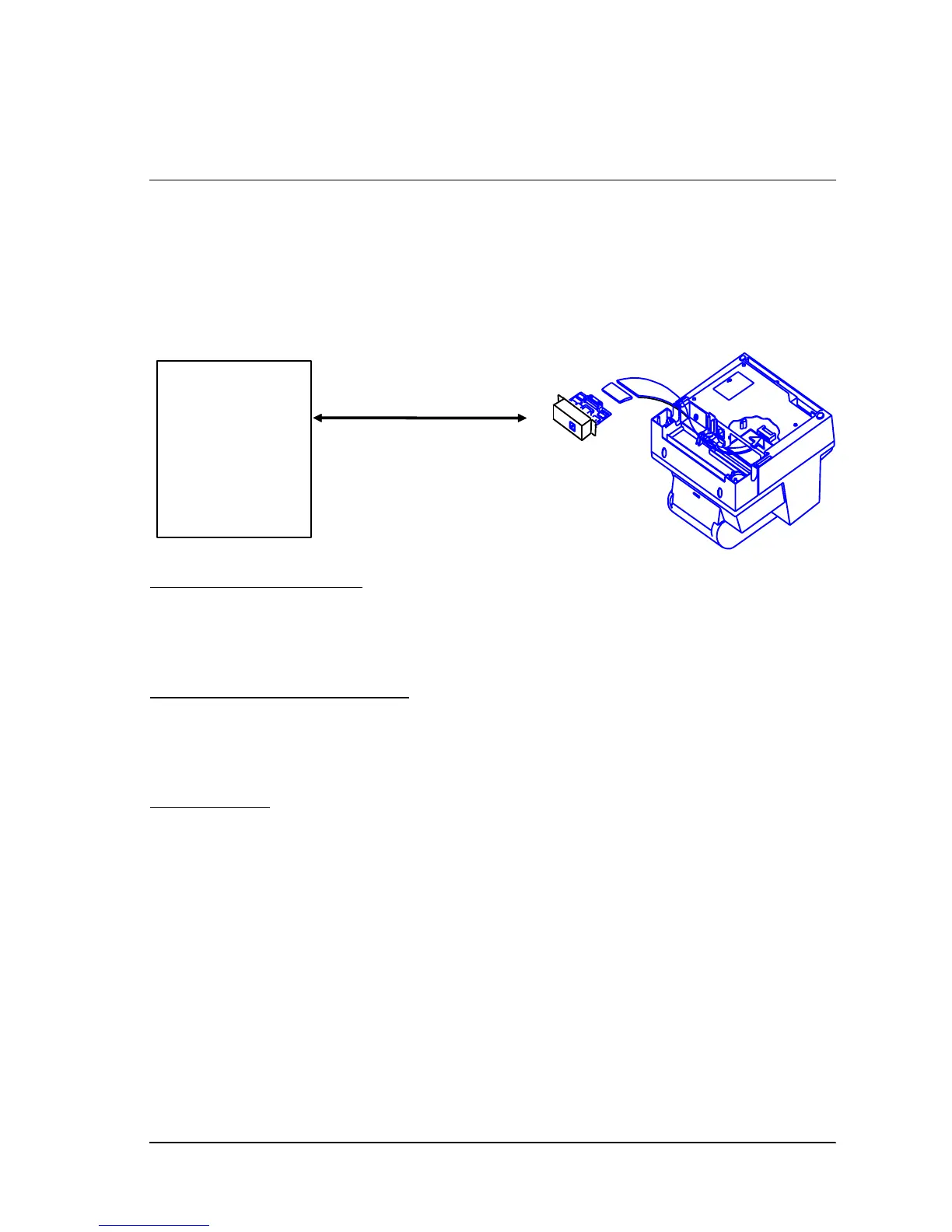

Host PC
EPSON
PRINTER
EPSON PRINTER
WITH
UB-E02
Ethernet
(10Base-T/100Base-TX)
