Epson WF-4640 Series User Manual

Epson WF-5690/4640/4630/5620/5190/5110 series Revision D
Disassembly/Reassembly Routing FFCs/Cables 49
Confidential

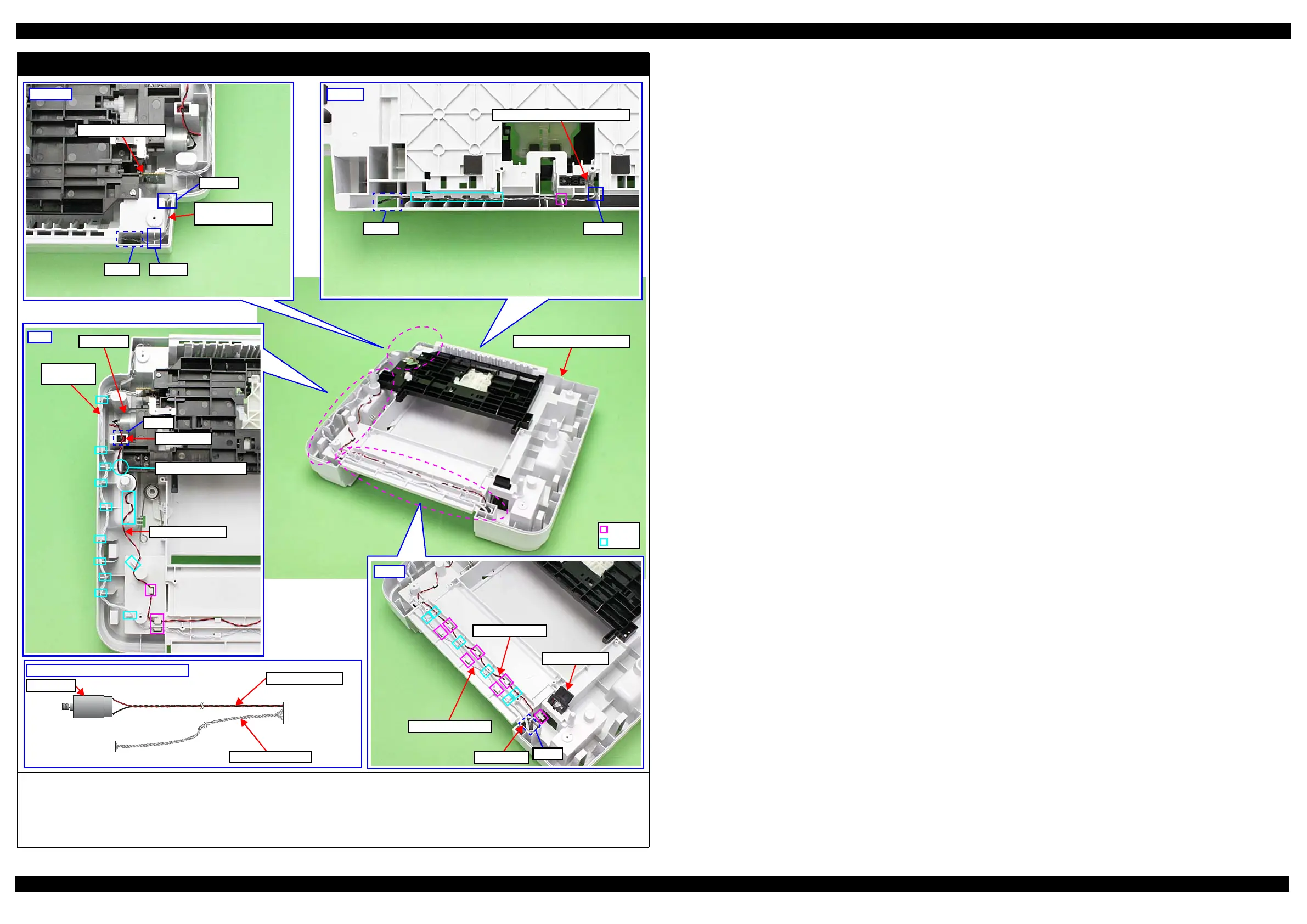

2nd Cassette Housing Assy
*
 Insert the ferrite core of the ASF Motor cable into the hole A of the 2nd Cassette Housing Assy, and route the cable through the hooks and ribs as shown above.
 Insert the ferrite core of the ASF Encoder cable in the hole B of the 2nd Cassette Housing Assy, and route the cable through the hooks and ribs as shown above.
 When connecting the Paper Stopper Lever Sensor cable to the ASF Encoder Board, follow the procedure below.
1. Route it through the groove A of the 2nd Cassette Housing Assy, and then route it through the hook and ribs as shown above.
2. Pull it out from the hole C of the 2nd Cassette Housing Assy, and route it through the groove B of the 2nd Cassette Housing Assy.
Bottom
Paper Stopper Lever Sensor cable
Groove AHole C
2nd Cassette Housing Assy
ASF Motor cable
ASF Encoder
cable
Hole A
Ferrite core
Route this outside rib.
Left
ASF Motor
ASF Motor cable
ASF Encoder cable
Relay connector
Ferrite core
Hole B
Front
Rear left
Paper Stopper
Lever Sensor cable
Groove B
Groove B
Hole C
ASF Encoder Board
Hook
Rib
ASF Motor cable and ASF Encoder cable
ASF Encoder cable
Connect to Relay
connector
ASF Motor cable
Connect to
connector on ASF
Encoder Board
ASF Motor

Epson WF-4640 Series Specifications

General

Max Print Resolution	4800 x 1200 dpi
Automatic Duplex Printing	Yes
Scanner Type	Color flatbed / ADF
Max Scan Resolution	1200 x 2400 dpi
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct, NFC
Functions	Print, Copy, Scan, Fax
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print
Ink Type	DURABrite Ultra pigment ink
OS Compatibility	Windows, Mac
Print Technology	Inkjet
Print Speed (ISO)	20 ppm (black), 20 ppm (color)
Paper Capacity	80 sheets rear feed
Display	color touchscreen
Weight	31.3 lbs
