Adjustment Details of Adjustments 62
Epson WF-5690/4640/4630/5620/5190/5110 series Revision D
3.2.3.2 Adjustment Procedure
 Tool
Specified Scanner for Head Angular Mechanism Adjustment : Perfection V600 Photo / V550 Photo
 Method of the Head angular adjustment.(Using the particular Scanner)
1. Start the product in the “Printer Inspection Mode” in accordance with "3.2.3.1 Preparation of the Head
Angular Adjustment (p60)".
2. Select the “Head angular mecha adjustment” from menu of adjustment program, and print the head angular
adjustment pattern

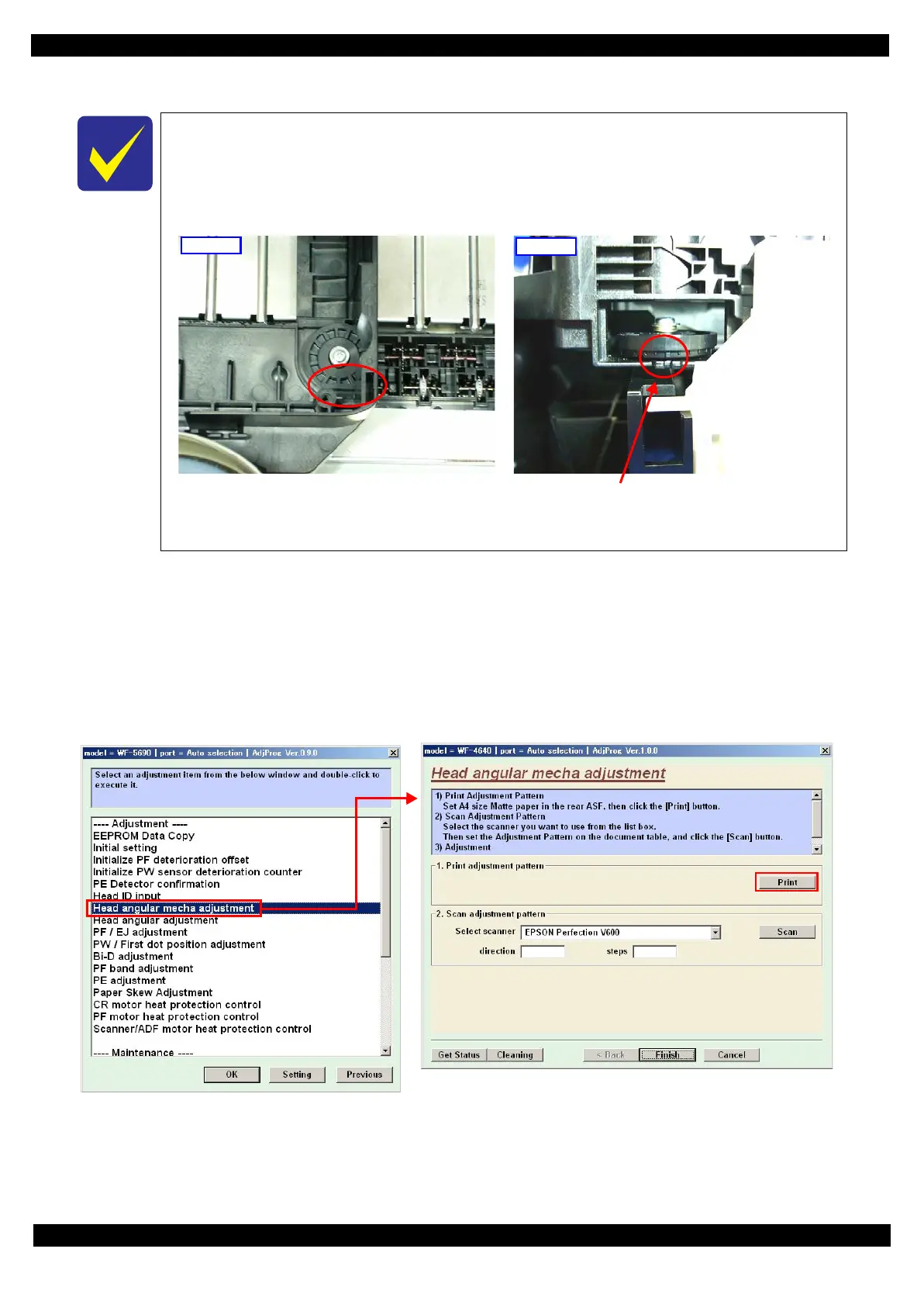

Figure 3-10. Procedure of the Head Angular Adjustment (1)
 The head angular adjustment has two kinds of adjustment method.
• Using the particular scanner
• Using the visual adjustment pattern
 In this adjustment, make sure to set the dial at the origin position with the follows before
perform the Head angular adjustment.
Figure 3-9. Origin position of the adjustment dial
Right side
Top
Bold line is origin position (“0” position)
