QX50/QX200/QX2000; (SW Version 6.0.x) 16
QX50/QX200/QX2000 Manual I: Installation Guide
• A QX50/QX200 used as a Router, connected directly to the Internet.

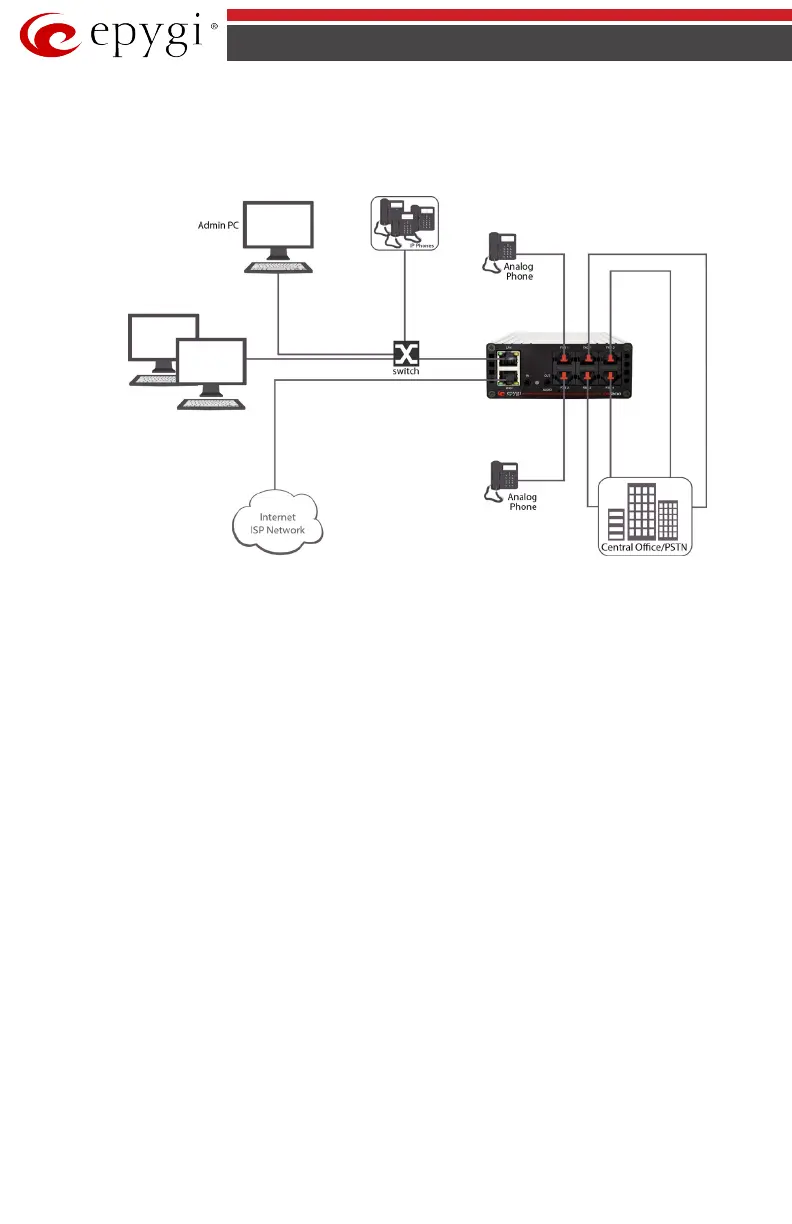

Fig.I- 6: Configuration: QX50/QX200 used as a Router
Please Note: As the QX50/QX200 has limited LAN/WAN connectivity, this scenario is not in-
tended for high traffic networks.
The Admin PC, other PCs and IP phones are connected to the Switch that is connected to the
QX50/QX200 LAN port. The QX50/QX200 can be configured as a DHCP server to provide the
network parameters to the devices on its LAN.
