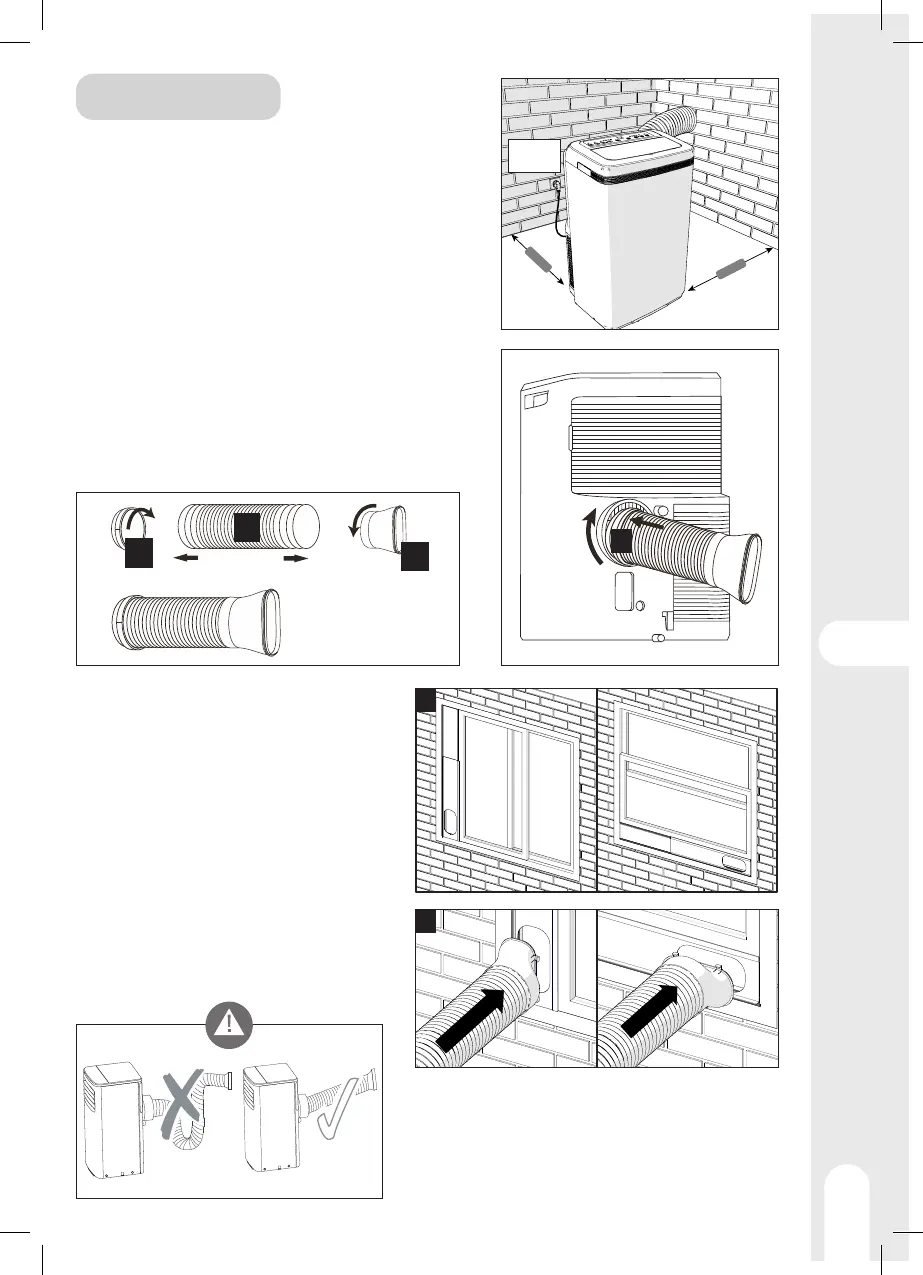

INSTALLATION
Choose a location that meets these criteria:
• The ground must be flat and stable
• A distance of 50 cm between the walls and the appliance must be
respected
• The device must be plugged into a wall outlet which must remain
accessible once the device is plugged in.
• It is essential to connect the external exhaust for use in cooling mode or
in dehumidification mode
Connection of the exhaust duct
Connection is mandatory for use in Cooling or Dehumidification mode,
but not necessary in Ventilation mode.
The exhaust duct can be connected into a wall or installed to a window.
1 - Fix adaptor A (device connection) on the pipe
2 - Fix adaptor B (window connection) on the pipe if necessary
3 - Clip adaptor A onto the device
4 - Connect the hose to the outside outlet.
Install the Window Slider Kit
(for sliding windows)
1 - Attach the window slider kit to the window sash.
Adjust the length of the Window Slider Kit, then
tight the screws. The length of the Window Slider
Kit is 67.5cm to 120cm.
2 - Clip adaptor B onto the window kit
>50cm
>50cm
220-240V
50Hz
