PIR MOTION SENSOR PLACEMENT
1.
2.
To activate your PIR Motion Sensor, pull out the battery tab from the
top of the sensor located inside the battery compartment.
Choose your location. For the best coverage place the sensor 2.3m
above floor level on a flat surface. With no obstructions the sensor can
detect motion up to 12m at a 90° angle at room temperature (25°C) -
when installed parallel to the wall.

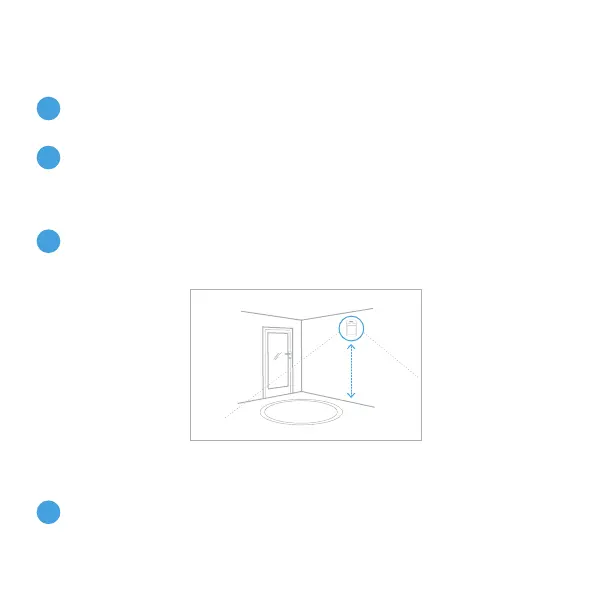

Please make sure your PIR Motion Sensor is installed the correct way
up as indicated by the arrow on the rear of the sensor and the diagram
below.
3.
2.3 M
There are two ways to attach the sensor to the wall:
1.
Adhesive mounting: Attach the double sided adhesive pad to the back
of the Motion Sensor (adhesive pad is located in the accessory box).
Once the PIR is attached, remove the protective backing from the tape,
press and hold firmly against the wall for 15 seconds.
