Instruction manual for installation and operation of automatic pellet burner “ERATO GP20+”
(Version : 02.02.2010 10:36) p. 13/50

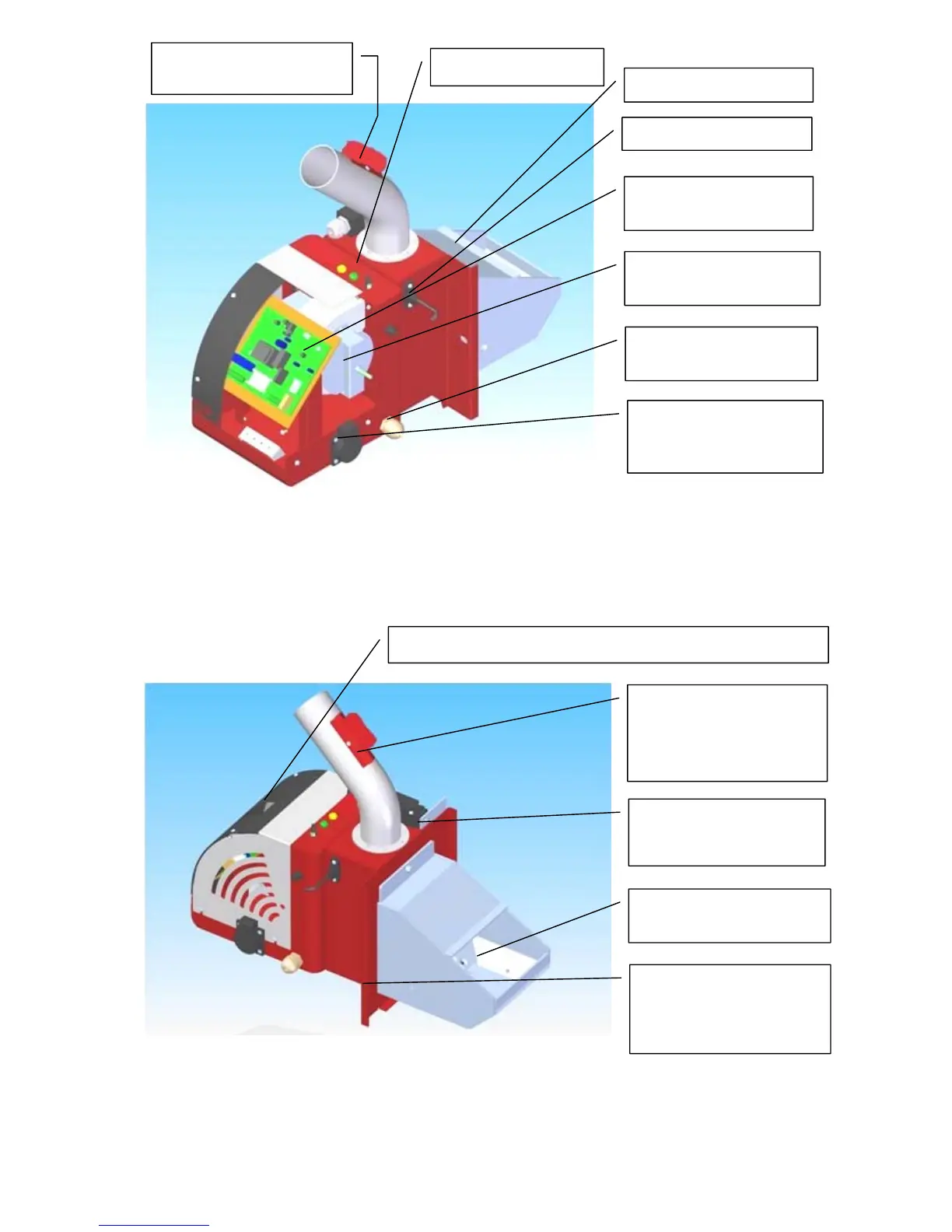

Figure 3.2 Section view of the elements of the main unit of the burner;
Figure 3.3 Side view of the main unit of the burner;
Combustion chamber
Photosensor
Power supply cable
Auger power supply
plug
Control board of the
burner
Interface panel
Flap and air supply fan
“Back fire” safety alarm
thermo-
p
robe
Fuel delivery pipe and
“back fire” safety
thermo-probe
Grate of the combustion
chamber
“L” shaped element and
on-position safety
sensor
Installation flange for
attaching the main
module to a consumer
unit
Control board monitoring transparent window
