Instruction manual for installation and operation of automatic pellet burner “ERATO GP20+”
(Version : 02.02.2010 10:36) p. 17/50

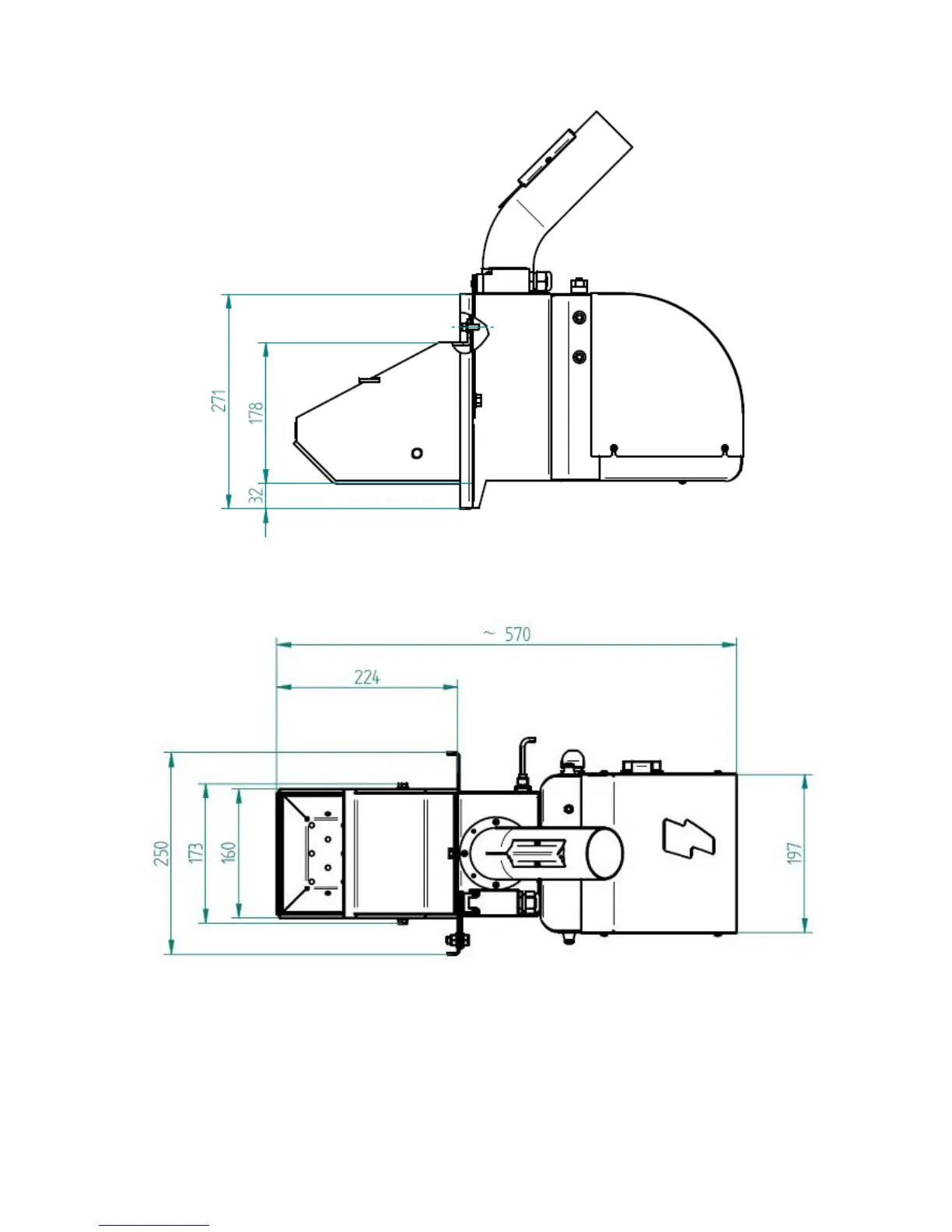

Figure 4.2. Overall and characteristic dimensions of the main unit – side
view;
Figure 4.3. Overall and characteristic dimensions of the main unit – top
view;
