Erbauer ERB2504SE - Adjustment Instructions; Adjusting Blade Parallel to Mitre Gauge

ERBAUER 250MM TABLE SAW
ERBAUER 250MM TABLE SAW
ERBAUER 250MM TABLE SAW
ERBAUER 250MM TABLE SAW
INSTRUCTIONS
INSTRUCTIONS

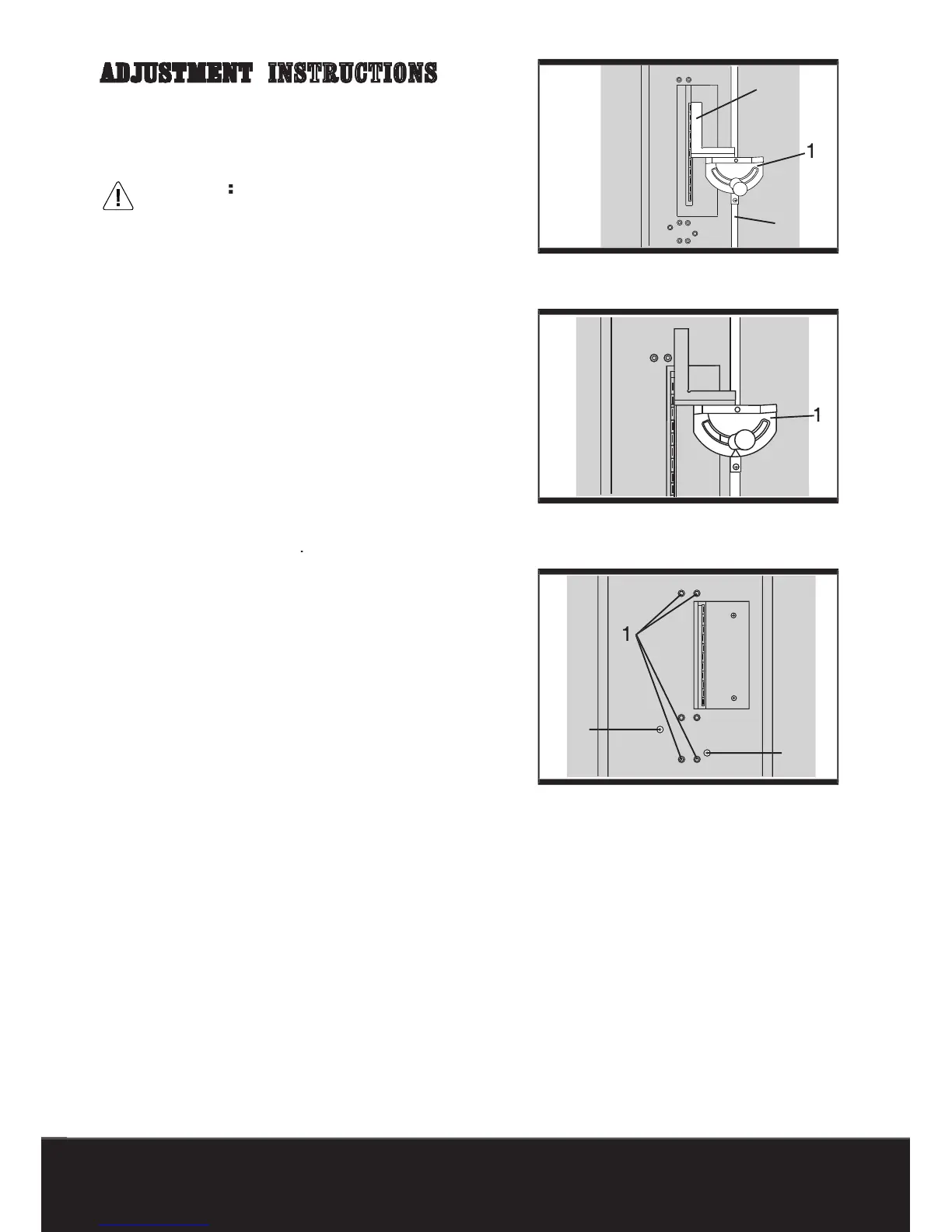

1.
Adjusting the blade parallel to the
mitre gauge
groove
Warning
:
This adjustment must be
correct or kickback could result and
correct or kickback could result and
correct or kickback could result and
correct or kickback could result and
accurate cuts cannot be made.
1) Raise the blade to its highest position and set
it to 0° bevel angle.
2)
Select a tooth on the saw blade which is
bent to the
right. Mark that tooth with a pencil or
permanent
marker.
3) Place the mitre gauge (1) in the right hand
groove (2) on the
table top. Set the mitre gauge
to 90° and tighten the gauge
handle to lock it in
that position.
4) Rotate the blade to bring the marked tooth in
the front and about 13 mm above the table top.
Place the bar of square (3) fl at against the mitre
gauge and move the bar toward the saw blade
until it just touches the tip of the marked saw
blade tooth
(See
fi g. 12)
.
5) Without disturbing the bar clamped to the
mitre gauge (1), move the mitre gauge to the
centre of the saw blade. Rotate the blade so the
marked tooth is at the rear and about 13 mm
above the table top.
6) Slide the mitre gauge rearward until the
clamped bar is closest to the tip of the marked
tooth
(See
fi g. 13).
7) If the bar just touches the tooth when the
gauge was in the front position, it should touch
the tooth in the rear position.
8) If the front and rear clearance are not
identical, remove the mitre gauge, loosen four
screws (1) and carefully grasp the saw blade.
Make necessary correction until measurements
taken at the front and
rear are identical. Tighten
the four screws (1)
(See
fi g. 14)
.
Fig
12
Fig
13
Fig
14
1
2
3
1
1
1
2
3
