18V COMBI DRILL ERI603COM

WARNING:
When battery charge runs out after
continuously use or exposure to direct sunlight
or heat, allow time for the tool to cool down
before re-charging to achieve the full charge.
CHARGING INDICATOR
This charger is designed to detect some problems
that can arise with battery packs. Indicator lights
indicate problems (see table below). If this occurs,
insert a new battery pack to determine if the charger
is OK. If the new battery charges correctly, then the
original pack is defective and should be returned to
a service center or recycling service center. If the
new battery pack displays the same problem as the
original Battery Pack, have the charger tested at an
authorized service center.
Light
ON/OFF
flash
Status
Red on
Charging
Red flash
- - - - - Defective Battery
Green on
Fully Charged
Green flash
- - - - - - Hot/Cold Delay
OPERATION

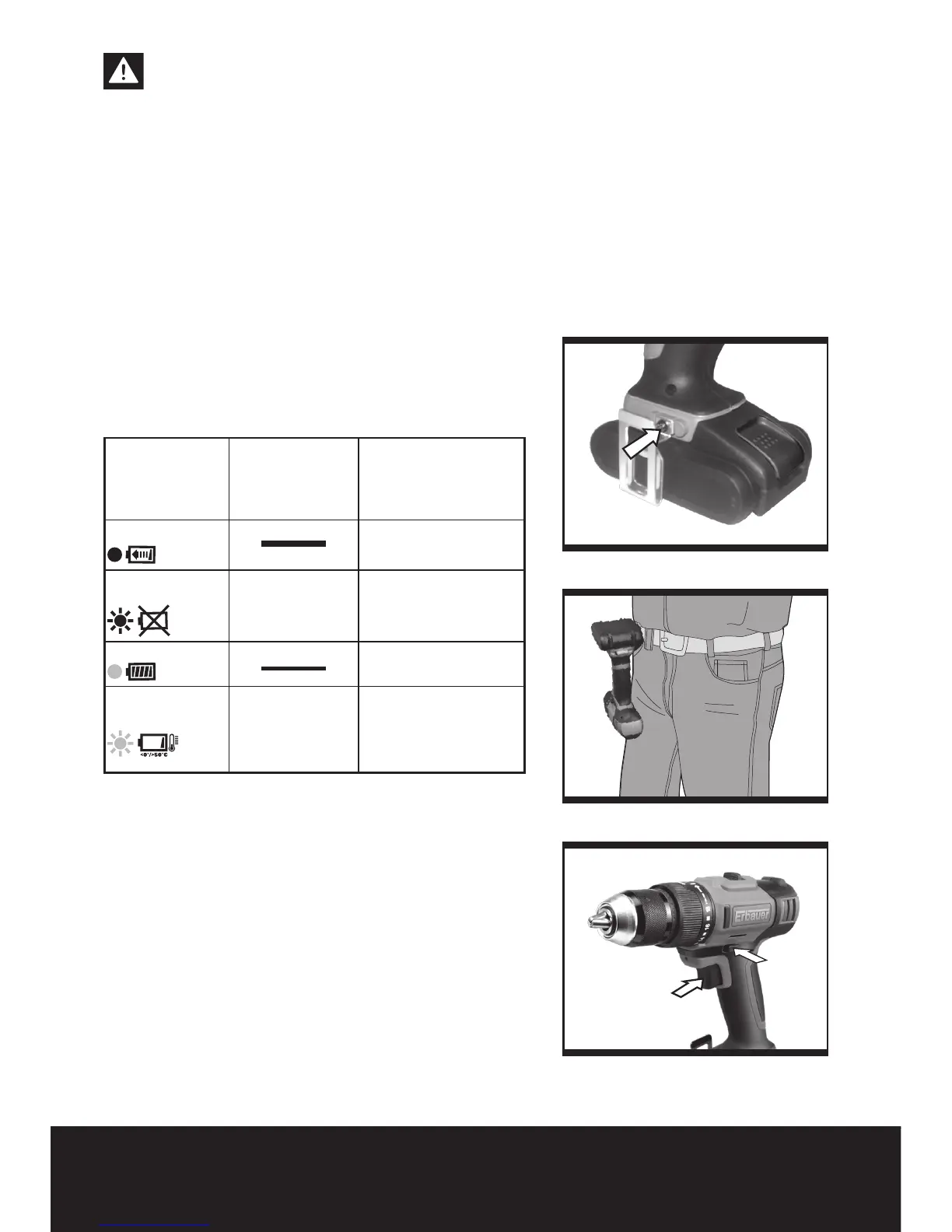

1. HOW TO USE THE BELT HOOK (See Fig.
2-1&2-2)
Screw the Belt Hook on the tool with the screw
provided in the plastic bag. The Belt Hook can be
hooked on your belt or pocket, etc.
2. ON / OFF SWITCH (See Fig. 3)
Depress the On/Off switch to start and release it to
stop your drill. The on/off switch is fitted with a brake
function which stops your chuck immediately when
you quickly release the switch.
