Ergoline Vertical
User manual
Seite 11 von 29

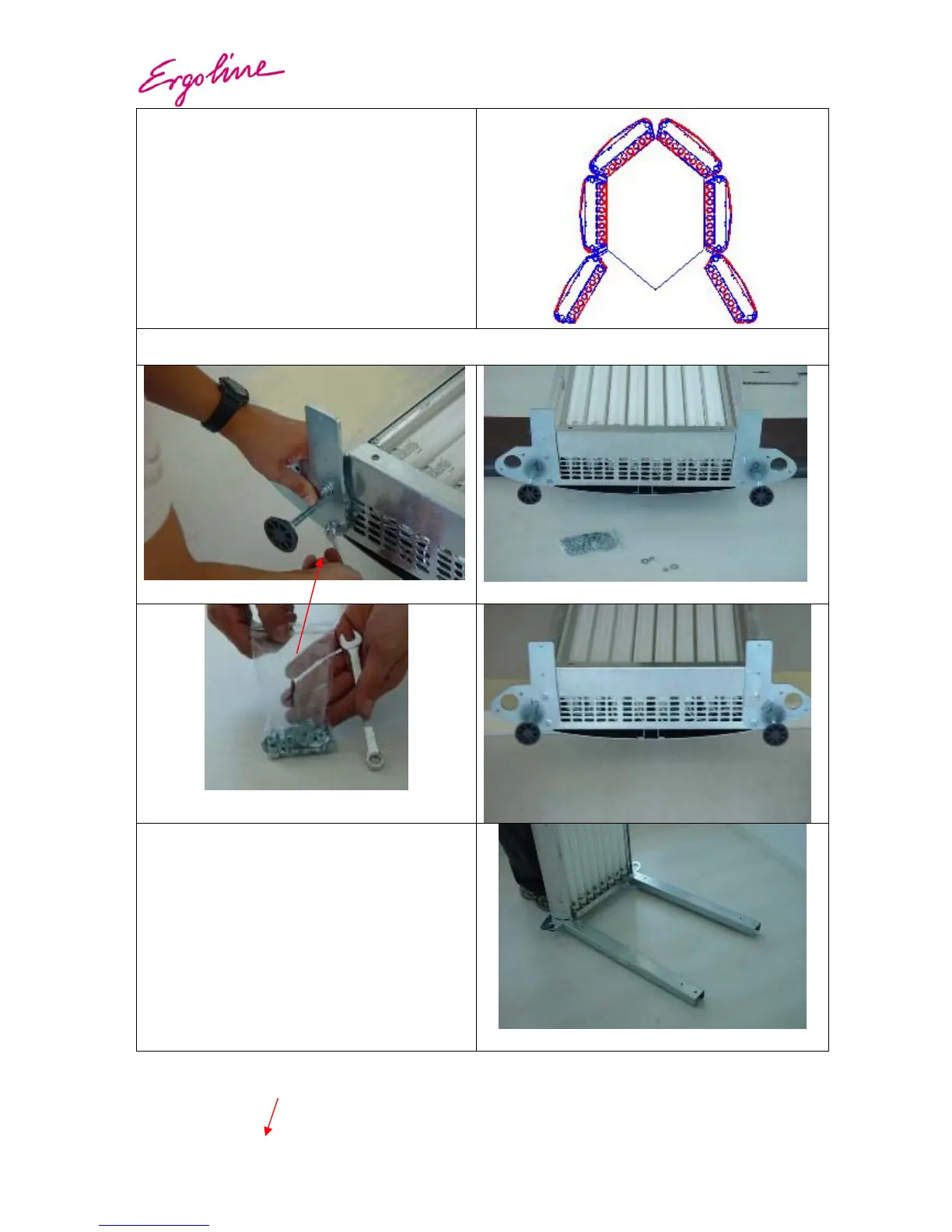

Each panel of the unit is signed with a number
from 1 to 6 (see on the right), so you can see
which is the right position of the panel.
Fix the brackets on the bottom side of panel 2 (brackets number 1 and 2) and panel 5 (brackets number
4 and 5), and insert the feet. For fixing brackets use nuts into bag 1B.
Insert the 2 long metal brackets on panel 2, then
fix them with screws in bag 1A (see below);
Do not fix at all for the moment.
Panel 2
Panel 5
1B
1A
3
4
5
1
2
6
