A1018s/A1018sc Standard Electrical Repair
4/00021-2/FEA 209 544/16.B 37 (42)
If the fault still remains, send the phone to the next repair level.
9.5 Green top indicator doesn´t work.
Open the phone and check for liquid damages.
If the red top indicator doesn´t work either (to check it see section 1), measure the
resistance of R646 (~470 Ohm) and check the soldering of it (R646).

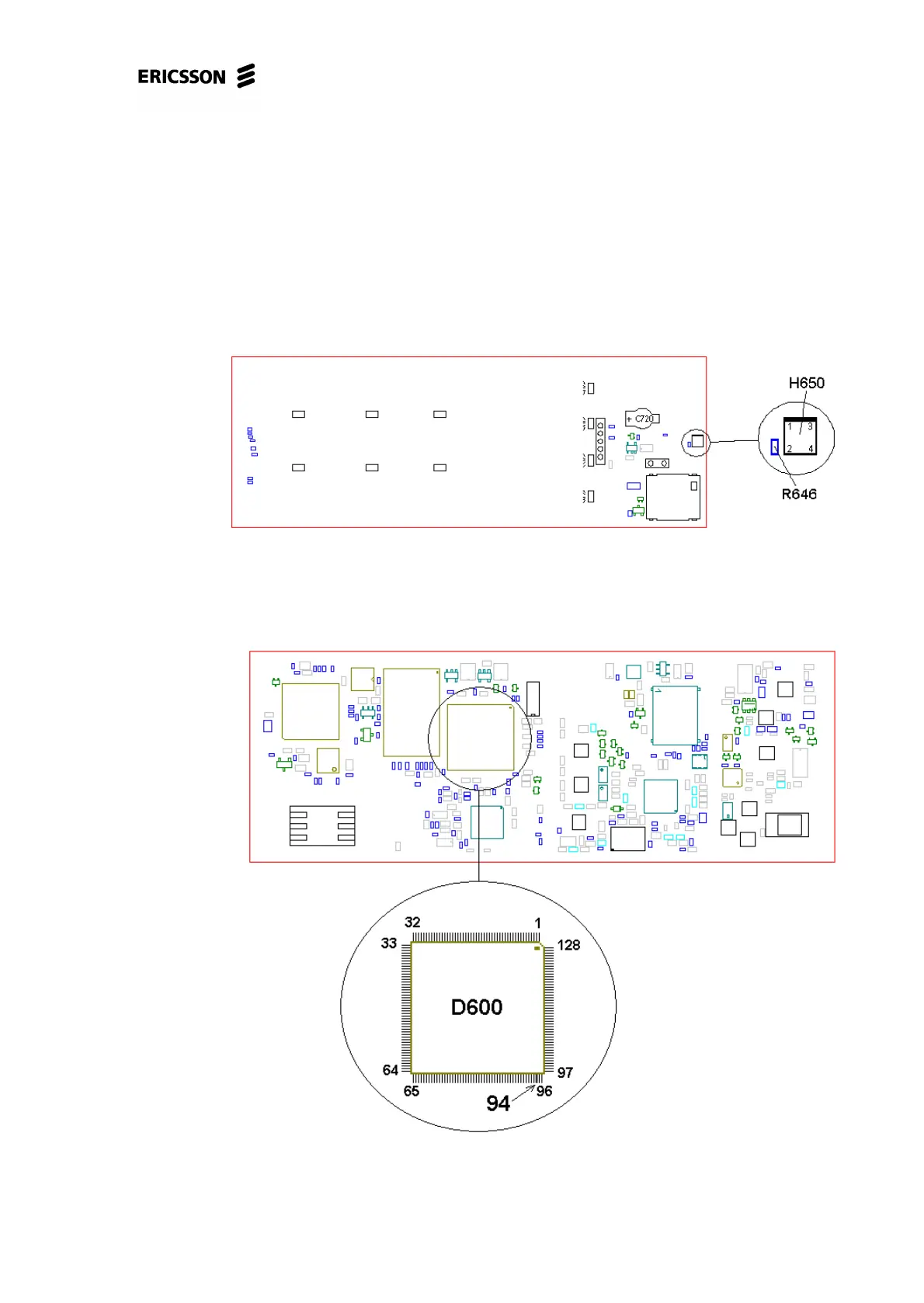

Fig. 9.7
Make sure the double LED H650 (class A, Fig. 9.7) or D600:94 (Fig. 9.8) is cor-
rectly soldered.
Fig. 9.8
