MOUNTING REQUIREMENTS
Select a location, for instrument mounting, where
minimum vibrations are present and the ambient
temperature is within 0 and 50 °C (32 and
122 °F).
The instrument can be mounted on a panel up to
15 mm thick with a cutout of 92 x 45 mm (PKC) or
92 x 92 (MKC).
For outline and cutout dimensions refer to Fig. 2.
The surface texture of the panel must be better
than 6,3 mmm.
The instrument is shipped with rubber panel
gasket (50 to 60 Sh).
To assure the IP65 and NEMA 4 protection, insert
the panel gasket between the instrument and the
panel as shown in fig. 1.
While holding the instrument against the panel
proceed as follows:
1) insert the gasket in the instrument case;
2) insert the instrument in the panel cutout;
3) pushing the instrument against the panel;
4) insert the mounting brackets as shown in fig.1;
5) with a screwdriver, turn the screws with a
torque between 0.3 and 0.4 Nm.

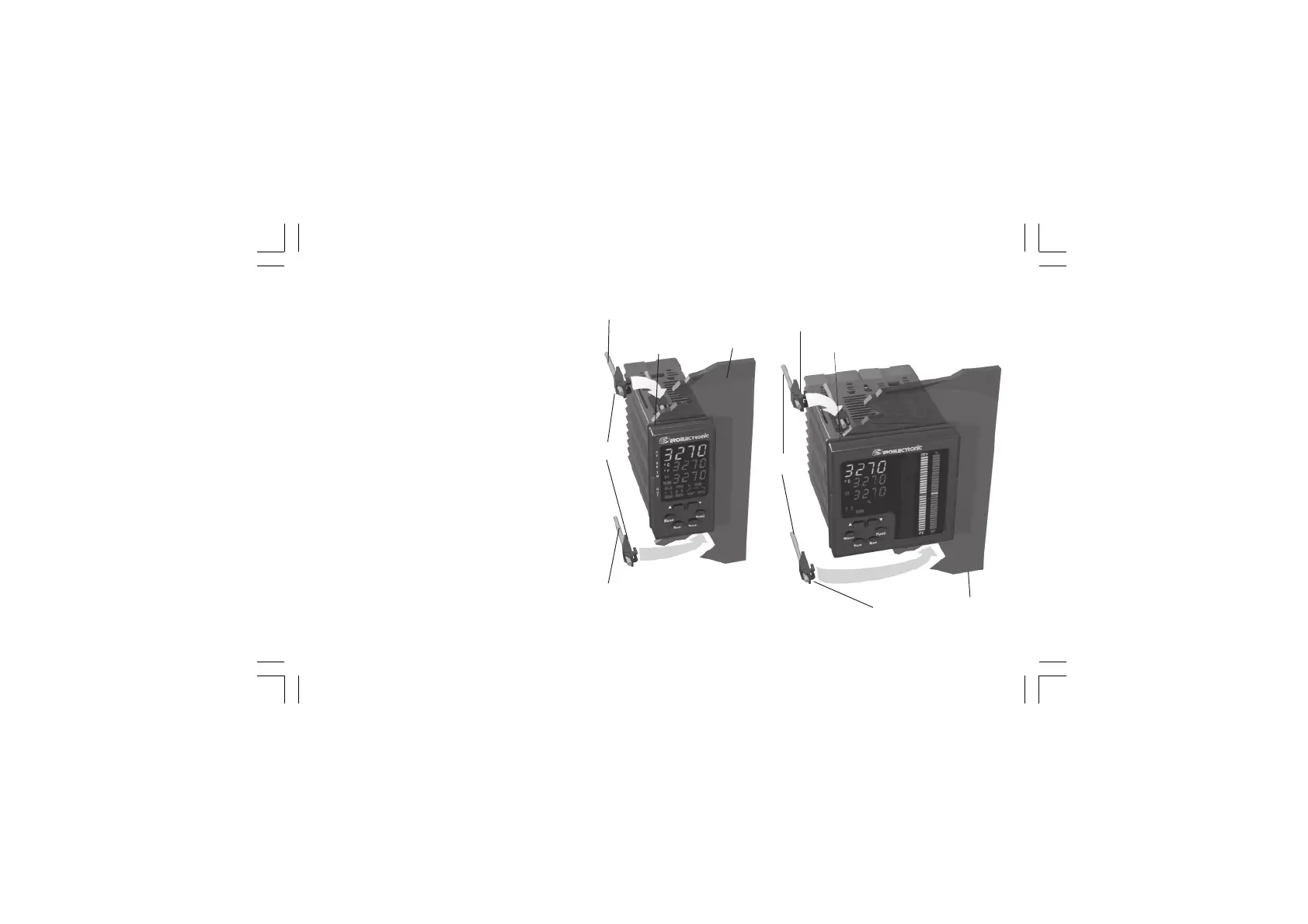

Fig. 1
Gasket
bracket
bracket
Panel
Screws
Screw
Panel
Screw
brackets
Gasket
