27

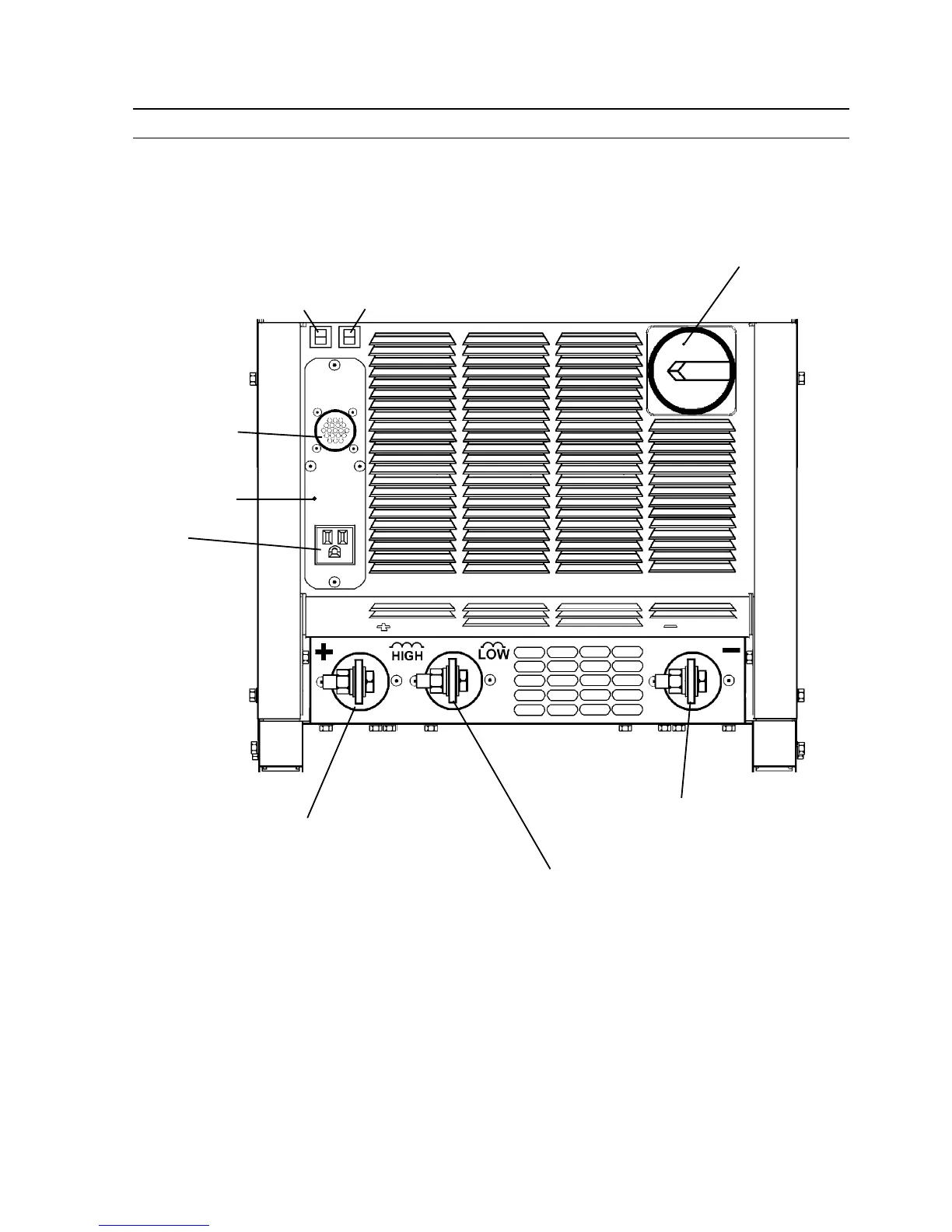

Figure 3-5. Connection Diagram
653CVCC
3.4
Negative
Output
Receptacle
3.4, 4.1.7
High Inductance for
STICK WELDING (SMAW)
SUBMERGED ARC WELDING (SAW)
ARC CUTTING/GOUGING (CAC-A)
MIG WELDING (GMAW) optional
Positive Output
Receptacle
3.4, 4.1.7
Low Inductance for
MIG WELDING (GMAW)
FLUX CORED WELDING (FCAW)
ARC GOUGING (CAC-A) optional
PosItive Output
Receptacle
3.5.5
CB2
3.5.4
CB1
4.1.1
POWER "ON-OFF"
SWITCH
3.5.1
WIRE FEEDER
CONTROL
RECEPTACLE
REMOVABLE
PANEL
3.5.3
115V ac
AUXILIARY
RECEPTACLE
SECTION 3 INSTALLATION
