ESAB A6S Arc Master - OPERATION; Starting work

- 13 -
hfb6d1ea
4 OPERATION
4.1 General
General safety regulations for the handling of the equipment can be found on
page 5. Read through before you start using the equipment!
4.2 Starting work

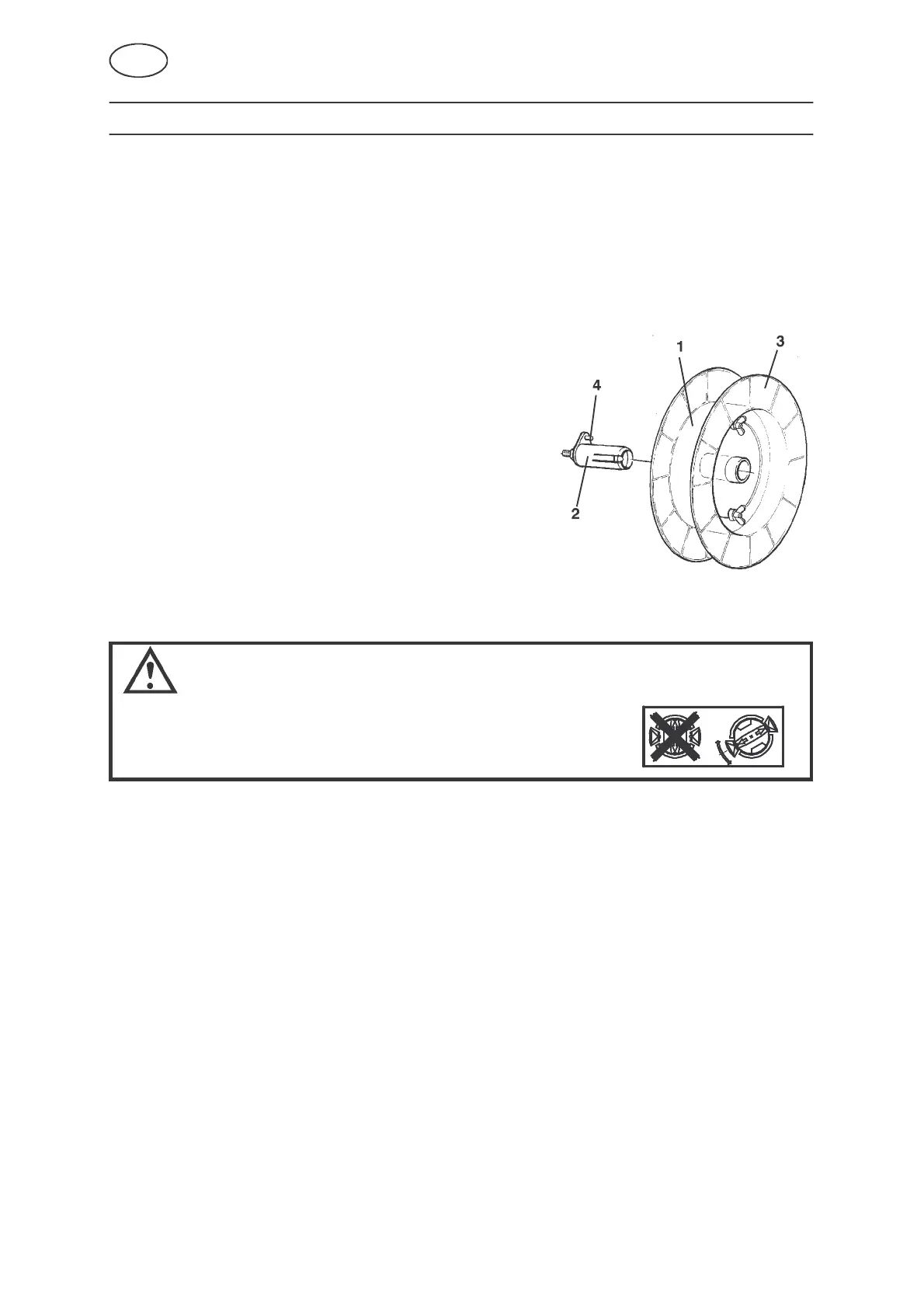

Loading the welding wire
 Remove the wire drum (1) from the brake hub (2)
and take off the side plate (3).
 Locate the wire reel on the wire drum (1).
 Cut off the binding wires from around the
wire reel.
 Fit the side plate (3).
 Fit the wire drum (1) on the brake hub (2).
Check that the carrier (4) is in the correct position.
NOTE! The maximum angle for the wire bobbin is 25.
At extreme angles, wear will occur on the brake hub locking
mechanism and the wire bobbin will slide off the brake hub.
WARNING
To prevent the reel sliding off the hub:
 Lock the reel in place by turning the red knob as shown
on the warning label attached next to the hub.
