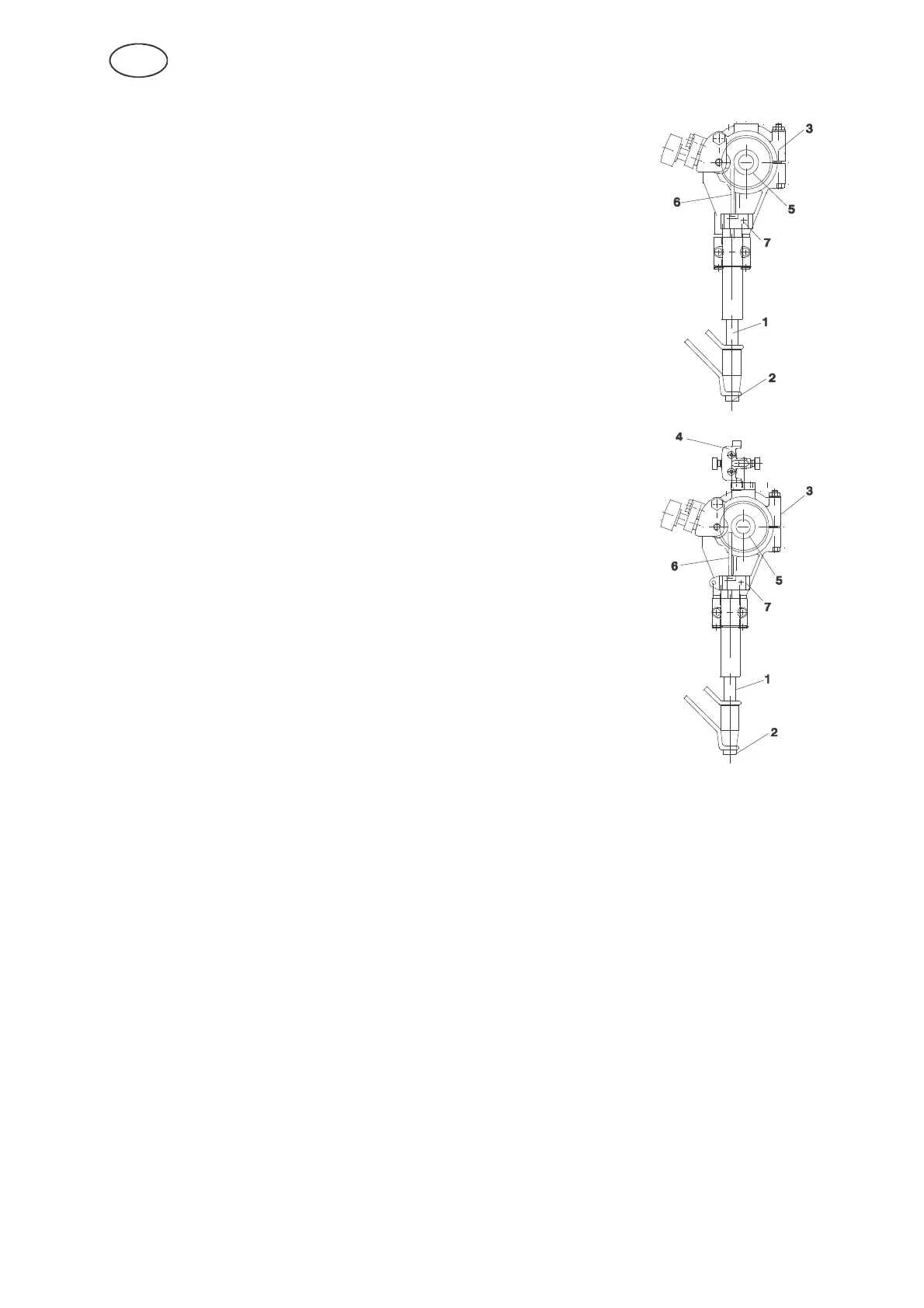

Contact equipment for MIG/MAG welding.
 For single wire 1.6 - 2.5 mm (D35)
Use the straightener (3), connector (1) D35 with contact
tip (2) (M10 thread).
 Tighten the contact tip (2) with a key to ensure that a
good contact is achieved.
 Fit the clamp (7) with guide tube (6) in the M12 hole on
the standard straightener (3). The guide tube (6) should
bottom on the contact tip (2).
 If necessary, cut the guide tube (6) to length so that the
feed roller (5) runs freely.
 For single wire < 1.6 mm (D35)
Use the straightener (3), connector (1) D35 with contact tip (2)
(M12 thread), fine wire straightener (4) with guide tube (6)
and guide spiral, which is inserted in the guide tube (6).
 Fit the clamp (7) with guide tube (6) in the M12 hole on
the standard straightener (3). The guide tube (6) should
bottom on the contact tip (2).
 If necessary, cut the guide tube (6) to length so that the
feed roller (5) runs freely.
 Fit the fine wire straightener (4) on the upper side of the
clamp for the straightener (3).
 Connect the cooling water and gas (MIG/MAG welding).
Filling of flux (Submerged arc welding)
 Close the flux valve on the flux hopper.
 Remove the cyclone on the flux recovery unit, if fitted.
 Fill with flux .
NOTE! The flux powder must be dry.
 Position the flux tube so that the flux hose does not become kinked.
 Adjust the height of the flux nozzle above the weld so that the correct amount of
flux is delivered.
The flux coverage should be high enough to prevent the arc from burning
through.
4.3 Conversion of A6 SFE1 (Submerged arc welding) to MIG/MAG
welding
Assemble the conversion kit according to the instructions provided.
4.4 Conversion of A6 SFE1 / A6 SFE2 (Submerged arc welding) to
Twin-arc
Assemble the conversion kit according to the instructions provided.
