5 OPERATION
General safety regulations for the handling of the equipment can be found on
page 4. Read through before you start using the equipment!
5.1 PFC - Power factor correction
The Caddy Arc 151i/201i are 230 V single-phase power sources equipped with a
PFC circuit making it possible to use the full range of the machine on a 16 A fuse.
The PFC also protects the machines against fluctuating mains voltage and makes it
safer to use with a generator. Caddy Arc 151i/201i can operate with extra long
mains cables, over 100 m, giving you a very larger working radius.

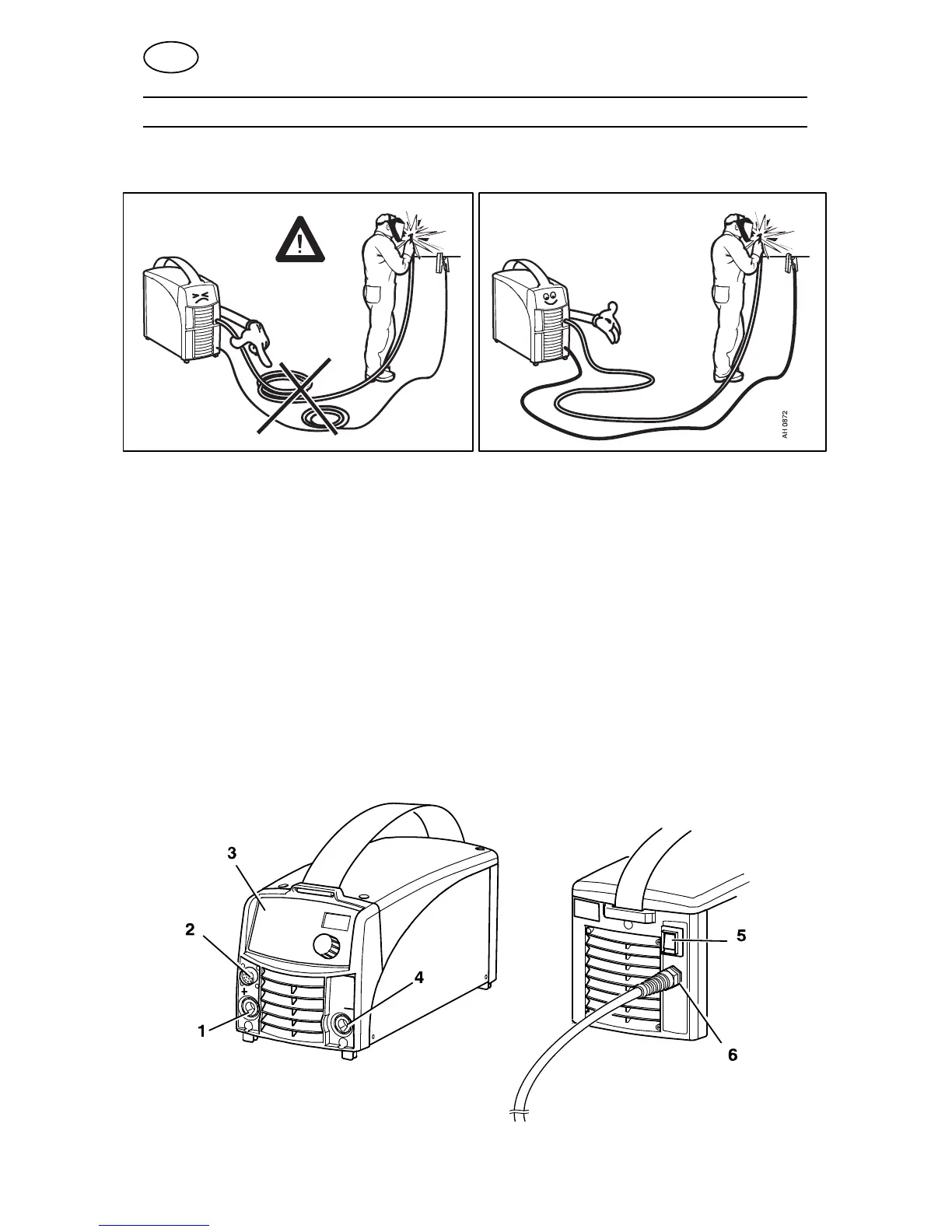

5.2 Connections and control devices
1 Connection (+)
MMA: for return cable or welding cable
TIG: for return cable
4 Connection (+)
MMA: for return cable or welding cable
TIG: for Tig torch l
2 Connection for remote control unit 5 Toggle switch for mains power supply 0 / 1
3 Control panel, see under 2.2 6 Mains cable
