WARNING
Rotating parts can cause injury, take great care.
WARNING
There is a risk of tipping if the wire feed unit is fitted with a counterbalance arm.
Secure the equipment, especially if used on an uneven or sloping surface.
WARNING
Risk of crushing when replacing the wire bobbin!
Do not use safety gloves when inserting the welding wire between the feed rollers.

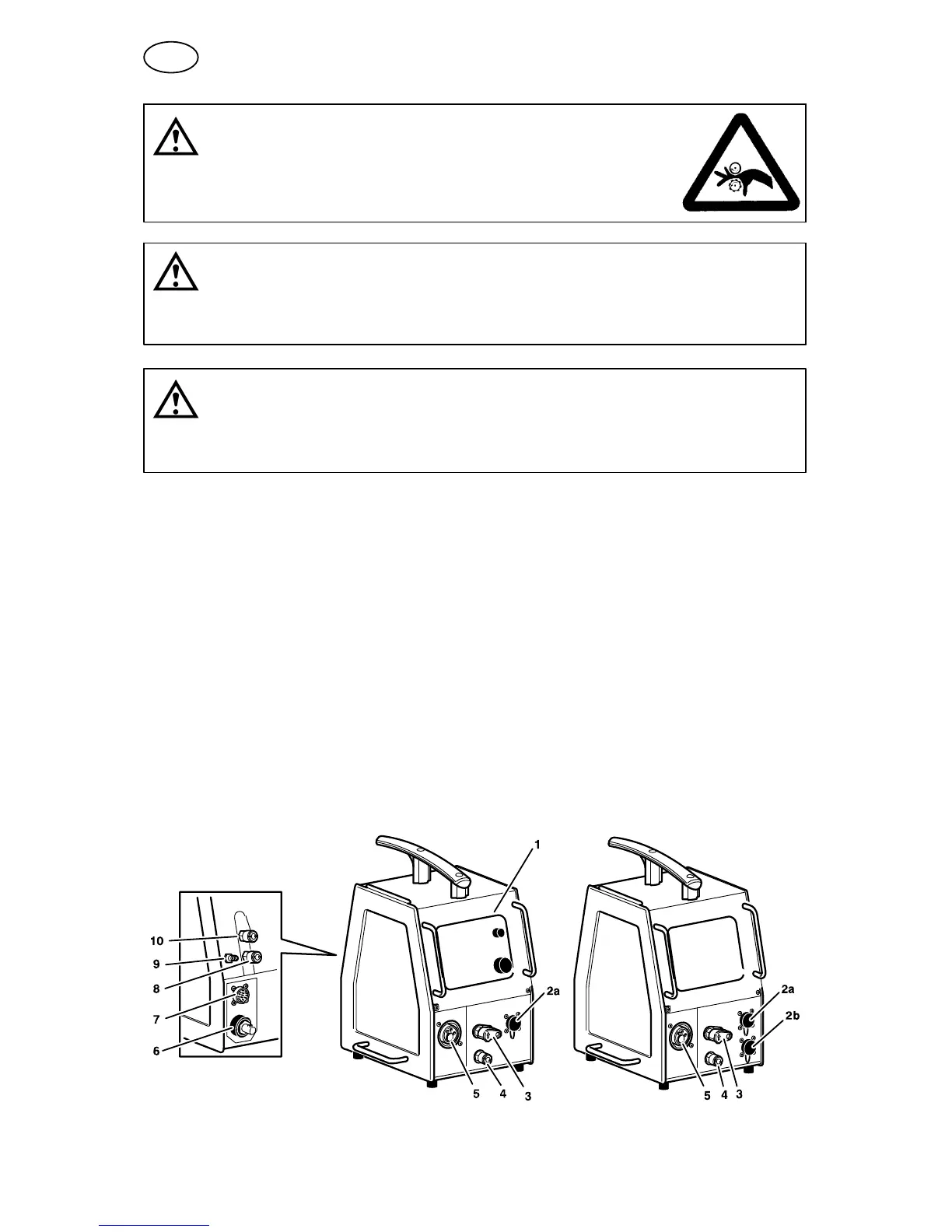

6.1 Connections and control devices
1 Control panel,
(see separate instruction manual)
6 Connection for welding current from power
source, (OKC)
2a
2b
Connection for remote control unit
Connection for U8
2
7 Connection for control cable from power
source or cooling unit
3 Connection BLUE, with ELP* for coolant to
the welding gun
8 Connection RED, for coolant to cooling
unit
4 Connection RED, for coolant from welding
gun
9 Connection for shielding gas
5 Connection for welding gun 10 Connection BLUE, for coolant from cooling
unit
Note! Coolant connections only available on certain models.
* ELP = ESAB Logic Pump, see point 6.2.
