ESAB CUTMASTER 60
OPERATION Manual 0-5402
4T-4

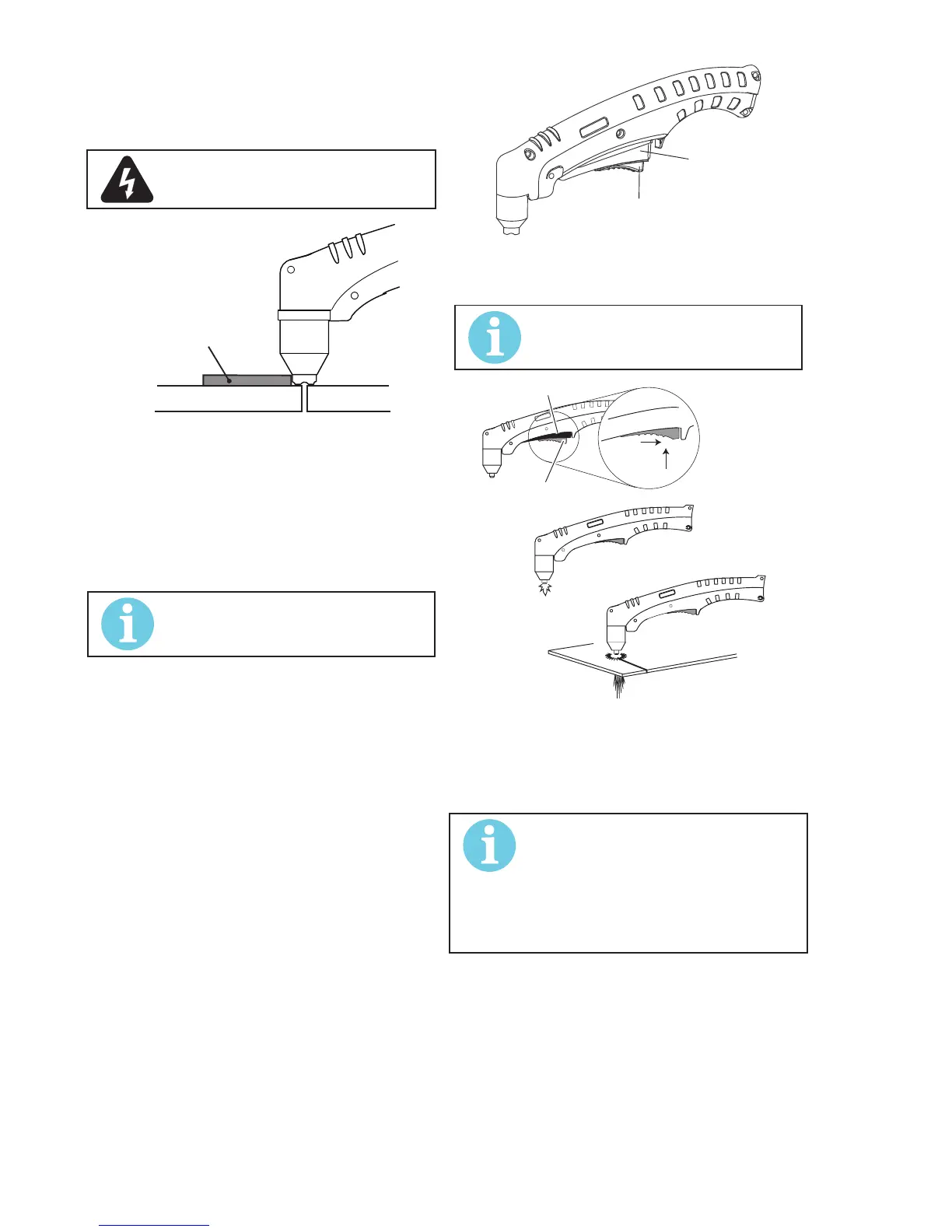

Shield Cup With Straight Edge
The drag shield cup can be used with a non
conductive straight edge to make straight cuts
by hand.
WARNING
The straight edge must be non - conductive.
A-03539
Non-Conductive
Straight Edge
Cutting Guide
Using Drag Shield Cup With Straight Edge
The crown shield cup functions best when cut-
ting 3/16 inch (4.7 mm) solid metal with relatively
smooth surface.
Drag Cutting With a Hand Torch
Drag cutting works best on metal 1/4" (6 mm)
thick or less.
NOTE!
For best parts performance and life, always use the
correct parts for the type of operation.
1. Install the drag cutting tip and set the output
current.
2. The torch can be comfortably held in one hand
or steadied with two hands. Position the hand
to press the Trigger on the torch handle. With
the hand torch, the hand may be positioned
close to the torch head for maximum control or
near the back end for maximum heat protec-
tion. Choose the holding technique that feels
most comfortable and allows good control and
movement.
3. Keep the torch in contact with the workpiece
during the cutting cycle.
4. Hold the torch away from your body.
5. Slide the trigger release toward the back of the
torch handle while simultaneously squeezing
the trigger. The pilot arc will start.
A-02986
Trigger
Trigger Release
6. Bring the torch within transfer distance to the
work. The main arc will transfer to the work,
and the pilot arc will shut off.
NOTE!
The gas preow and postow are a characteristic of
the power supply and not a function of the torch.
3
4
Art # A-03383
2
1
Tr igger Release
7. Cut as usual. Simply release the trigger as-
sembly to stop cutting.
8. Follow normal recommended cutting practices
as provided in the power supply operator's
manual.
NOTE!
When the shield cup is properly installed, there is
a slight gap between the shield cup and the torch
handle. Gas vents through this gap as part of normal
operation. Do not attempt to force the shield cup
to close this gap. Forcing the shield cup against the
torch head or torch handle can damage components.
