ESAB Heliarc 252 - Connecting Primary Power Leads

17
Rear Panel (Inside View)
2 Power Leads
Strain Relief
Ground Lead
(Green or Green w/ Yellow Stripe)
Connect to Ground Lug (GND1)
Located on A-Frame, Right Side
ON-OFF Power
Switch (S1)

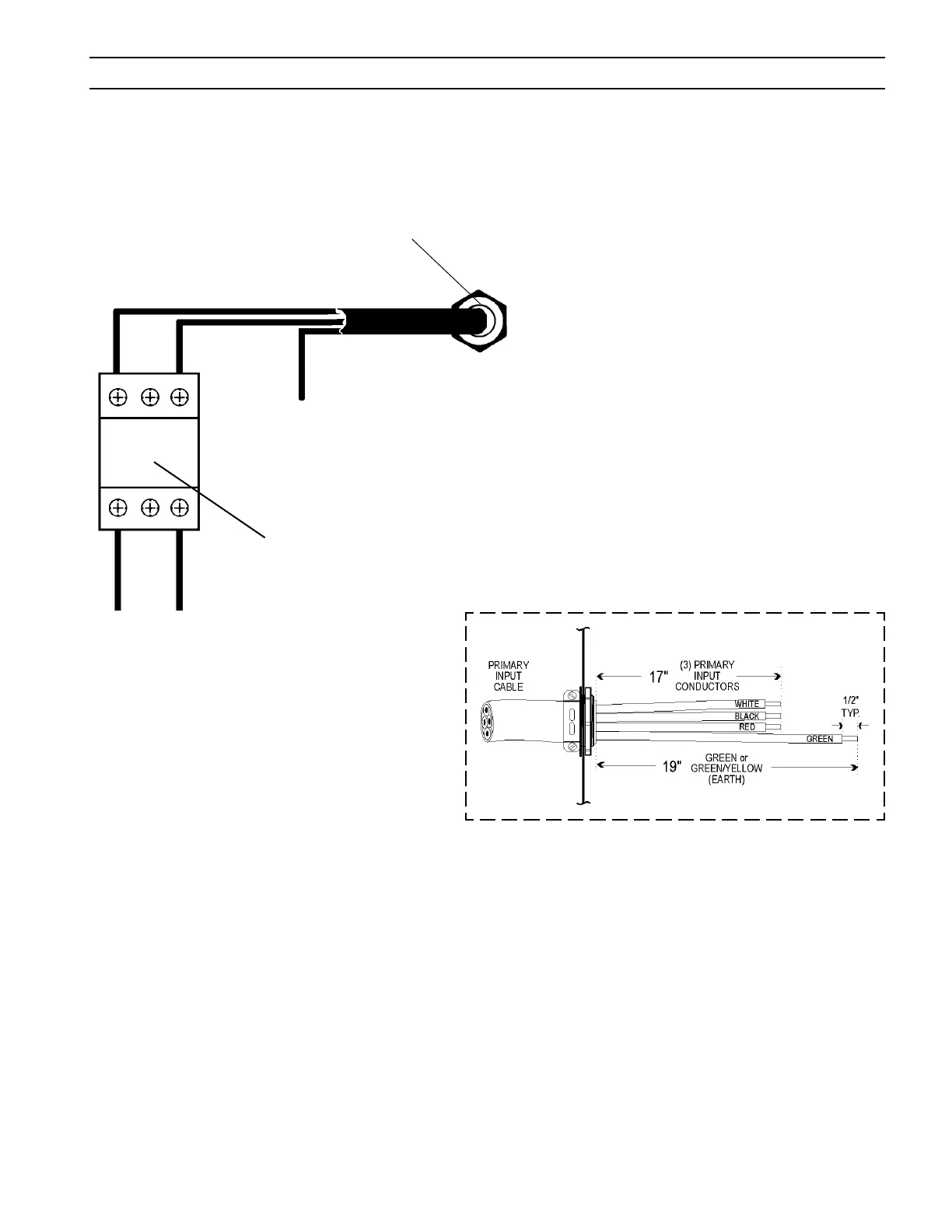

Figure 2-1. Connecting Primary Power Leads
Recommended Cable Strip Lengths
SECTION 2 INSTALLATION
