4.1.6 Dip Switch Setting of Main Control Board Assembly

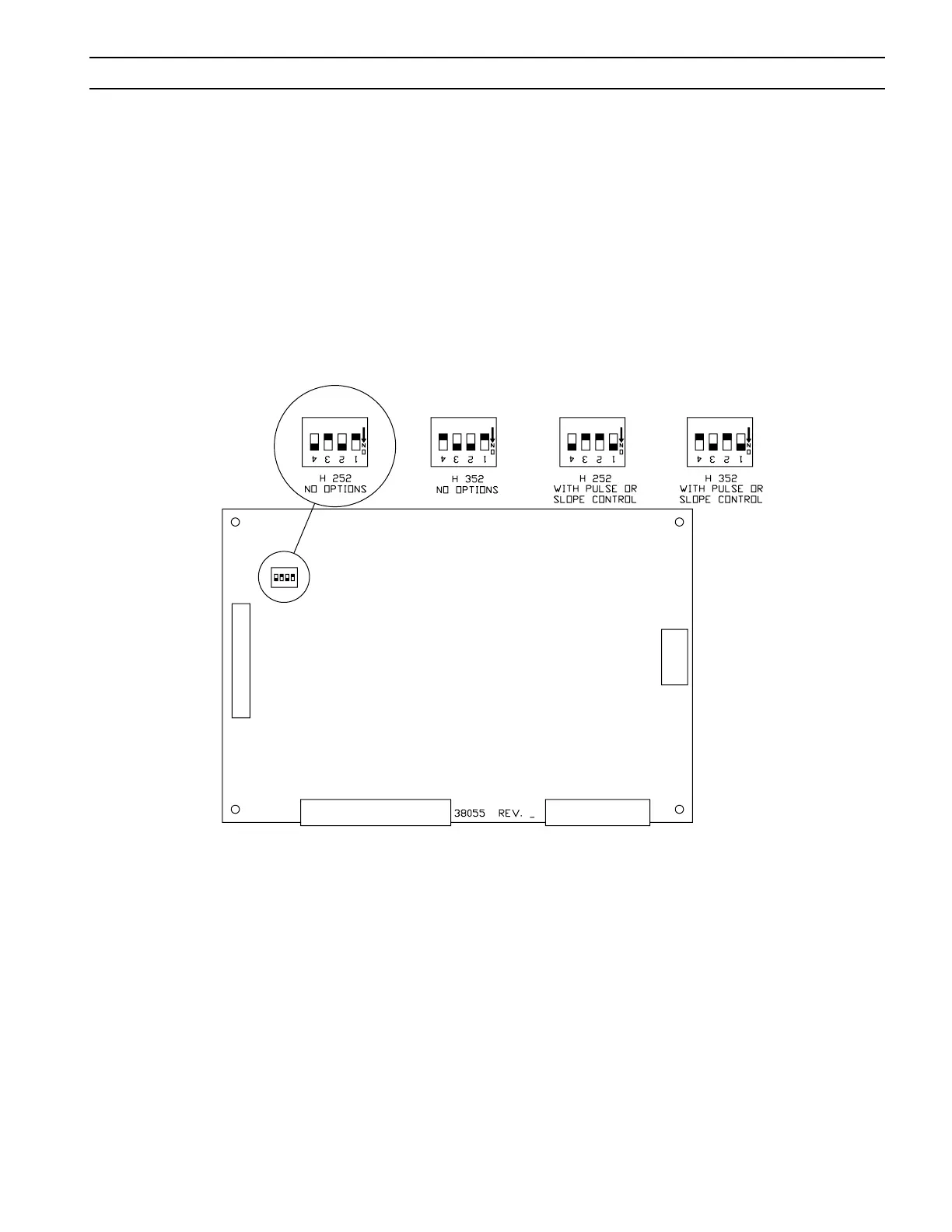

Referring to the diagram below, the dip switches on the Main Control PC Board
assembly (38055 or 38089) are factory positioned as shown with no options on
the Heliarc 252 and 352 power sources. If a pulse and/or slope control option
is installed, the dip switches must be repositioned as shown.
