ESAB MIGMATIC 250 - Page 9

ESAB MIGMATIC 250
28 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...

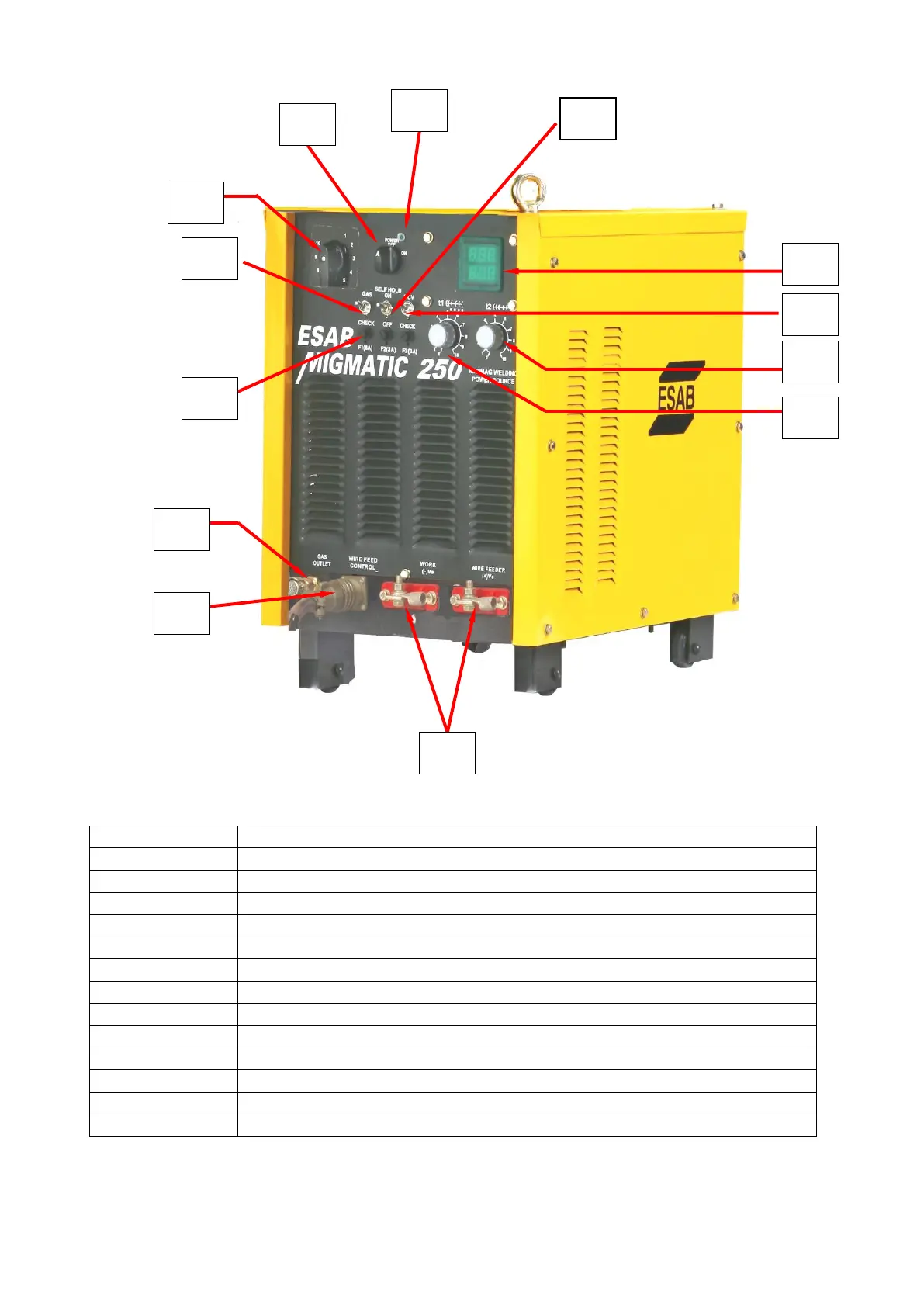

List of Items
Item No.
Description / Code
1
Power ON Lamp / 1651685051
2
Power ON-OFF Selector Switch / 1651685115
3
Voltage Selector Switch. / 0466401001
4
Gas Check Switch / 1651685177
5
Self-Hold ON/ OFF Selector Switch / 1651685116
6
OCV Check Switch / 1651685177
7
Gas Outlet to Welding Torch /
8
Socket for Wirefeeder Control cable connection /
9
Output Power Terminals / 1651685125
10
Digital V/ A Meter / 1611642301
11
Stitch Welding Timer Control /
12
Spot Welding Timer control
13
Control Fuses
6
1
2
3
4
5
6
7
8
9
10
11
12
13
