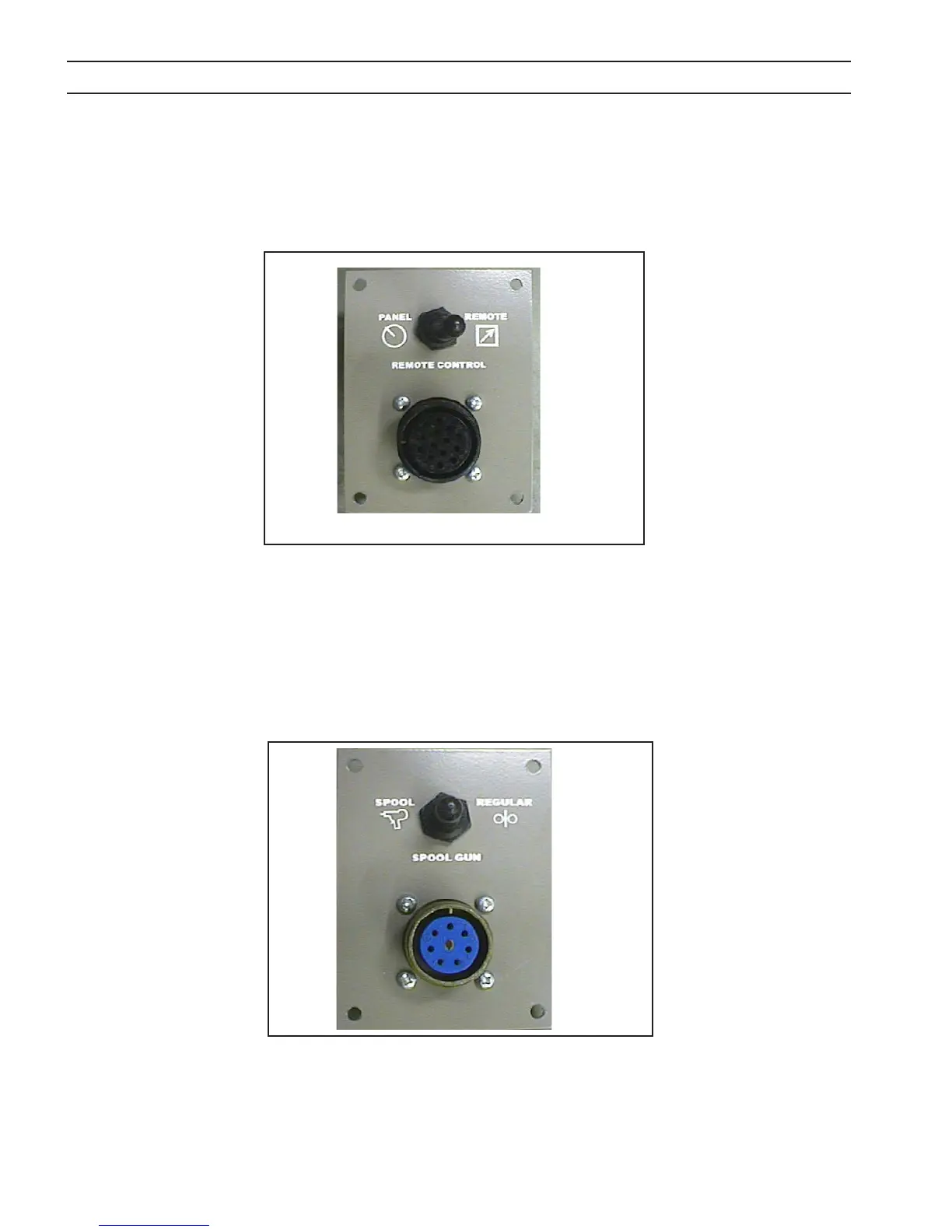

Figure 16 Remote Control Module
4.2.3 REMOTE CONTROL MODULE (OPTIONAL) P/N-0558002605 (Figure 16)
This optional control panel mounts to the front of the power source to the right of the main power switch (see Figure 13).
The remote receptacle can be used for a variety of options, such as a Tig current control, foot pedal control or manual hand
current control. The module includes a toggle switch to select between PANEL or REMOTE control of the welding current
and contactor. See Instruction Literature F15-618.
4.2.4 SPOOL GUN CONTROL MODULE (OPTIONAL) P/N-0558002606 (Figure 17)
This module mounts to the front panel just left of the Mig Gun trigger connectors and allows the use of either the MT-250-
SG or ST-23A spool guns with the Multimaster 260. The module has a switch to select either spool gun or regular Mig gun
operation. See Table 3 for MIG Spool Gun Paramaters. See Instruction Literature F15-619.
Figure 17 - Spool Gun Control Module
