53
SECTION 6 REPLACEMENT PARTS

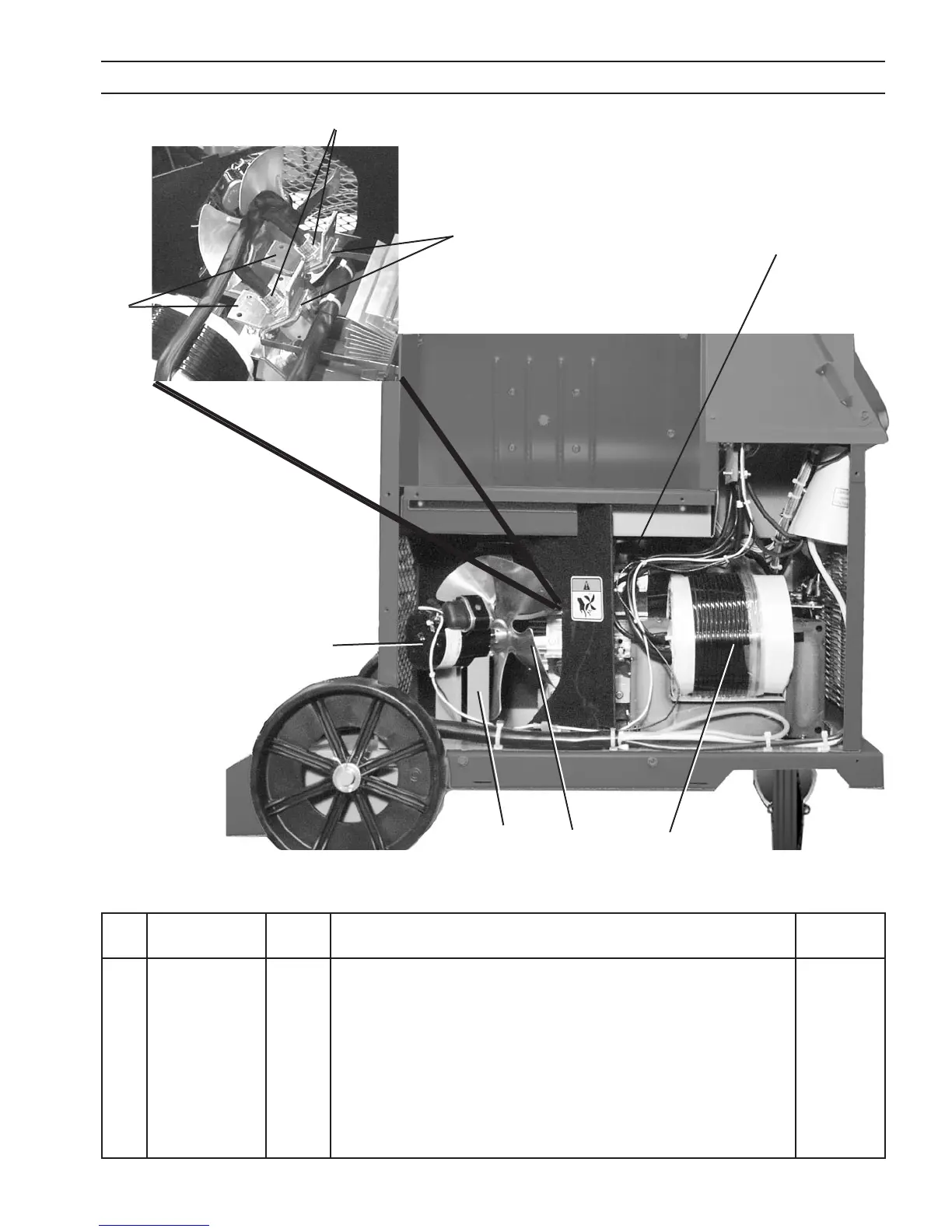

Figure 26 - Inside Left View of Multlimaster 260
QTY. ITEM CIRCUIT
No. REQ. NO. DESCRIPTION SYMBOL
60 0558001710M 1 FAN MOUNT
61 0558002490 1 MOTOR M1
62 950592 1 FAN BLADE
63 0558001577 1 MAIN TRANSFORMER 208/230V T1
0558001580 1 MAIN TRANSFORMER - 230/460/575V T1
64 99511915 2 DIODE REV 200V 250A D1,2
65 99511916 2 DIODE FWD 200V 250A D3,4
66 0558002562 4 DIODE HEATSINK, SMALL
67 0558002563 2 DIODE HEATSINK
68 9510711 1 THERMAL SWITCH TS2
69 951085 1 THERMAL SWITCH TS1
61
62
63
60
64,65
67, 68
66
69
To Next Page
