5.0 Removing the Fuel Bed Media
Remove all pieces of the fuel bed media from the firebox and place them in
a container carefully to avoid damage.
6.0 Converting the Appliance

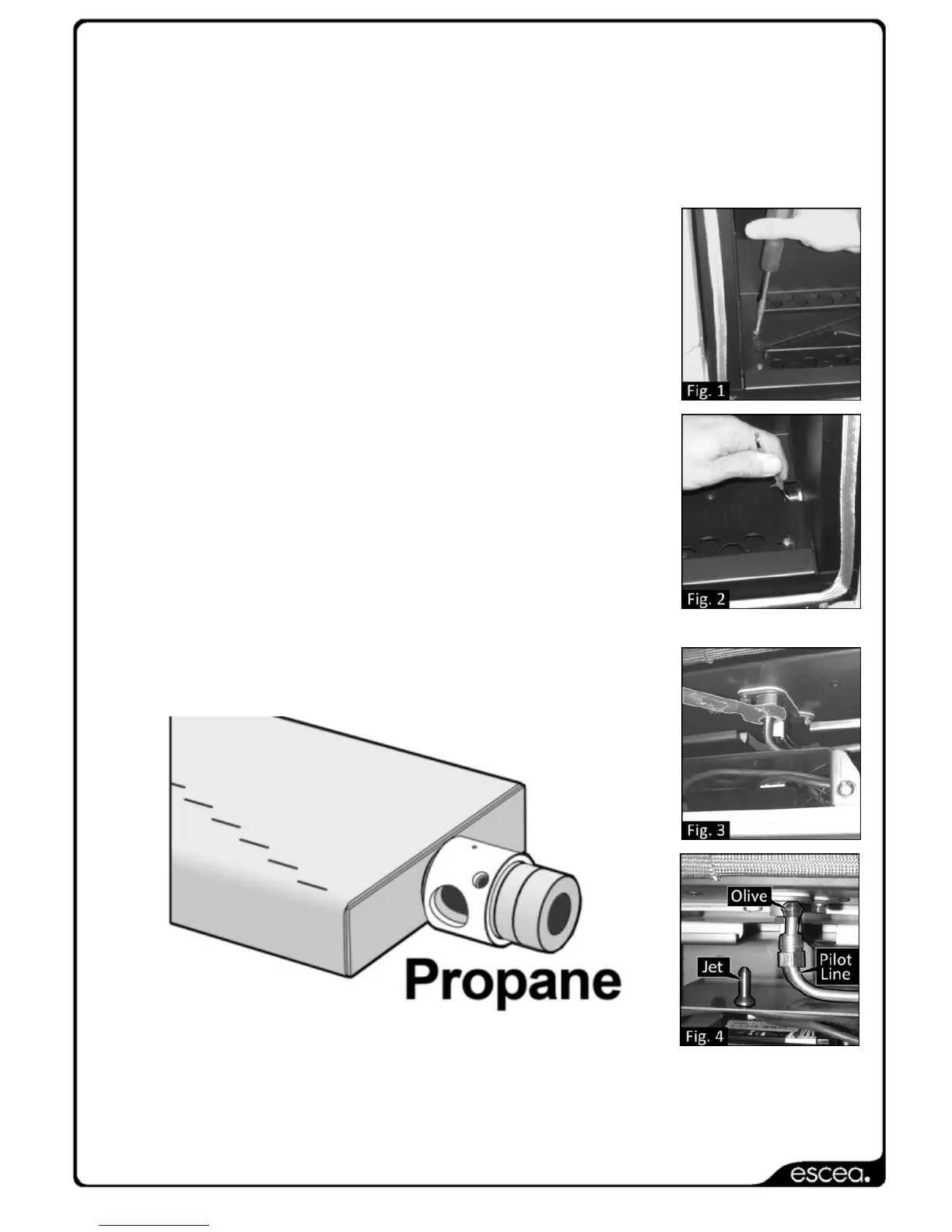

First you need to remove the burner by removing the
screw holding it in place on the left hand side of the
firebox (Fig. 1).
Then remove the 1.9mm burner jet (Fig. 2) and
replace it with the 1.2mm jet supplied in the kit.
Now remove the gas pipe fitting under the pilot (Fig.
3) and remove the No.48 pilot Jet (Fig. 4) and
replace it with the No.46 pilot jet supplied in the kit.
Replace the pilot line.
Adjust the Primary Aeration Collar on the burner to
the Propane position as shown in the diagram below,
then place the burner into position and screw it in
place.
