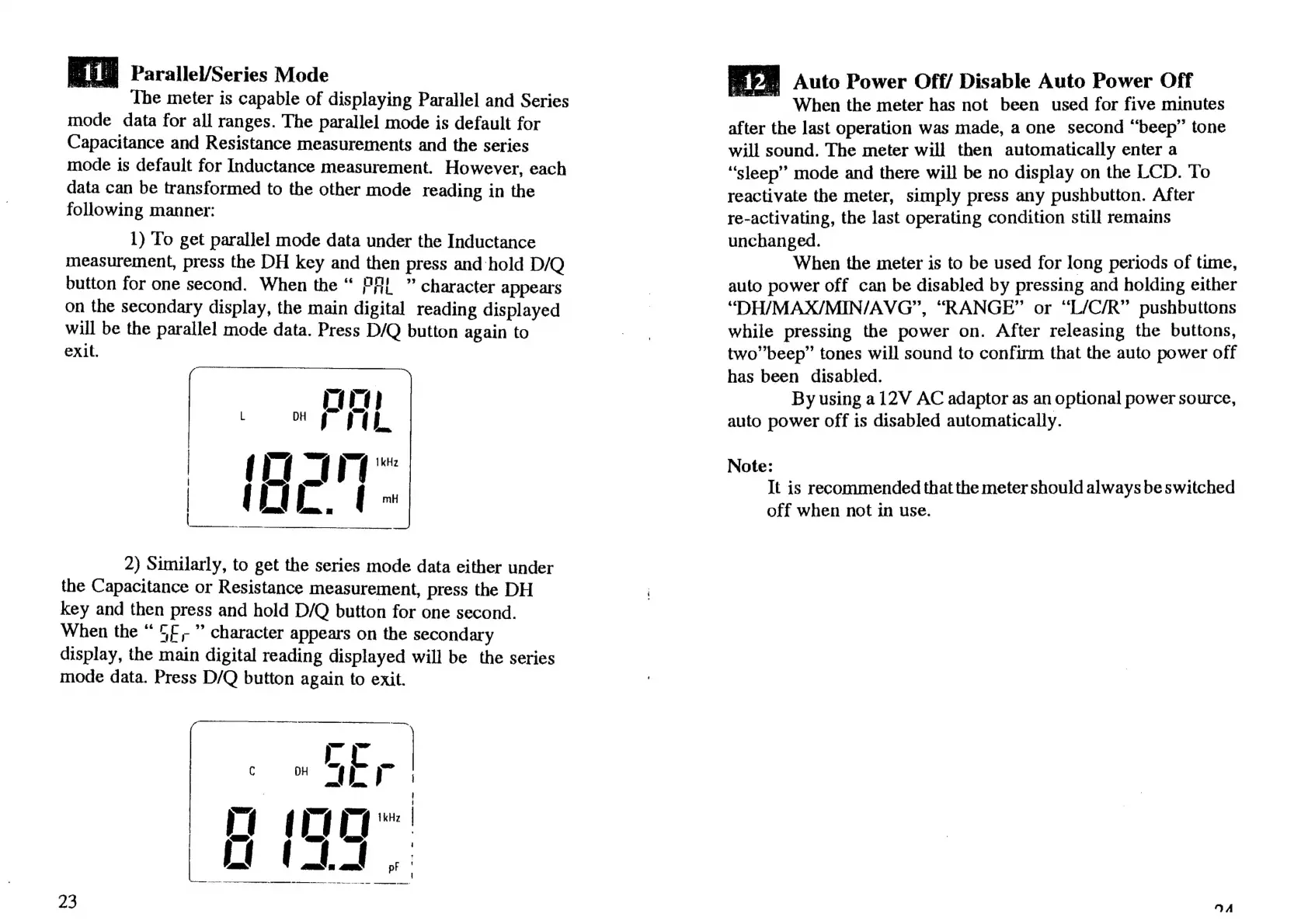

MIN Parallel/Series Mode
—
The
meter
is
capable
of
displaying
Parallel
and
Series
mode
data
for
all
ranges.
The
parallel
mode
is
default
for
Capacitance
and
Resistance
measurements
and
the
series
mode
is
default
for
Inductance
measurement.
However,
each
data
can
be
transformed
to
the
other
mode
reading
in
the
following
manner:
1)
To
get
parallel
mode
data
under
the
Inductance
measurement,
press
the
DH
key
and
then
press
and
hold
D/Q
button
for
one
second.
When
the
“
PAL
”
character
appears
on
the
secondary
display,
the
main
digital
reading
displayed
will
be
the
parallel
mode
data.
Press
D/Q
button
again
to
exit.
2)
Similarly,
to
get
the
series
mode
data
either
under
the
Capacitance
or
Resistance
measurement,
press
the
DH
key
and
then
press
and
hold
D/Q
button
for
one
second.
When
the
“
5E,-
”
character
appears
on
the
secondary
display,
the
main
digital
reading
displayed
will
be
the
series
mode
data.
Press
D/Q
button
again
to
exit.
SS as m
co
a DH IE} !
noo"
A Ee TT ANN ek me rrr ee
23
=~ Auto Power Off/ Disable Auto Power Off
~~ When the meter has not been used for five minutes
after the last operation was made, a one second “beep” tone
will sound. The meter will then automatically enter a
“sleep” mode and there will be no display on the LCD. To
reactivate the meter, simply press any pushbutton. After
re-activating, the last operating condition still remains
unchanged.
When the meter is to be used for long periods of time,
auto power off can be disabled by pressing and holding either
“DH/MAX/MIN/AVG”, “RANGE” or “L/C/R” pushbuttons
while pressing the power on. After releasing the buttons,
two”beep” tones will sound to confirm that the auto power off
has been disabled.
By using a 12V AC adaptor as an optional power source,
auto power off is disabled automatically.
Note:
It is recommended that the meter should always be switched
off when not in use.
