User’s Guide Introduction
A.7
Connecting your ESI phone

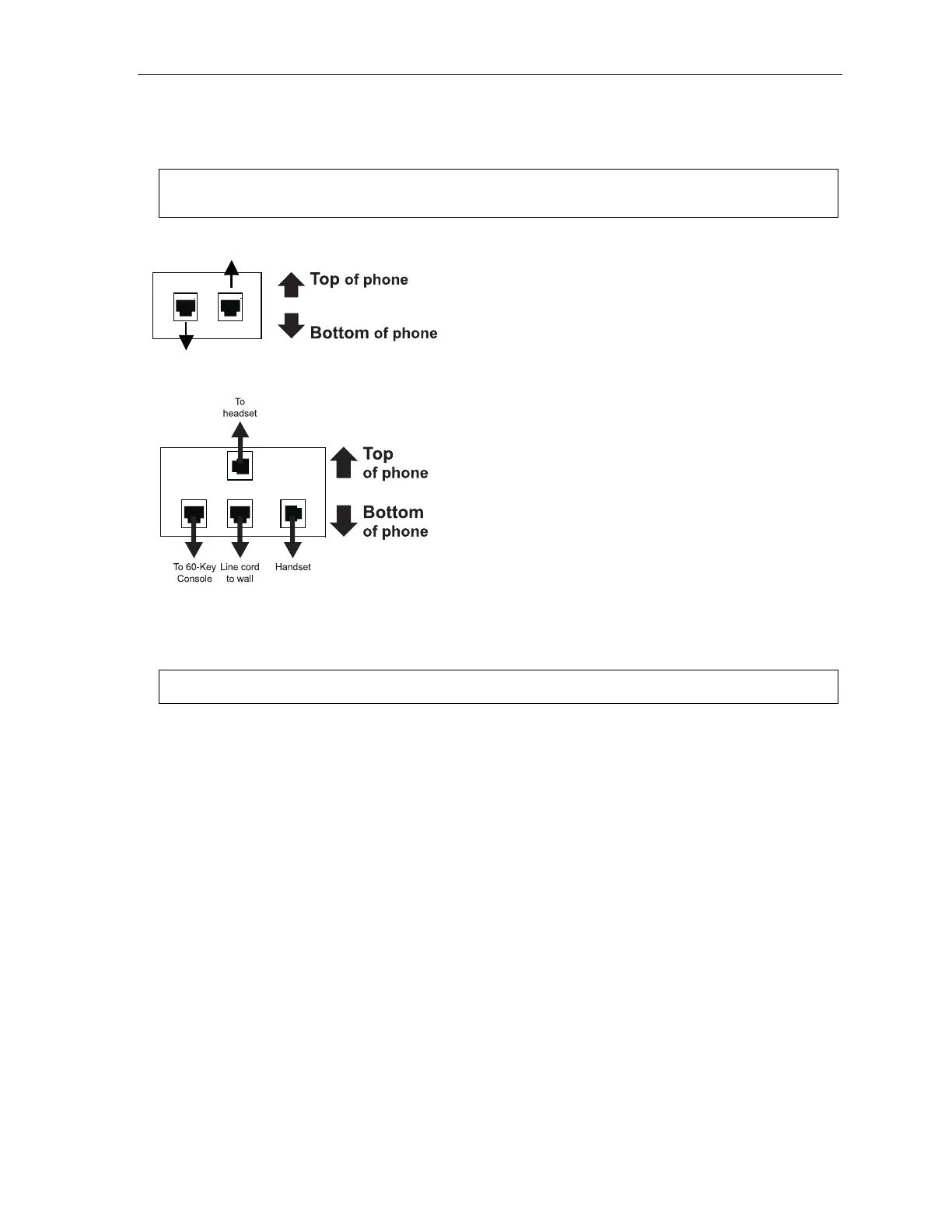

Use the diagram (below) to connect your ESI phone. The diagram represents the panel on the
phone’s underside.
Note: The “Top of phone” and “Bottom of phone” references in this diagram shows the correct vertical orientation
of the phone — i.e., the part with the display is the top.
12-Key Feature Phone
24-Key Feature Phone
• Connects like a basic phone.
• Handset plugs into right-side jack.
• Line cord plugs into left-side jack.
Connectors on bottom of
48-Key DIgital Feature Phone
48-Key Digital Feature Phone
In addition to how the 24-Key Feature Phone connects to
the handset and line cord, note that the 48-Key Digital
Feature Phone accepts a 60-Key Expansion Console
cable (included with each Console) which uses standard
RJ-11 telephone connectors.
Note: Use the wall mount hook (located under the handset) when the phone is in the furthest upright position.
Line cord
to wall
Handset
