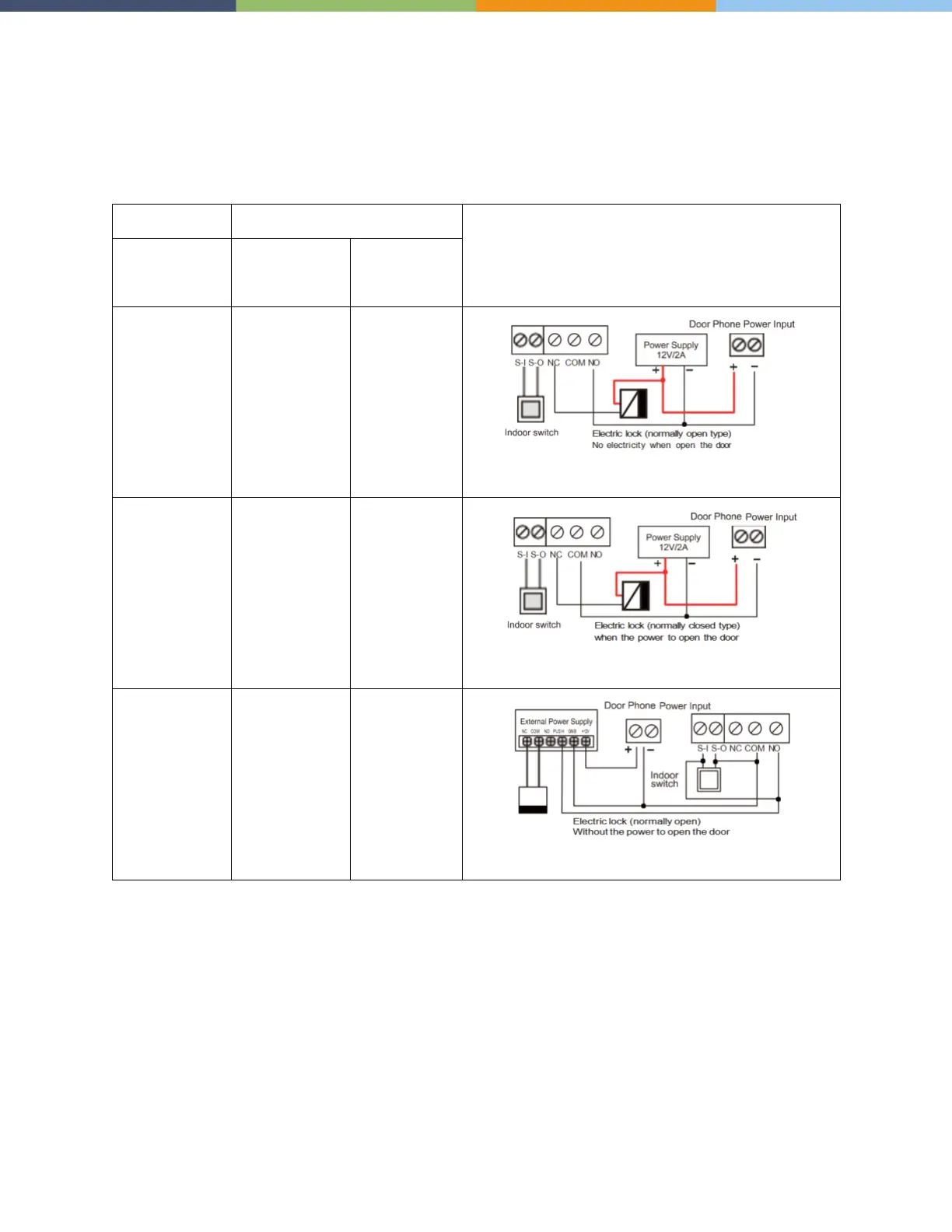

Page 4 of 13 0455-0322 Rev A
Wiring Instructions
NO: Normally Open Contact
COM: Common Contact
NC: Normally Close Contact.
Driving Mode Electric Lock Mode
Connections
Passive
No electrical
path when
open
Electrical
path when
open
Electric lock (normally open type)
No electrical path to open door.
Electric lock (normally closed type)
Electrical path to open door.
Electric lock (normally open)
No power to open door.
