ESI AC64v User Manual

Page 8 of 13 0455-0322 Rev A
Flush mounting
Step 1: Installation preparation
• Check the following contents:
o PM3*3mm screws x5
o PM3*4mm screws x5
o 6*30mm screws anchors x5
o KB3*10mm screws x3
o TA4*30mm screws x5
• Tools that may be required:
o Phillips screwdriver, hammer, RJ45 crimper
o Electric impact drill with an 8mm drill bit
o Drywall saw

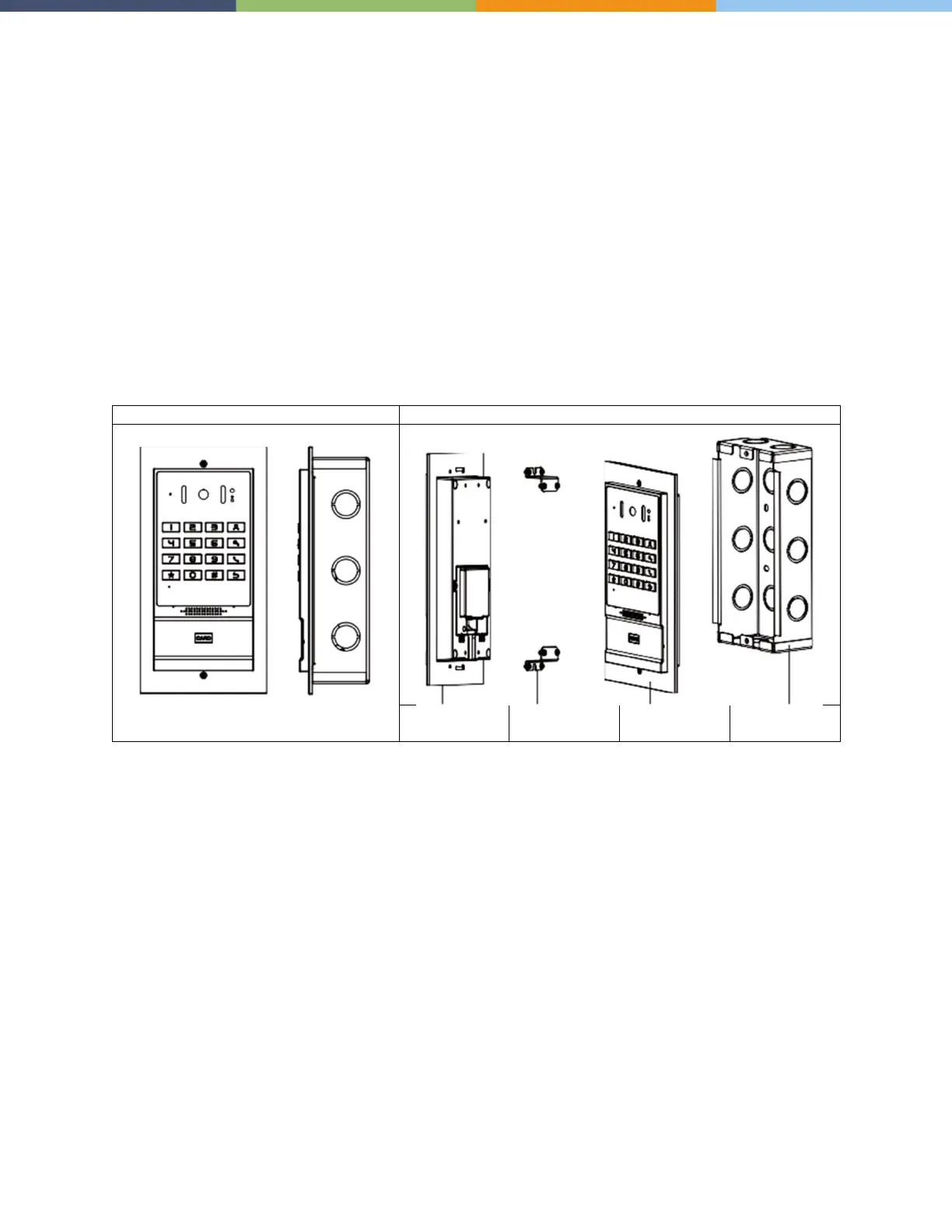

Flush mounting the device requires a box to be recessed into the wall as shown in the diagram below.
Finished Appearance
Exploded view
Decoration
panel
Small Stents
Access
Device
Wall box
